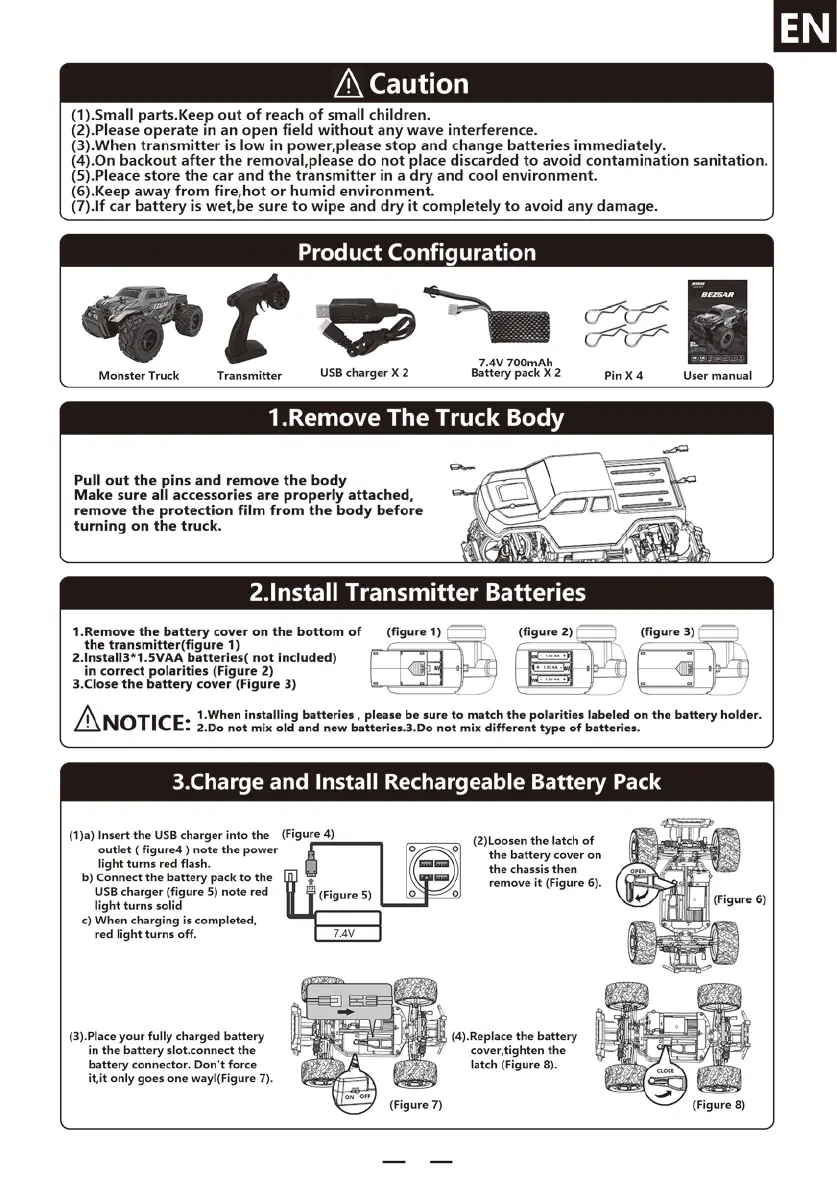

A Caution
(1).Smallparts.Keepout of reach of small children.
(2).Please operate In an open field without any wave interference.
(3).When transmitter is low in power,please stop and change batteries immediately.
(4).On backout after the removal,please do not place discarded to avoid contamination sanitation.
(5).PIeace store the car and the transmitter in a dry and cool environment.
(6).Keep away from fire,hot or humid environment.
(7).lf car battery is wet,be sure to wipe and dry it completely to avoid any damage.
Product Configuration
7.4V 700mAh
Monster Truck
Transmitter
USB charger X 2 Battery pack X 2
Pin x 4 User manual
1.Remove The Truck Body
Pull out the pins and remove the body
Make sure all accessories are properly attached,
remove the protection film from the body before
turning on the truck.
2.1nstall Transmitter Batteries
I.Remove the battery cover on the bottom of (figure 1)
the transmitter(figure 1)
2.1nsta113*1.5VAA batteries( not included)
in correct polarities (Figure 2)
3.Close the battery cover (Figure 3)
(figure 2) (figure 3)
ANOTICE•
1.When installing batteries . please be sure to match the polarities labeled on the battery holder.
• 2.00 not mix Old and new batteries.3.D0 not mix different type Of batteries.
3.Charge and Install Rechargeable Battery Pack
(l)a) Insert the USBcharger into the (Figure 4)
-ill
outlet ( figure4 ) note the power
light turns red flash.
b) Connect the battery pack to the
USB charger (figure 5) note red
light turns solid
c) When charging is completed.
red light turns off.
(3).Placeyour fully charged battery
in the battery slot.connect the
battery connector. Don•t force
it,it only goes one wayl(Figure 7).
(Figure 5)
0
(Figure 7)
(2)Loosen the latch Of
the battery Cover on
the chassis then
remove it (Figure 6).
(4).Replace the battery
cover, tighten the
latch (Figure 8).
(Figure 6)
(Figure 8)
