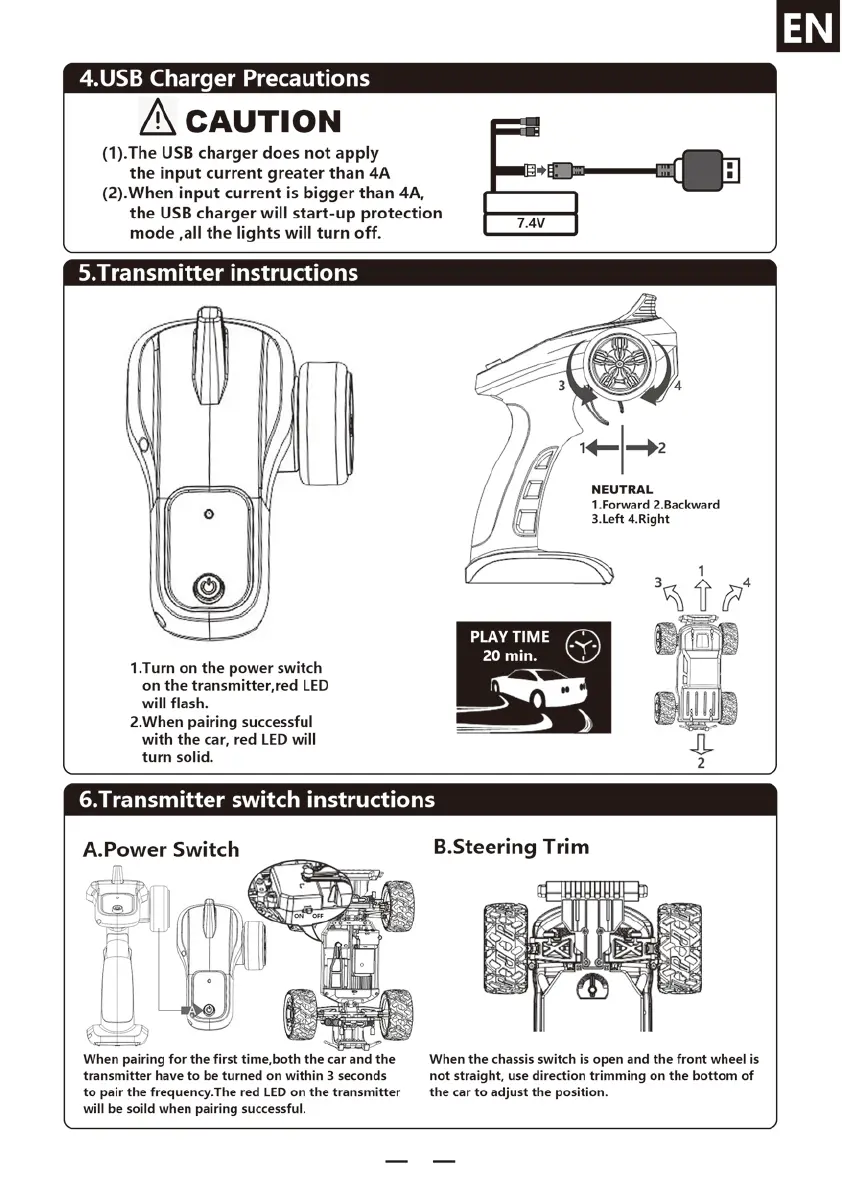

4.USB Charger Precautions
A CAUTION
(I). The USB charger does not apply
the input current greater than 4A
(2).When input current is bigger than 4A,
the USB charger will start-up protection
mode ,all the lights will turn off.
5.Transmitter instructions
I. Turn on the power switch
on the transmitter,red LED
will flash.
2.When pairing successful
with the car, red LED will
turn solid.
6.Transmitter switch instructions
7.4V
3
4
NEUTRAL
1-Forward 2.Backward
3.Left 4.Right
PLAY TIME
20 min.
2
A.Power Switch
When pairing for the first time.both the car and the
transmitter have to be turned on within 3 seconds
to pair the frequency.The red LED on the transmitter
will be soild when pairing successful.
B.Steering Trim
When the chassis switch is open and the front wheel is
not straight, use direction trimming on the bottom Of
the car to adjust the position.
—2—
