BFC srl JUNIOR EXTRA - INSTALLATION; MACHINE WITH CONNECTION TO THE MAINS WATER SUPPLY; MACHINE WITH MOTORPUMP

5. INSTALLATION
BeforeliftingthemainON/OFFswitch(3)lltherearwatertankunderthecupshelf 
(11).
1)Removethecoeemachinefromitsparckingandcheckthatithasnotbeendamaged.
2) Place the appliance on a stable top, close to the mains sockets and water line connections.
Checkthatthevoltageof yourmainssupplycorrespondstothatindicatedinthetechnicalspecica-
tions.

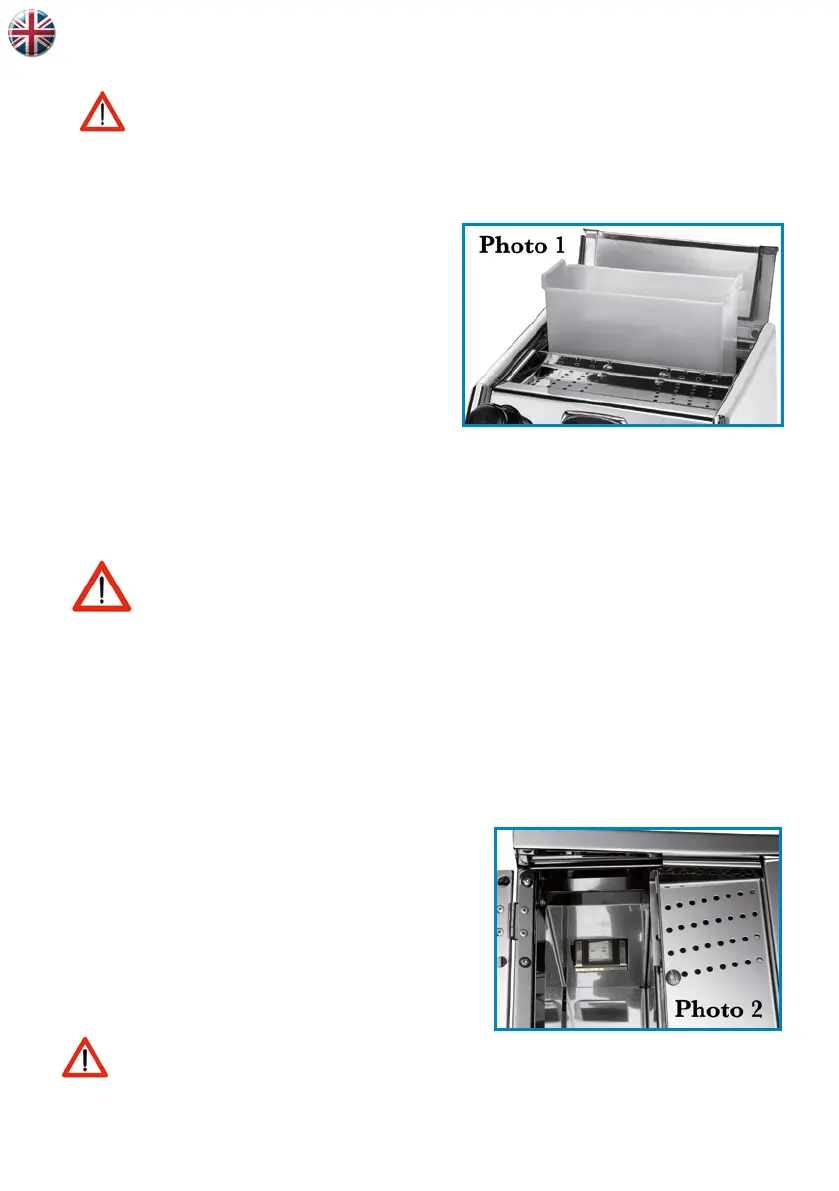

3) Remove the upper cover grid (11), take out the water
tank (located inside the machine) and rinse it (Photo 1).
4) Fill the tank with approx. 3 litres clean water, put it
back, connect the water softener and insert the small
silicone tubes. Close the upper cover grid (11) on the
machine.
5)Beforestart-upthettermustmakesurethemachine
has been properly connected to the electrical and earth-
ingsystemsinvolvedandchecktheeciencyof protec-
tion from direct contact.
In Europe connect the approved cord H05VV-F 3G 1.5 mm with the Schuko plug to the electricity
supply.
In USA-Canada connect the approved cord Type SJTO, rated 3x14 AWG, 300 V, 105°C with the
NEMA 5x15P plug to the electricity supply.
IT IS STRICTLY FORBIDDEN TO USE THE MACHINE WITHOUT EFFEC-
TIVE SAFE EARTHING.
If the machine is new, it is advisable that you let the water circulate through the system:
turnthewaterknob(2)andllajugwithatleast0.5litreswater.
5a. MACHINE WITH CONNECTION TO THE MAINS
WATER SUPPLY
If your machine is to be connected to the mains water supply call a specialized technician, who will
connect the machine inlet pipe to the water softener (not provided) using the hose (3/8’’) provided. A
pressure reducer must be installed. Switch on the water softener and check for any leaks.
5b. MACHINE WITH MOTORPUMP
1) Raise the cover cup holders (11), take out the internal
tank quick coupling (located into the machine) and rinse it
(Photo 1).
2) The machine is ready both for operation with internal
tank quick coupling and for operation with direct water
connection. Pressing the switching button (Photo 2) in posi-
tion I the machine is connected to the mains water supply,
while pressing it in position II the machine is connected to
the removable tank.
Each time you perform the above operation, verify that the main switch (3) is in the OFF
position.
For connection to the mains water supply, you call a specialized technician. The technician will con-
nect the machine inlet pipe to the water softener (not provided) using the hose (3/8’’) provided. Switch
13
