BFT DEIMOS BT A 600 - LED Indicators; Adjustment Procedure; Installation Test Procedure

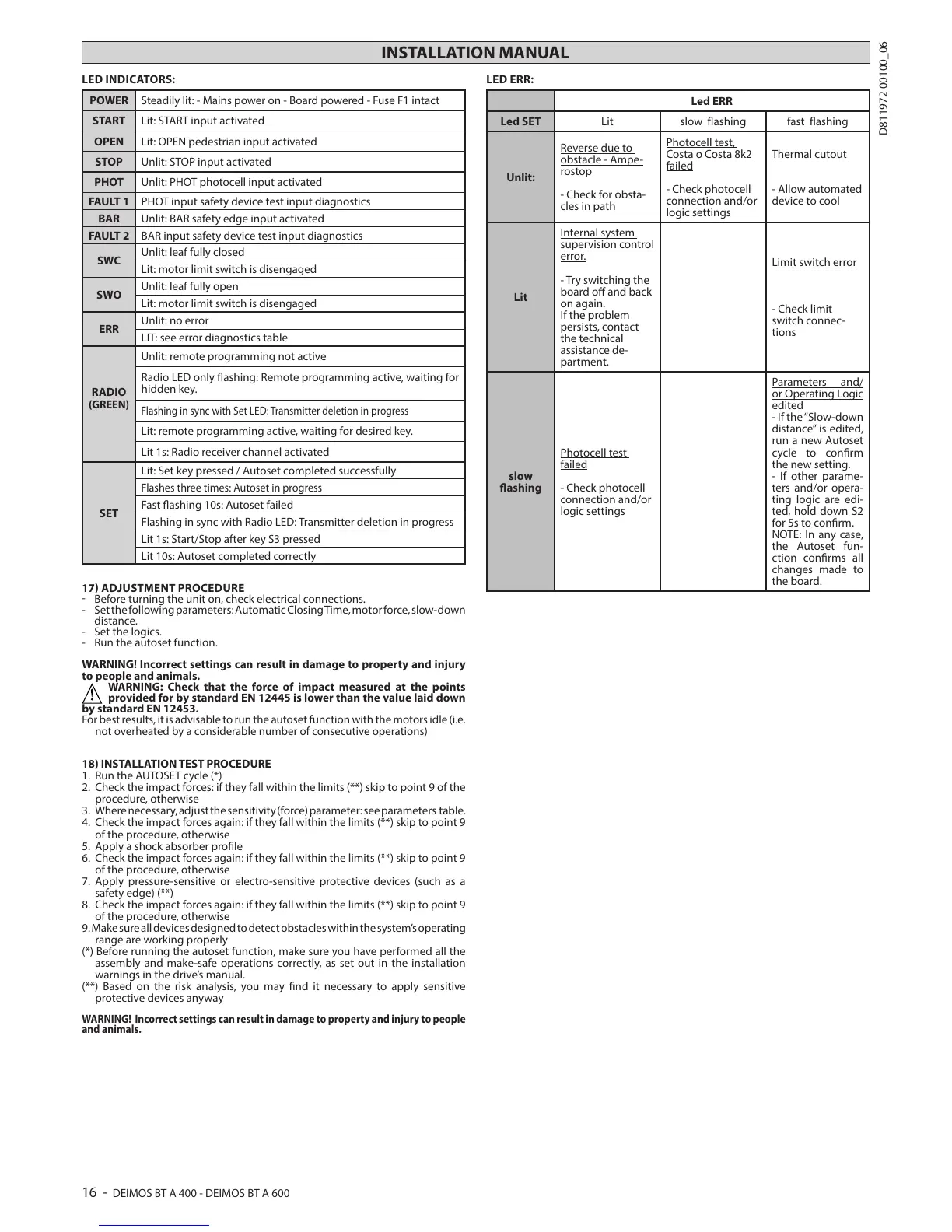

INSTALLATION MANUAL
LED INDICATORS:
POWER Steadily lit: - Mains power on - Board powered - Fuse F1 intact
START Lit: START input activated
OPEN Lit: OPEN pedestrian input activated
STOP Unlit: STOP input activated
PHOT Unlit: PHOT photocell input activated
FAULT 1 PHOT input safety device test input diagnostics
BAR Unlit: BAR safety edge input activated
FAULT 2 BAR input safety device test input diagnostics
SWC
Unlit: leaf fully closed
Lit: motor limit switch is disengaged
SWO
Unlit: leaf fully open
Lit: motor limit switch is disengaged
ERR
Unlit: no error
LIT: see error diagnostics table
RADIO
(GREEN)
Unlit: remote programming not active
Radio LED only ashing: Remote programming active, waiting for
hidden key.
Flashing in sync with Set LED: Transmitter deletion in progress
Lit: remote programming active, waiting for desired key.
Lit 1s: Radio receiver channel activated
SET
Lit: Set key pressed / Autoset completed successfully
Flashes three times: Autoset in progress
Fast ashing 10s: Autoset failed
Flashing in sync with Radio LED: Transmitter deletion in progress
Lit 1s: Start/Stop after key S3 pressed
Lit 10s: Autoset completed correctly
17 ADJUSTMENT PROCEDURE
 Before turning the unit on, check electrical connections.
- Set the following parameters: Automatic Closing Time, motor force, slow-down
distance.
- Set the logics.
- Run the autoset function.
WARNING! Incorrect settings can result in damage to property and injury
to people and animals.
WARNING: Check that the force of impact measured at the points
provided for by standard EN 12445 is lower than the value laid down
by standard EN 12453.
For best results, it is advisable to run the autoset function with the motors idle (i.e.
not overheated by a considerable number of consecutive operations)
18) INSTALLATION TEST PROCEDURE
1. Run the AUTOSET cycle (*)
2. Check the impact forces: if they fall within the limits (**) skip to point 9 of the
procedure, otherwise
3. Where necessary, adjust the sensitivity (force) parameter: see parameters table.
4. Check the impact forces again: if they fall within the limits (**) skip to point 9
of the procedure, otherwise
5. Apply a shock absorber prole
6. Check the impact forces again: if they fall within the limits (**) skip to point 9
of the procedure, otherwise
7. Apply pressure-sensitive or electro-sensitive protective devices (such as a
safety edge) (**)
8. Check the impact forces again: if they fall within the limits (**) skip to point 9
of the procedure, otherwise
9. Make sure all devices designed to detect obstacles within the system’s operating
range are working properly
(*) Before running the autoset function, make sure you have performed all the
assembly and make-safe operations correctly, as set out in the installation
warnings in the drive’s manual.
(**) Based on the risk analysis, you may nd it necessary to apply sensitive
protective devices anyway
WARNING! Incorrect settings can result in damage to property and injury to people
and animals.
LED ERR:
Led ERR
Led SET Lit slow ashing fast ashing
Unlit:
Reverse due to
obstacle - Ampe-
rostop
- Check for obsta-
cles in path
Photocell test,
Costa o Costa 8k2
failed
- Check photocell
connection and/or
logic settings
Thermal cutout
- Allow automated
device to cool
Lit
Internal system
supervision control
error.
- Try switching the
board o and back
on again.
If the problem
persists, contact
the technical
assistance de-
partment.
Limit switch error
- Check limit
switch connec-
tions
slow
ashing
Photocell test
failed
- Check photocell
connection and/or
logic settings
Parameters and/
or Operating Logic
edited
- If the “Slow-down
distance” is edited,
run a new Autoset
cycle to conrm
the new setting.
- If other parame-
ters and/or opera-
ting logic are edi-
ted, hold down S2
for 5s to conrm.
NOTE: In any case,
the Autoset fun-
ction conrms all
changes made to
the board.
16 - DEIMOS BT A 400 - DEIMOS BT A 600
D811972 00100_06
