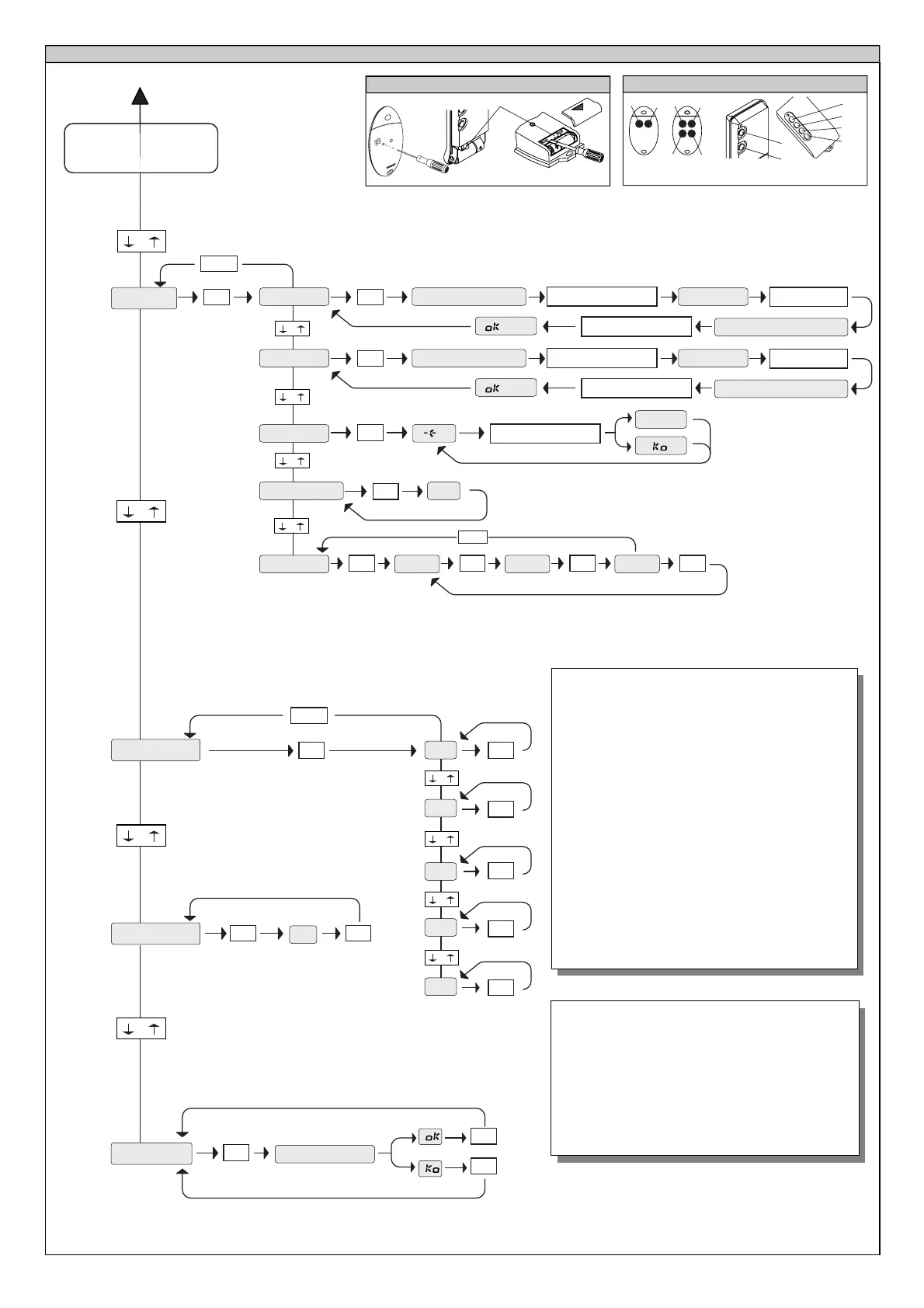

AUTOSET MENU
It automatically sets the motor torque.
WARNING! During the autoset phase, the obstacle
detection function is not optimised; the installer must
check the operator movement and prevent persons
and things from coming near or stopping within the
operating range.
. . . . . .
OK
AUTOset
OK
OK
language
RADIO
-
+
-
+
OK
+/-
Press P1 (pushbutton) on radio
control device – see Fig. 1A
Press the required T (key) on
radio control device – see Fig. 2A
Press the required T (key) on
radio control device – see Fig. 2A
Release P1 on radio
control device
ADD start hidden button release
desired button
01
PRG.
READ
OK
OK
OK
ERASE 64
-
+
-
+
Press P1 (pushbutton) on radio
control device – see Fig. 1A
Press the required T (key) on
radio control device – see Fig. 2A
Release P1 on radio
control device
ADD 2ch hidden button release
desired button
01
OK
-
+
01 t1
COD RX
OK
1A9C
OK
22FD
OK
01
OK
-
+
+/-
RADIO MENU
ADD - Allows you to add one key of a radio control
device to the receiver memory; after storage it displays
a message showing the receiver number in the
memory location (from 01 to 64).
Add Start button – associates the required key to
Start command
Add 2ch button – associates the required key to 2nd
radio channel
READ - Checks one key on a receiver, if stored it
displays a message showing the receiver number in
the memory location (from 01 to 64), and the key
number (T1, T2, T3 or T4).
ERASE 64
WARNING! Completely removes all memorised radio
control devices from the receiver memory.
COD RX
Displays the receiver code.
