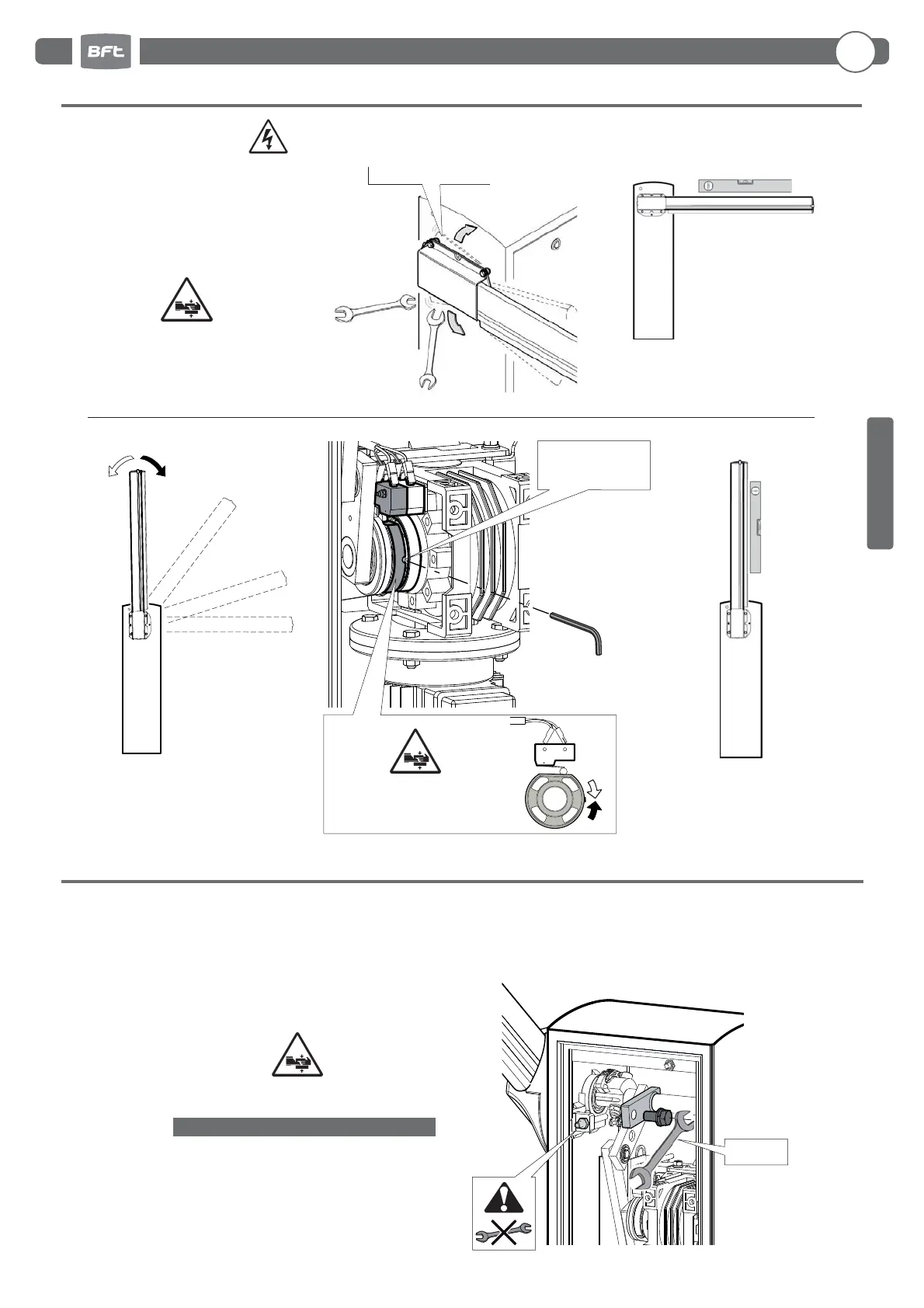

2.5 ALIGN THE ARM
Adjustable arm holder
Electrically connect the control unit (see point 2.8)
TO ALIGN THE BOOM TO THE FLOOR LINE
(HORIZONTAL POSITION) SET THE POSITION
OF THE ADJUSTABLE BOOM HOLDER
2 x 13mm
Give the “START” command
to position the arm holder
vertically
Give the “START” command
to position the arm holder
horizontally
3 mm
Opening
microswitch cam
Check that the bar is
in horizontal position
Check that the bar is
in vertical position
TO SET THE BOOM IN VERTICAL
POSITION ADJUST THE OPEN LIMIT
SWITCH CAM.
2.6 BALANCING THE ARM
WITH MOUNTED BOOM ONLY
Remove the lever xing screw
Always disconnect the electricity
before attempting any work on the system.
24 mm
