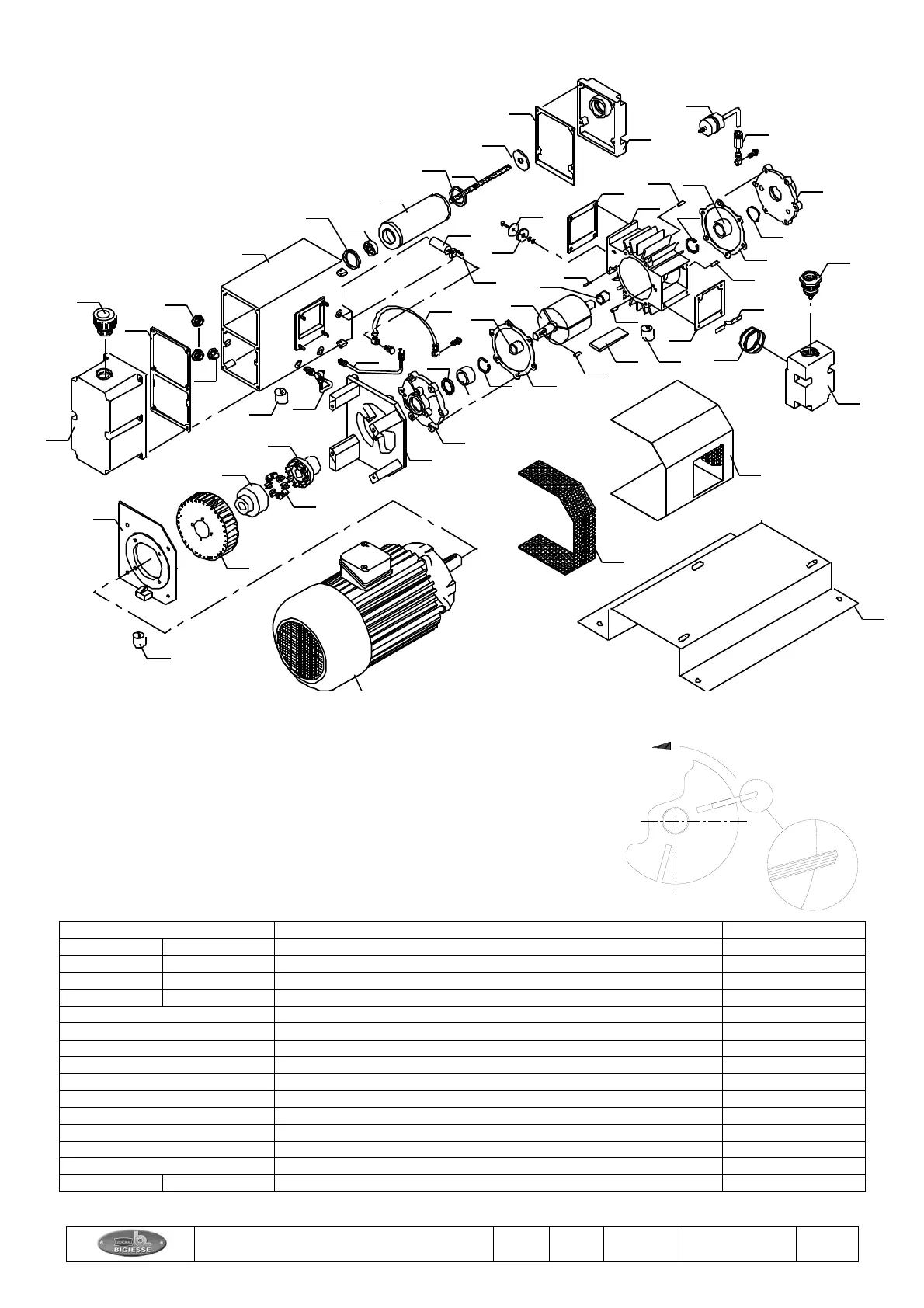

POMPA – PUMP 40 PBO - M / 60 PBO – M
44
43
3
2
4
5
7
6
2
45
8
9
1
46
47
10
14
13
15
49
14
18
16
17
2
24
26
25
18
13
20
21
28
27
51
50
52
12
11
18
19
29
32
23
22
33
34
35
31
30
48
36
37
38
36
39
40
42
41
12
11
18
Montaggio palette – Blades assembling
KIT RICAMBI - SPARE PARTS
Denominazione - Description
Posizione - Position
40 PBO-M
60 PBO-M
34032
34033
kit palette – blades kit
17
34101
34102
kit guarniz. mandata – delivery gasket kit
29 – 30 – 31
35127
35135
kit guarnizioni – gaskets kit
10 – 13 – 24 –29
34197
kit tappi oblò olio – kit caps oil sight glasses
40 – 41 – 44
34210
livellostato olio - oil floater
34237
kit tubi olio - oil pipes kit
45 – 46 – 47
34355
zavorra –ballast
22 – 23
34500
kit antivibranti - antivibration kit
2
35627
kit cuscinetti – bearings kit
11 - 14
36460
giunto trasco con ventola – joint with impeller
4 - 5 – 6 – 7
37117
kit guarnizioni aspirazione – suction gaskets kit
24 – 25 – 26 – 28
40740
Kit cartuccia disoliante –oil remover cartridge kit
33 – 36 – 37
46460
tassello giunto - insert for coupling
6
50040
50060
kit manutenzione completo - complete maintenance kit
