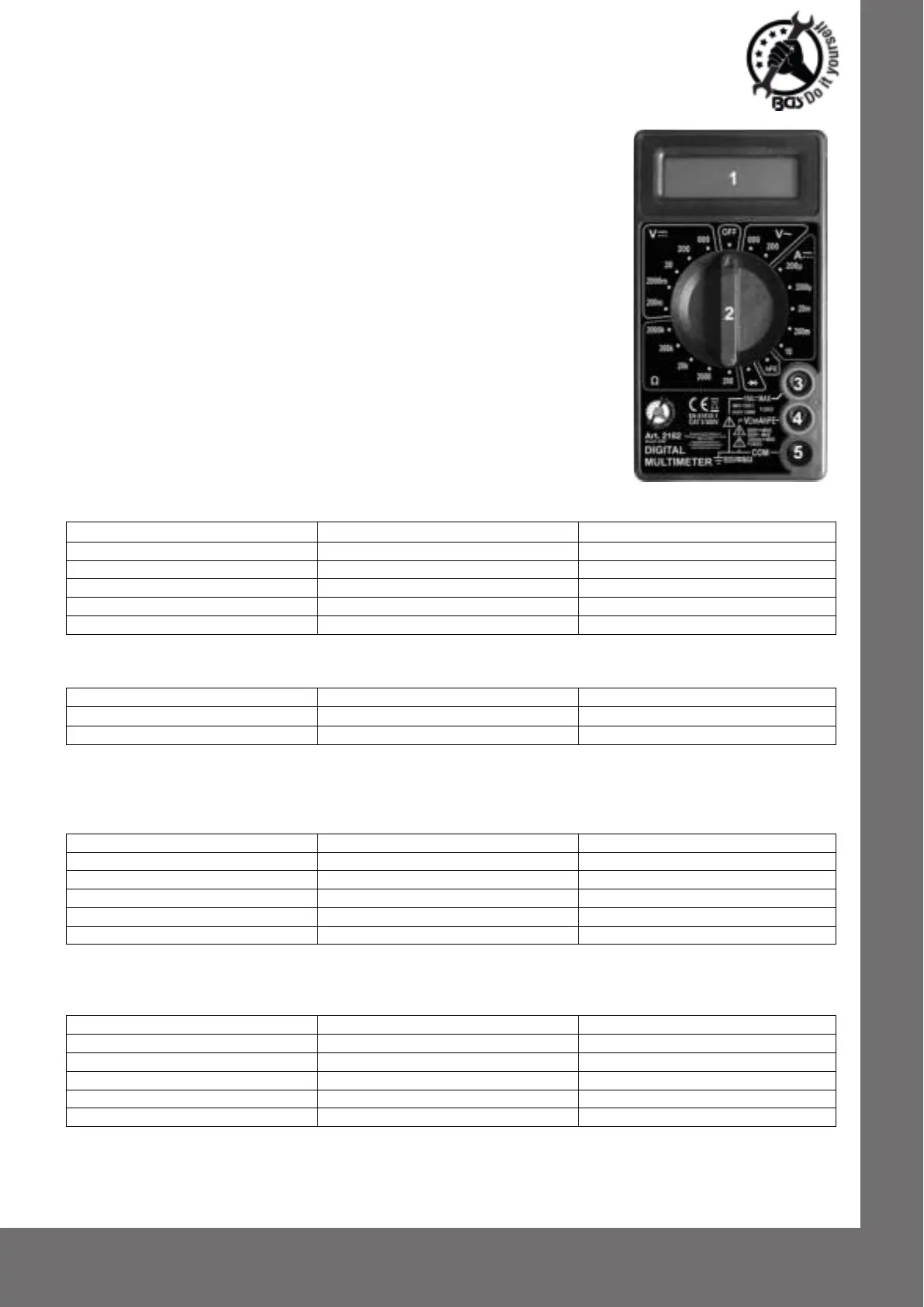

FRONT PANEL DESCRIPTION
1 DISPLAY 3 ½ digit, 7 segment, 0.5” high LCD
2 FUNCTION AND RANGE SWITCH
This switch is used to select the function and desired range
as well as to turn on the instrument. To extend the life of this
battery, the switch should be in the “OFF” position when the
instrument is not in use.
3 “10A” JACK
Plug in connector to red (positive) test lead for 10A
measurement.
4 „VΩmA“ JACK
Plug in connector for red (Positive) test lead for all voltage
and resistance and current (except 10A) measurements..
5 „COM“ JACK
Plug in connector for black (negative) test lead.
DC VOLTAGE
Range
Resulution
Accuracy
200 mV
100 µV
± 0.5% + 3 digit
2000 mV
1 mV
± 1.0% + 5 digit
20 V
10 mV
±1.0% + 5 digit
200 V
100 mV
±1.0% + 5 digit
600 V
1 V
±1.2% + 5 digit
OVERLOAD PROTECTION: 220V rms AC for 200mV range and 600V DC or 600V rms for all ranges.
AC VOLTAGE
Range
Resulution
Accuracy
200 V
100 mV
±1.2% + 10 digit
600 V
1 V
±1.2% + 10 digit
RESPONSE: Average responding, calibrated in rms of a sine wave.
FREQUENCY RANGE: 45Hz ~ 450Hz
OVERLOAD PROTECTION: 600V DC or 600V rms for all ranges.
DC CURRENT
Range
Resulution
Accuracy
200 µA
100 nA
±1.8% + 2 digit
2000 µV
1 µA
±1.8% + 2 digit
20 mA
10 µA
±1.8% + 2 digit
200 mA
100 µA
±2.0% + 2 digit
10 A
10 mA
±2.0% + 10 digit
OVERLOAD PROTECTION: 0.5A/600V and 10A/600V fuse
MEASURING VOLTAGE DROP: 200mV
RESISTANCE
Range
Resulution
Accuracy
200 µA
100 nA
±1.8% + 2 digit
2000 µV
1 µA
±1.8% + 2 digit
20 mA
10 µA
±1.8% + 2 digit
200 mA
100 µA
±2.0% + 2 digit
10 A
10 mA
±2.0% + 10 digit
MAXIMUM OPEN CIRCUIT VOLTAGE: 3.0V.
OVERLOAD PROTECTION: 15 seconds maximum 220Vrms.
