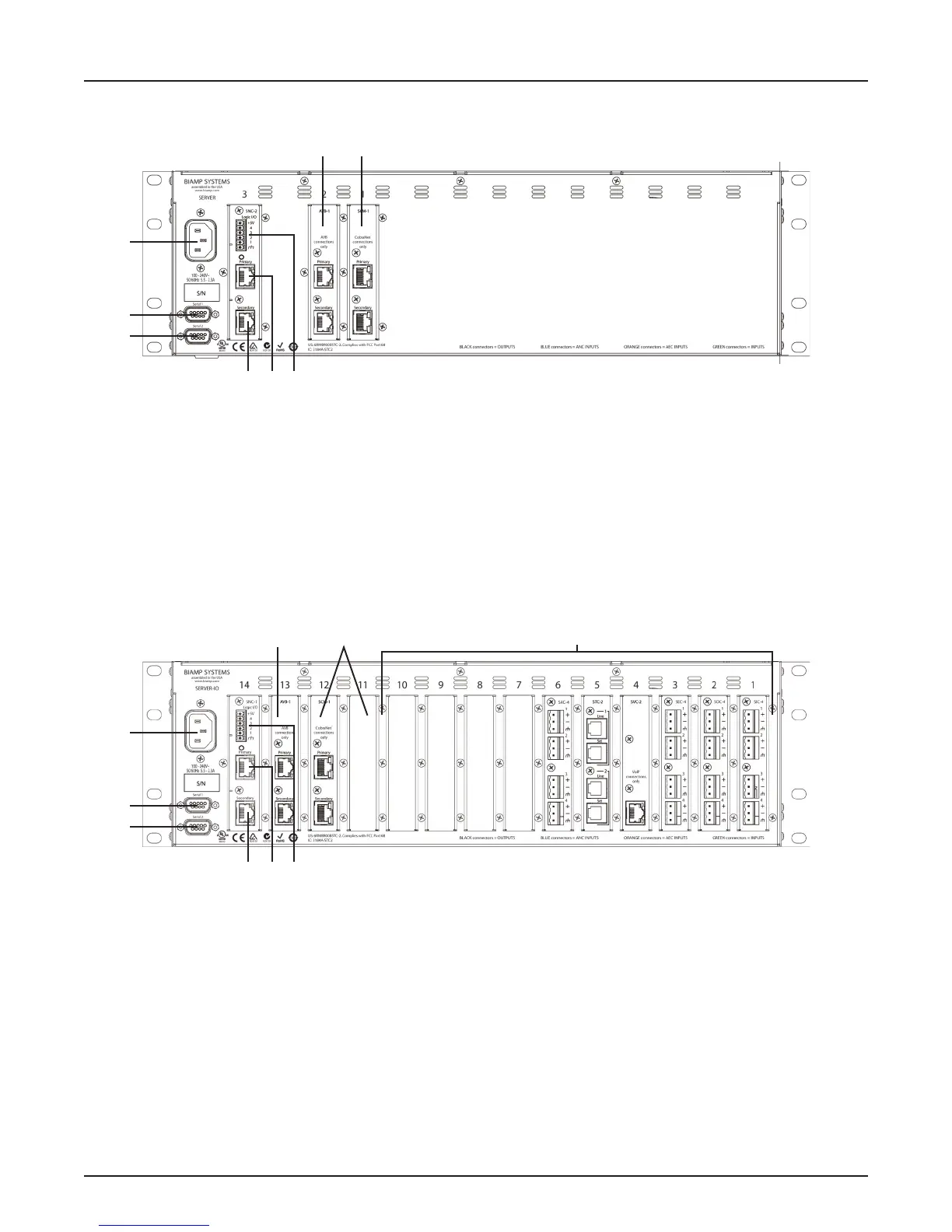

TESIRA SERVER & TESIRA SERVER-IO REAR PANEL
TESIRA SERVER
1 – AC Power inlet
2 – Serial Port 1
3 – Serial Port 2
4 – Secondary Ethernet control port (RJ-45)
5 – Primary Ethernet control port (RJ-45)
6 – GPIO connections
7 – Slot 2; always loaded with AVB-1 digital audio networking card for AVB
8 – Slot 1; optional slot that can be factory loaded or eld loaded with any server card
TESIRA SERVER-IO
1 – AC Power inlet
2 – Serial Port 1
3 – Serial Port 2
4 – Secondary Ethernet control port (RJ-45)
5 – Primary Ethernet control port (RJ-45)
6 – GPIO connections
7 – Slot 13; optional slot that can be factory loaded or led loaded with AVB-1 digital audio networking card
for AVB or SCM-1 digital audio networking card for CobraNet
8 – Slot 12 and Slot 11; optional slot that can be factory loaded or eld loaded with SCM-1 digital audio
networking card for CobraNet, any telephone card or any analog audio card
9 – Slot 10 through Slot 1; optional slots that can be factory loaded or eld loaded with any telephone card
(STC-2, SVC-2) or any analog audio card (SIC-4, SEC-4, SAC-4 or SOC-4).
7
7
8
8 9
1
1
2
2
3
3
4
4
5
5
6
6
