BIFFI WGR 400 - Page 23

WGR – Worm Gear Reducer
Instruction and operating manual
© Copyright by BIFFI Italia. All right reserved MAN 684/Rev 5 Page 23

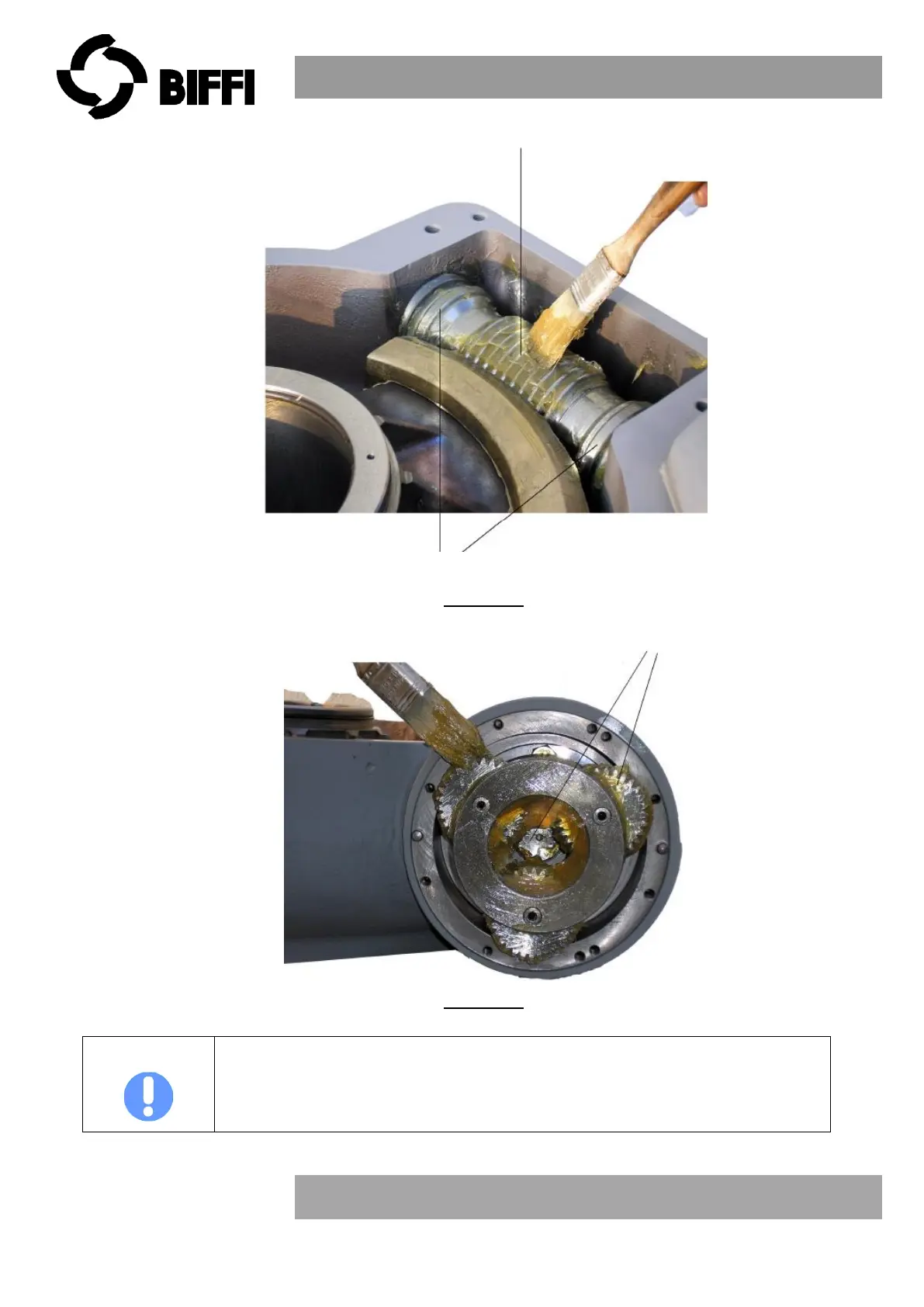

Picture 11
Picture 12
Important
Before reassembling the worm gearbox, the flexoid gasket and the o-ring
(please see Para 8.1) must be replaced.
Ball bearings to be greased if necessary
Worm screw to be greased
Gears to be greased if necessary
