BEFORE INSTALLATION
Unpack your fan and check contents. You should have the following:

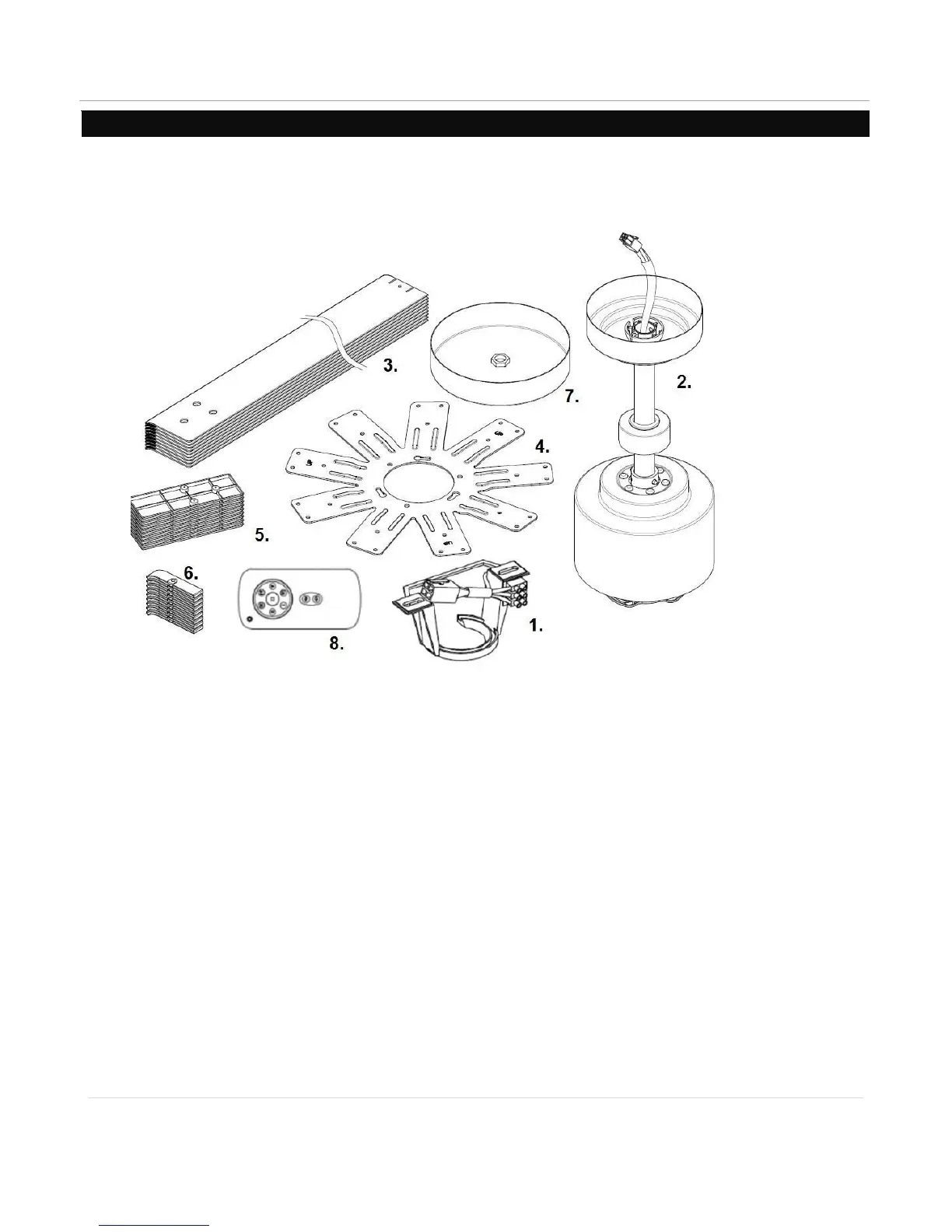

Fig. 1
1 Mounting bracket x 1 9 Extra motor screws x 1 (not shown)
2 Fan assembly with hanger cover,
down rod,
canopy cover and canopy x 1
10 Blade screws x 28 (not shown)
3 Blades x 9 11 Blade bracket kit screws x 10 (not shown)
4 Blade holder x 1 12 Wooden screws x 2 (not shown)
5 Blade bracket kit x 9 13 Balancing kits x 1 set (not shown)
6 Blade decorative kit x 9 14 Screws for remote holder x 2 (not shown)
7 Bottom cover x 1 15 12V Battery for remote x 1 (not shown)
8 Remote transmitter with holder x 1 set
