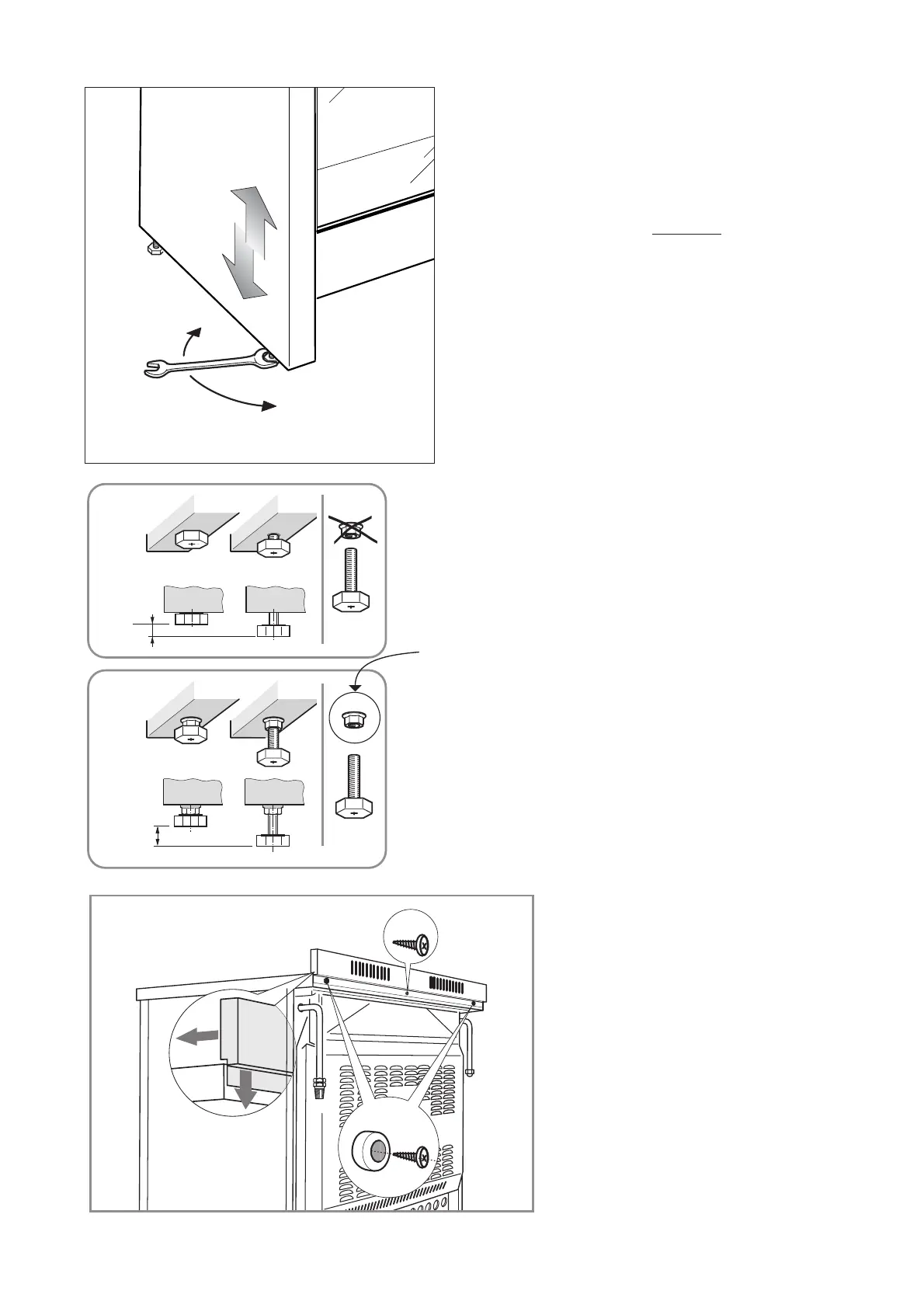

LEVELLING THE COOKER
The cooker is equipped with 4 LEVEL-
LING FEET and may be levelled by
screwing or unscrewing the feet with a
spanner (fig. 9.2).
It is important to observe
the prescrip-
tions of figures 9.3 - 9.4.
A
B
A
B
+8
mm
+8
0
mm
+35
mm
Supplied with the appliance
in a separate kit
ASSEMBLING THE BACKGUARD
• Remove the two spacers “A” and the
screw “B” from the rear of the cook-
top.
• Assemble the backguard as shown in
figure 9.5 and fix it by screwing the
central screw “B” and the spacers “A”.
Fig. 9.5
