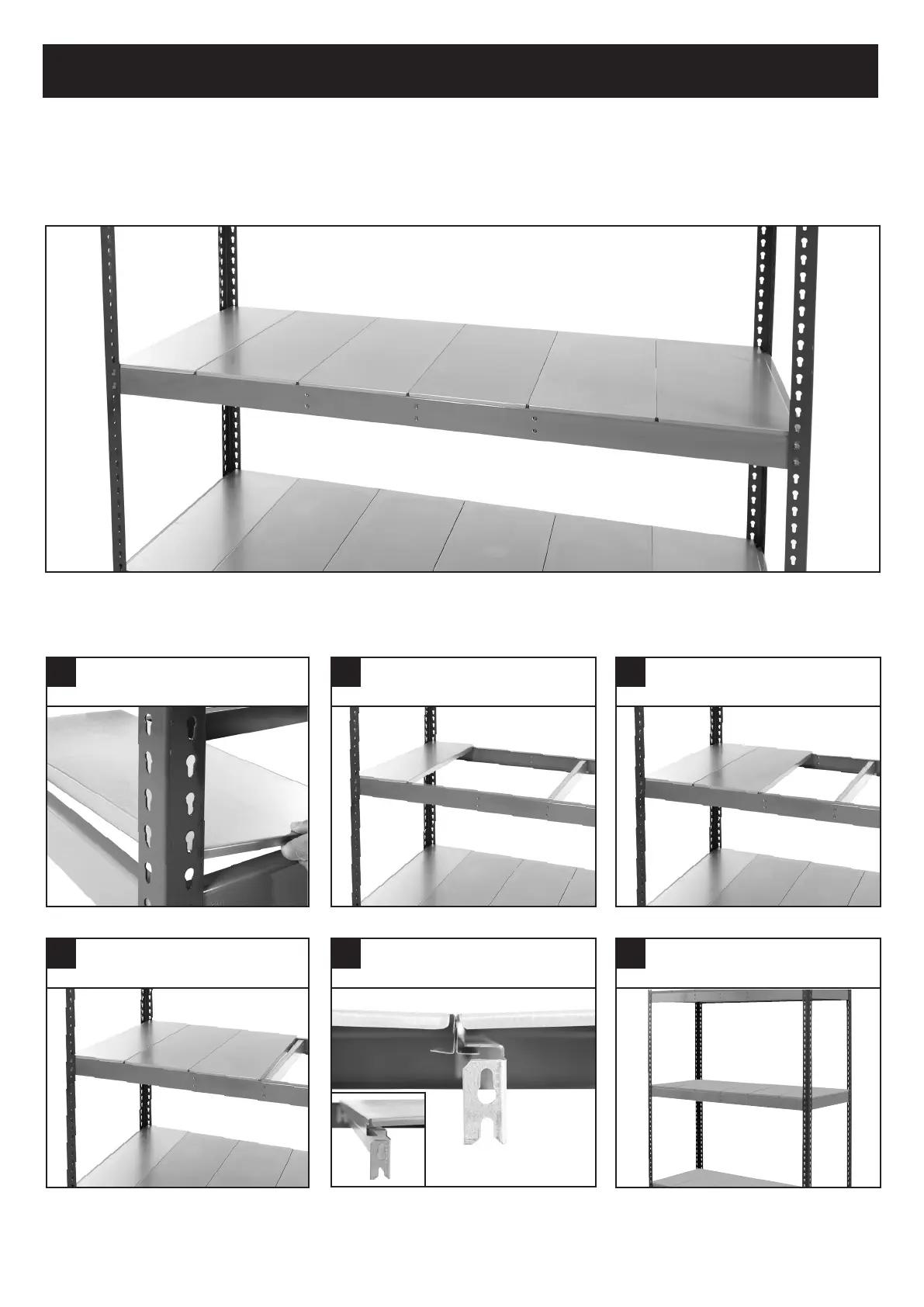

Guide to Assembly & Usage
BiG400/800 Steel Shelf Panel
1 2
3
4 5
6
On certain widths of shelving, if may be
necessary to hook one of the panels
under the centre support beam,as below
Continue adding panels to the end of
the shelf frame
Slot the single 260mm wide (narrower)
panel onto one end of the shelf frame
Place a 305mm wide panel alongside it
The steel panels sit on top of the beams
and inside the uprights, leaving a gap at
the end of the product
Continue to add 305mm panels up to
the centre support beam
Shelving is safe when used responsibly. If in doubt, contact the supplier. Note: Illustrations not to scale
