13 14 15
16
For tall or narrow shelving we
recommend wall xing where possible.
Use Wall Ties towards the top of each
bay and x with suitable screws and
plugs (not provided).
BiG400/BiG800
These load charts relate to shelving layouts with the following specications:
n
Maximum upright height = 3048 mm
n Single bays and multiple linked bays with a minimum of 3 levels per bay
n Similar distances (height) between levels
n Bays are positioned on a level oor
For any other layouts, please refer to your supplier for detailed loading capacities
Shelf load capacities
Maximum permitted shelf capacities are based on uniformly distributed loads (UDL). Please note that the bay capacity may limit the maximum load per shelf:

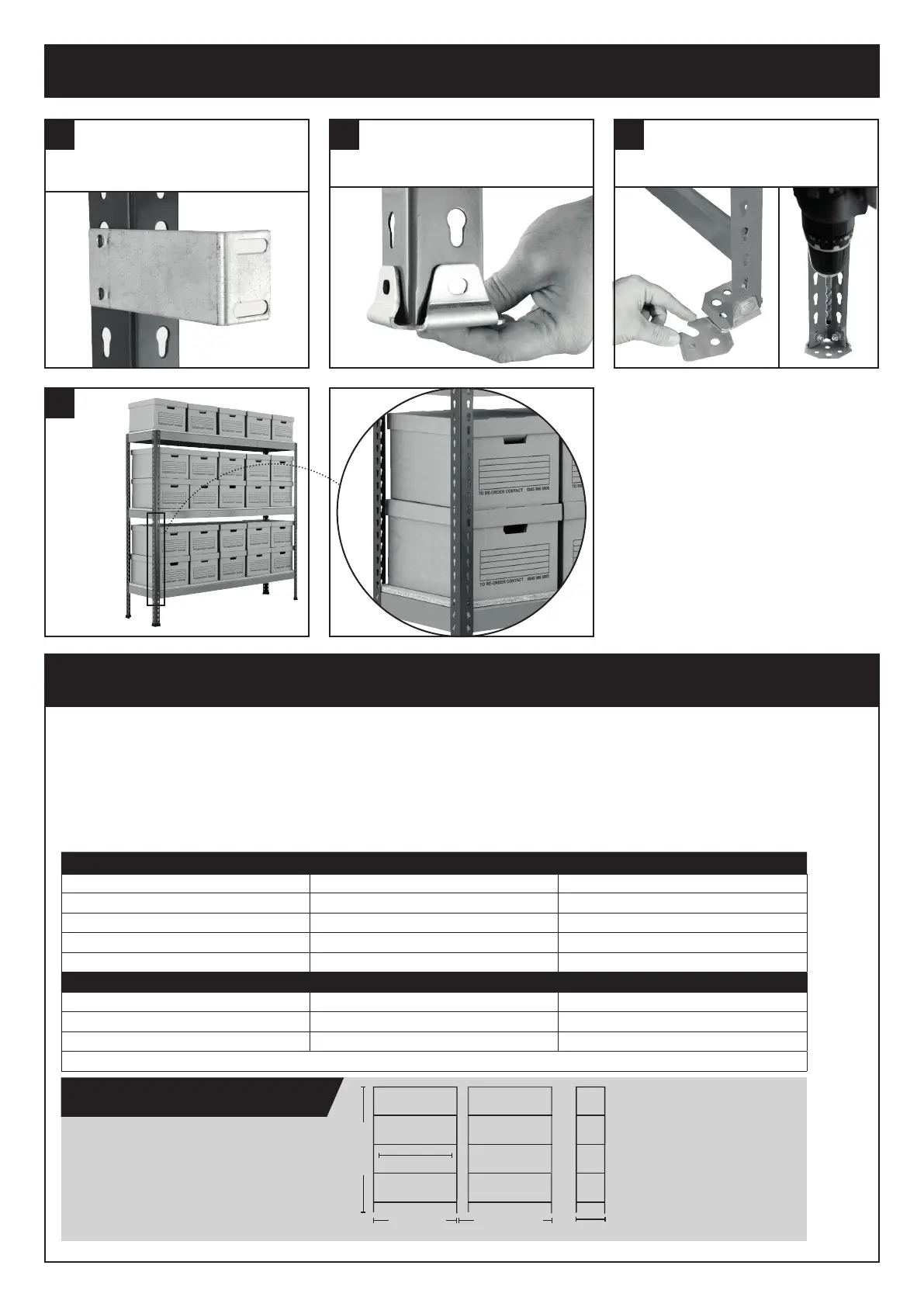

Assembly - BiG400/BiG800
Loading information
Optional steel feet are also available
with levelling shims. Simply bolt each
foot to the bottom hole in the upright
using nuts, washers and bolts provided.
Position the racking and add shims
under feet to level if needed. Feet can
also be bolted to the oor using 70mm
sleeve anchors.
For archive
storage
racks,
allow 16
clear holes
between
beams for
double
stacked
standard
document
boxes and
18 clear
holes for HD
boxes.
Shelf Width mm BiG400 Load Capacity per shelf BiG800 Load Capacity per shelf
1220 400kg 590kg
1525 400kg 800kg
1830 400kg 610kg
2135 400kg 580kg
2440 400kg 500kg
Maximum load per bay BiG400 BiG800
Up to 1980mm high 1600kg 3200kg
Up to 2440mm high 1320kg 2800kg
Up to 3050mm high - 2500kg
Capacities are common for all standard shelf depths
IF YOU ARE IN ANY DOUBT REGARDING LOAD CAPACITIES, PLEASE CONTACT YOUR SUPPLIER
Note: Illustrations not to scale
BiG400/BiG800 Fitting Guide
Please use these external dimensions
when planning your shelving space:
H = Nominal height
W = Nominal width
D = Nominal depth
C = Clear access between uprights
INITIAL SHELVING
BAY
C=W-85mm
H
+
15mm
SIDE
VIEW
D
+
12mm
W
+
12mm
W
+
19mm
NEXT SHELVING
BAY
Quick Reference
