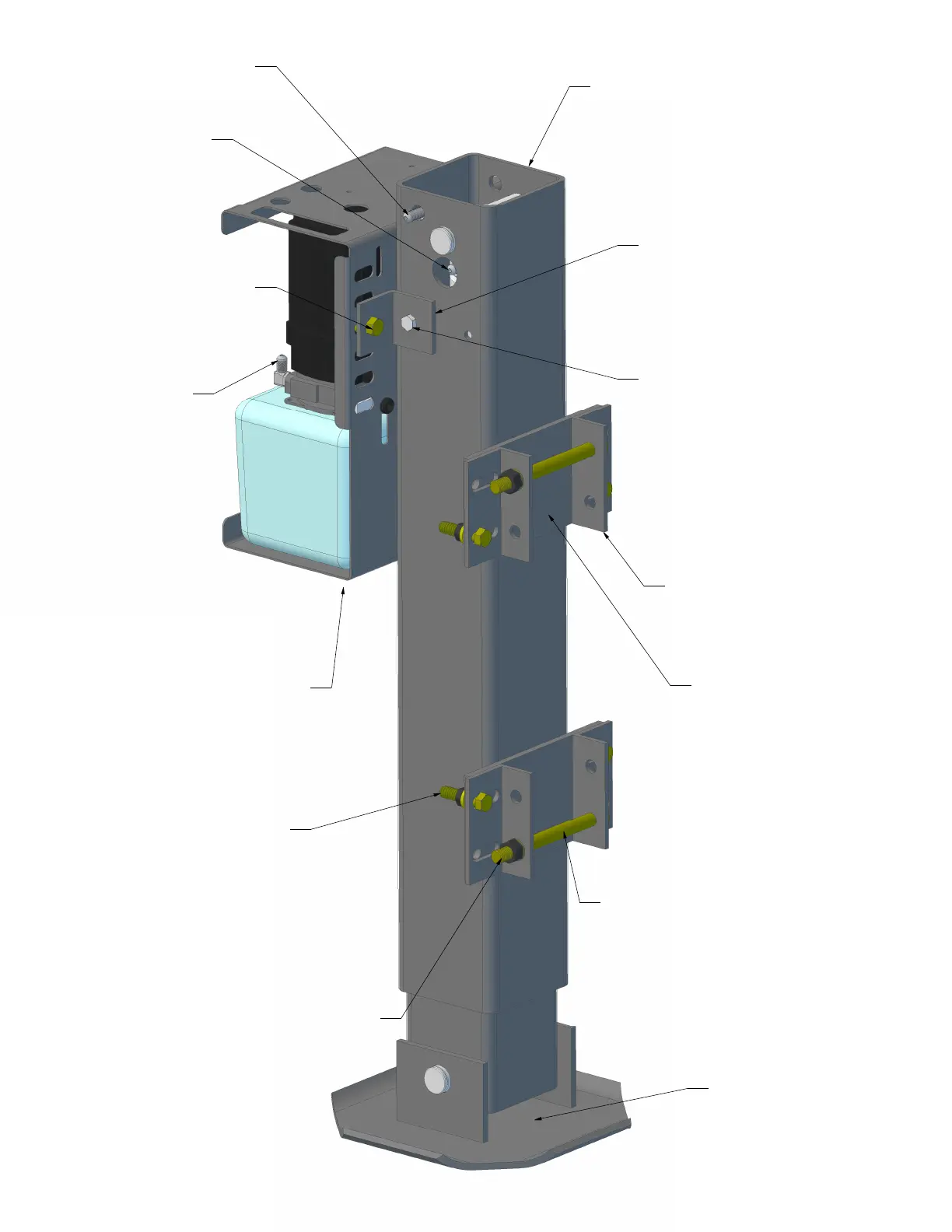

RETRACT PORT
1/4" JIC
MEDIUM TANK ASSEMBLY
STANDARD #M26850
MANUAL OVERRIDE #M26855
3/8" G5 HEX BOLT x .5" LONG
3/8" G5 LOCKWASHER
QTY: 2 EACH PER PUMP
TAB BRACKET
QTY: 2 PER PUMP
#M28725
EXTEND PORT
1/4" JIC
7/16" G8 HEX BOLT x 1.5"
7/16" G8 HEX NUT
7/16" G8 LOCKWASHER
QTY: 2 EACH PER PUMP
TANK ASSEMBLY
RETRACT PORT
SQI-24
STANDARD LARN
#M4024
"B" BRACKETS
QTY: 4 PER JACK
#M28930
DRILL 1/2" CLEARANCE HOLE THROUGH
TRAILER FRAME BULKHEAD OR BEAM
ATTACH JACK USING TWO 1/2" BOLTS
(EITHER IN 5.5" OR 6.5" LENGTHS)
7/16" G8 HEX BOLT x 1.75"
7/16" G8 HEX NUT
7/16" G8 LOCKWASHER
QTY: 4 EACH PER JACK
1/2" G8 HEX BOLT x 5.5" to 6.5" LONG
1/2" G8 HEX NUT
1/2" G8 LOCKWASHER
QTY: 2 EACH PER JACK
"B" BRACKETS SLIDE FOR
ADJUSTABLE WIDTH
3.6" TO 5.5" BEAM
PIVOTING FOOTPAD
