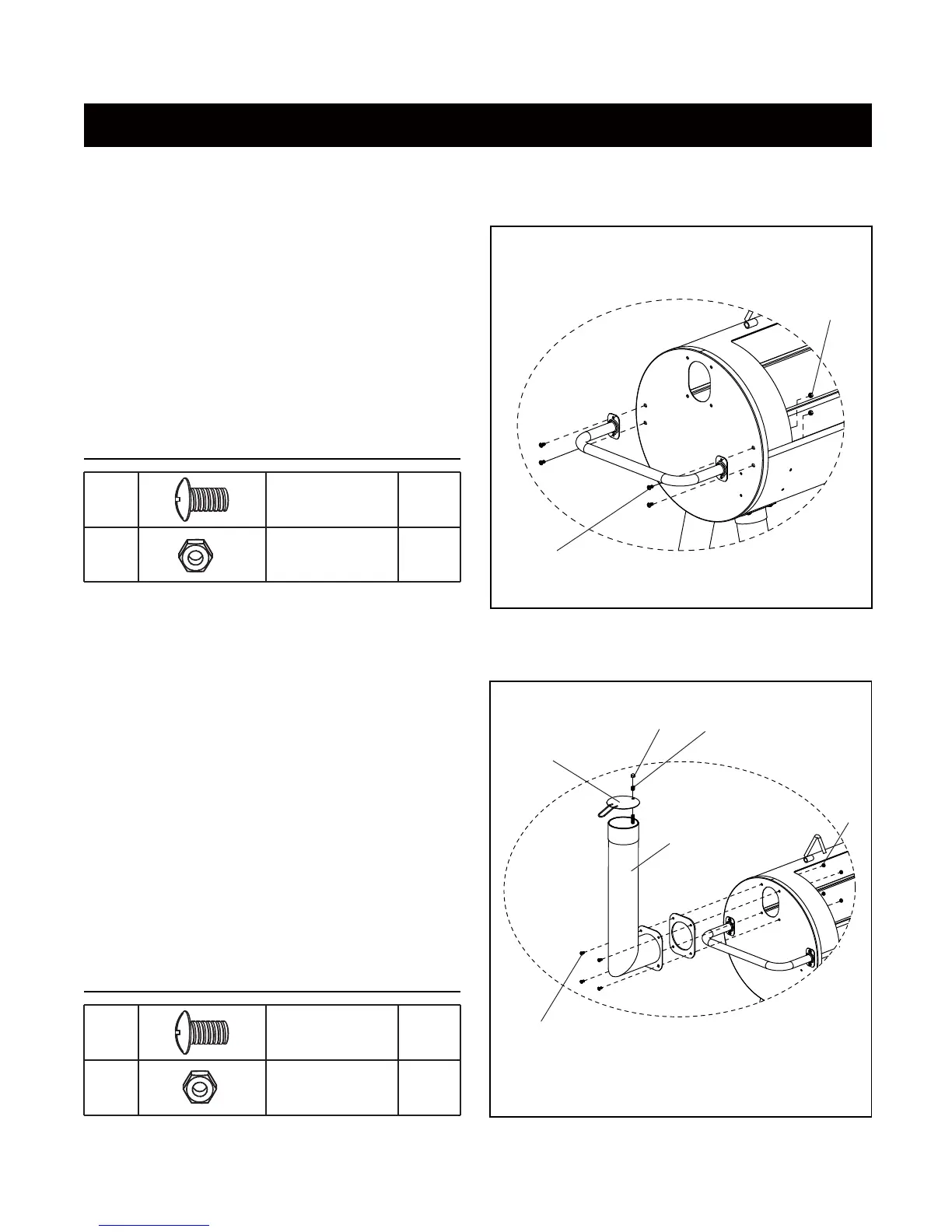

Assembly Instructions
Step 12
Attach smoke stack and smoke stack gasket to the smoking
chamber with M6 x 12 bolts (AA) and M6 nuts (DD).
Insure that the gasket is in between the smoke stack and
smoking chamber.
Remove cap nut and spring from smoke stack.
Place smoke stack damper over the bolt at the top of the smoke
stack. Then place the smoke stack damper spring over the
bolt and tighten with cap nut.
Step 13
AA
M6 x 12 Bolt
Hardware Used
4pcs
AA
M6 x 12 Bolt
Hardware Used
4pcs
Attach side handle to the smoking chamber with M6 x 12 botls
(AA) and M6 nuts (DD).
Step 12
Step 13
11
DD
M6 Nut 4pcs
DD
M6 Nut 4pcs
AA
DD
Smoke stack damper
Cap nut
Spring
Smoke stack
DD
AA
To Next Page
