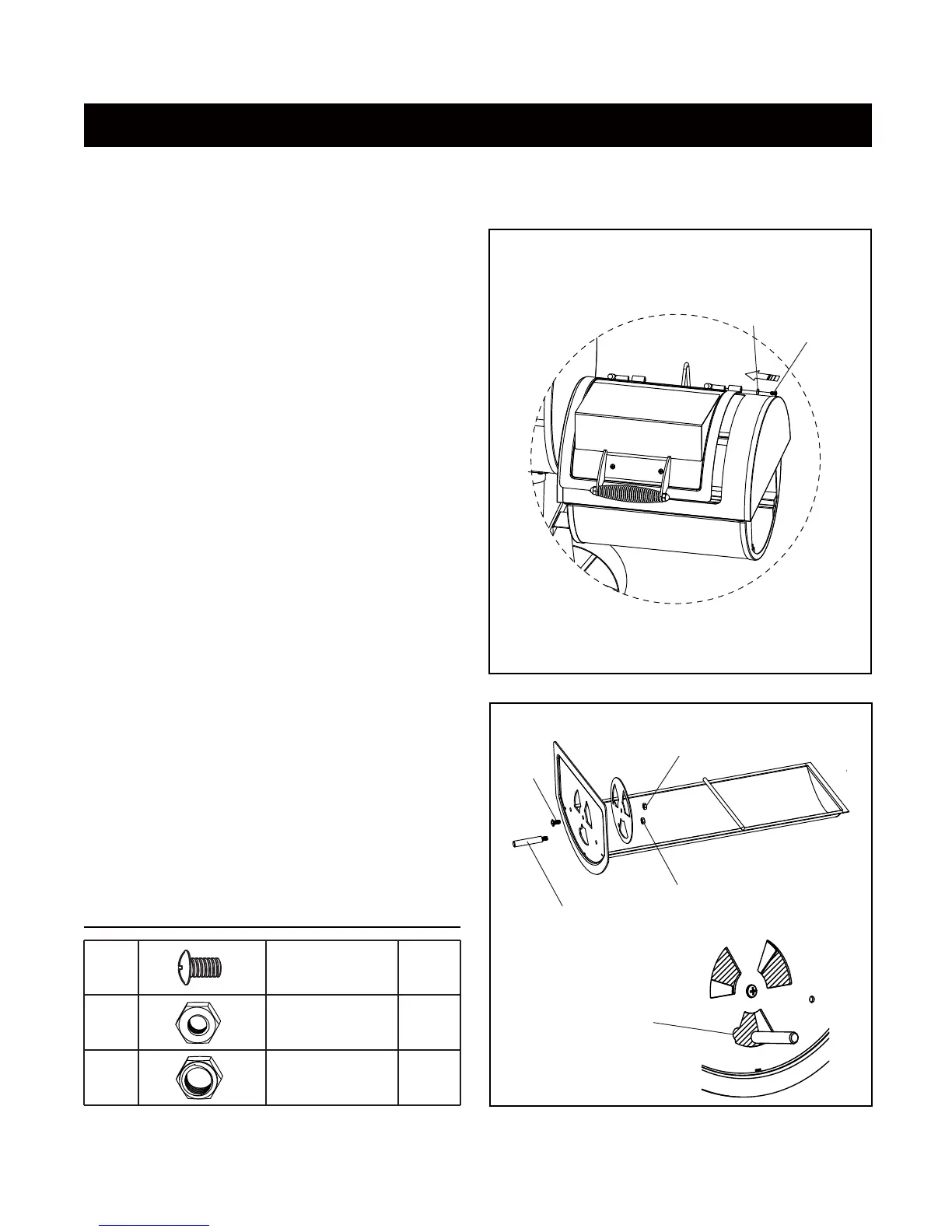

Assembly Instructions
Remove pre-attached hinge bolt and washer from firebox lid
hinge pins. Then attach firebox lid by sliding the hinge pins into
into the lid hinge holes on the firebox chamber as shown.
Secure with one hinge bolt and one washer.
Step 20
Attach air vent to ash drawer with M6 x 12 bolt (AA) and silver M6
locking nut (EE).
Insert air vent handle into ash drawer and air vent locking by M6
nut (DD).
Step 21
Step 20
Step 21
15
AA
M6 x 12 Bolt
Hardware Used
1pcs
DD
M6 Nut 1pcs
EE
M6 Lock Nut 1pcs
Washer
Bolt
AA
EE
DD
Air vent handle
Note: While making above installations, insure air vent handle
pass through the bottom opening with curve slot on ash drawer,
and air vent handle locate on the right side to make sure you can
completely open / close air vent in use.
Curve slot on ash drawer
bottom opening
To Next Page
