Bike Shield Junior Small - Step 1: Frame Assembly; Attach Rubber Legs to A Tubes; Connect AO Tube to A Tubes; Step 2: Frame Assembly

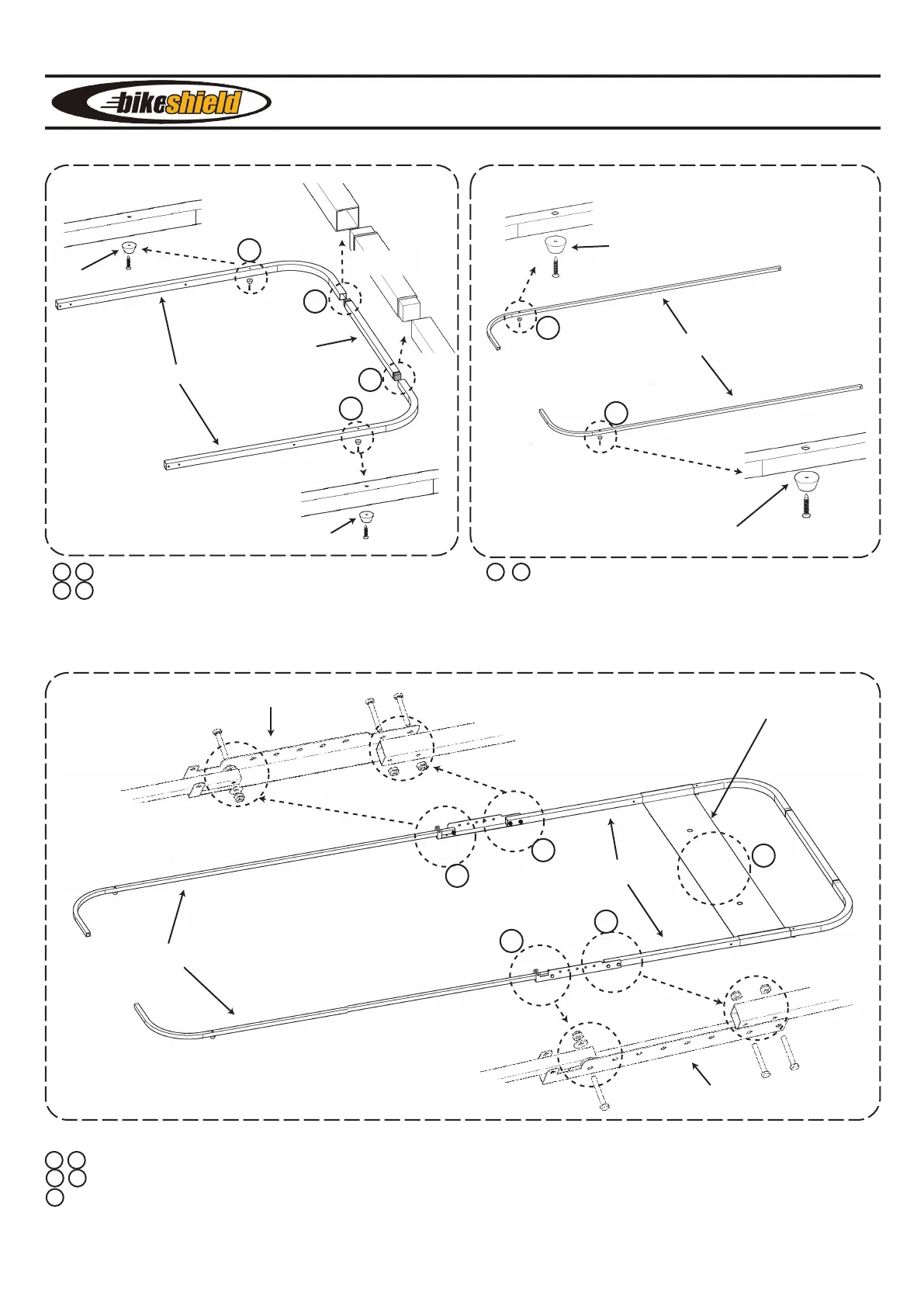

The Bike Shield Frame assembly
- STEP 1 -
- STEP 2 -
- STEP 3 -
A Tube
AO Tube
Rubber Leg
Rubber Leg
1
2
3
4
1
2
Rubber Leg
Rubber Leg
B Tube
Cross Plate
Tube Binding Bar
Tube Binding Bar
B Tube
A Tube
1
2
3
1 , 2 Screw up Rubber Leg into A Tube.
3 , 4 Connect AO Tube with two A Tube (right and left side).
* Use rubber or wooden hammer to connect Tubes.
1 , 2 Screw up Rubber Leg into B Tube.
4
5
* All bolts should be inserted from outside to inside of The Bike Shield.
1 , 2 Assemble A Tube with Tube Binding Bar using B Bolt Set.
3 , 4 Assemble B Tube with Tube Binding Bar using A Bolt Set
5 Put Cross Plate on A Tube. Cross Plate has two holes for anchor bolts, fixing to the floor.
A Tube
A Tube
AO Tube
B Tube
B Tube
B Tube
B Tube
A Tube
A Tube
2 - 4 (English)
Junior < Small >
