While every bike has a slightly different headlight and fender they are very similar to one another and the
basic principle remains the same as explained in the steps below.

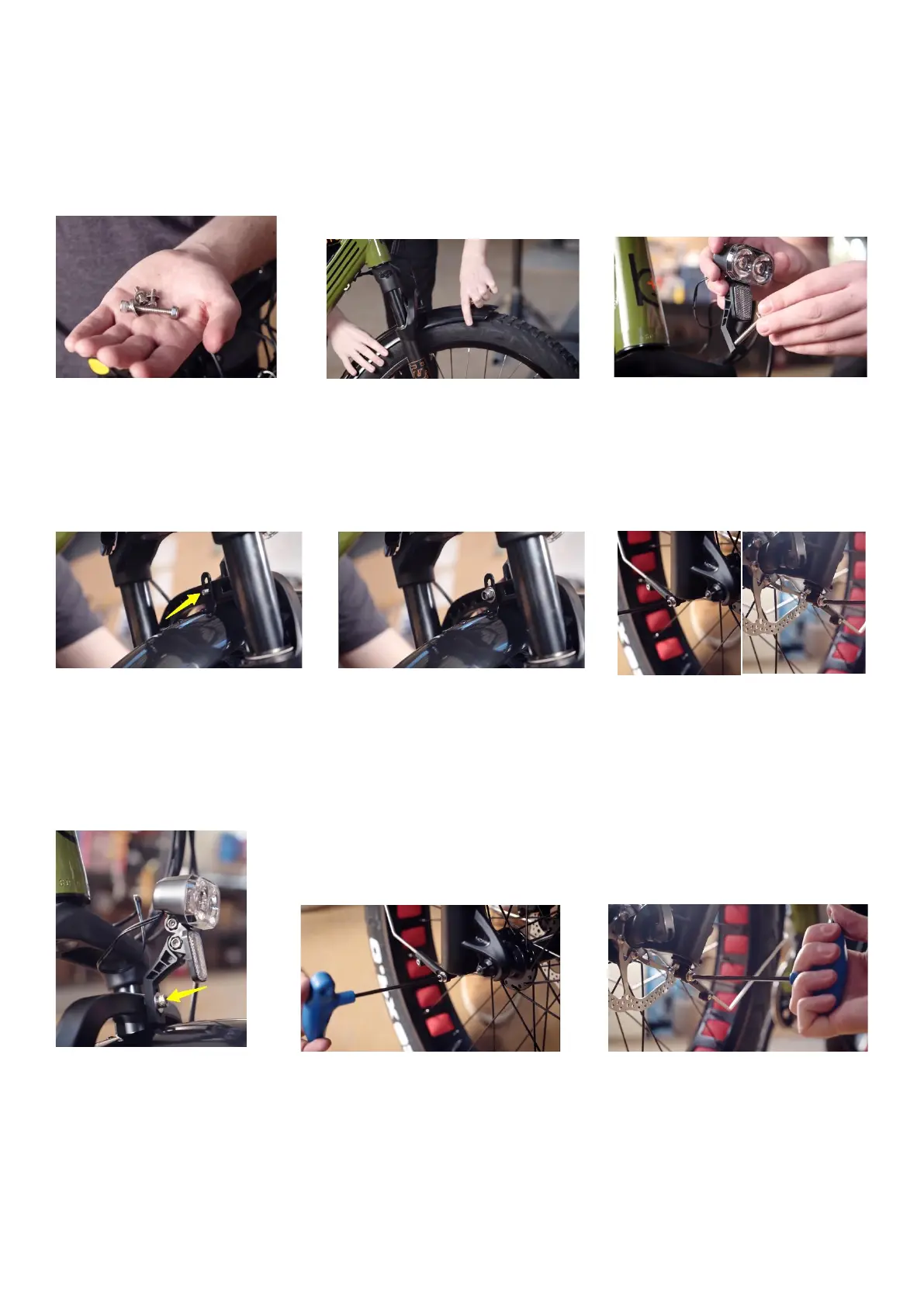

(1) (2) (3)
1. You will have 3 bolts, the smaller ones are for the sides and the long one is for the center.
2. Rest the fender on the wheel.
3. Use the long bolt with one washer and pass it through the headlight into the fork.
(4) (5) (6)
4. Once the bolt passes through the fork attach the fender mount onto the bolt.
5. Put the second washer and the nut on to the end of the bolt and tighten just a couple of turns by hand.
6. Now attach the 2 fender legs to the bottom of the fork on either side and hand tighten a few turns.
(7) (8) (9)
7. Keep the headlight upright and tighten the bolt using a 5mm Allen wrench while holding the nut with a
10mm wrench.
8. Tighten the fender legs on either side of the fork using the 5mm Allen wrench.
9. DO NOT tighten the fender legs too much as the plastic part may crack.
