For Stunner Step-over/ Stunner Step-thru
(1) (2)

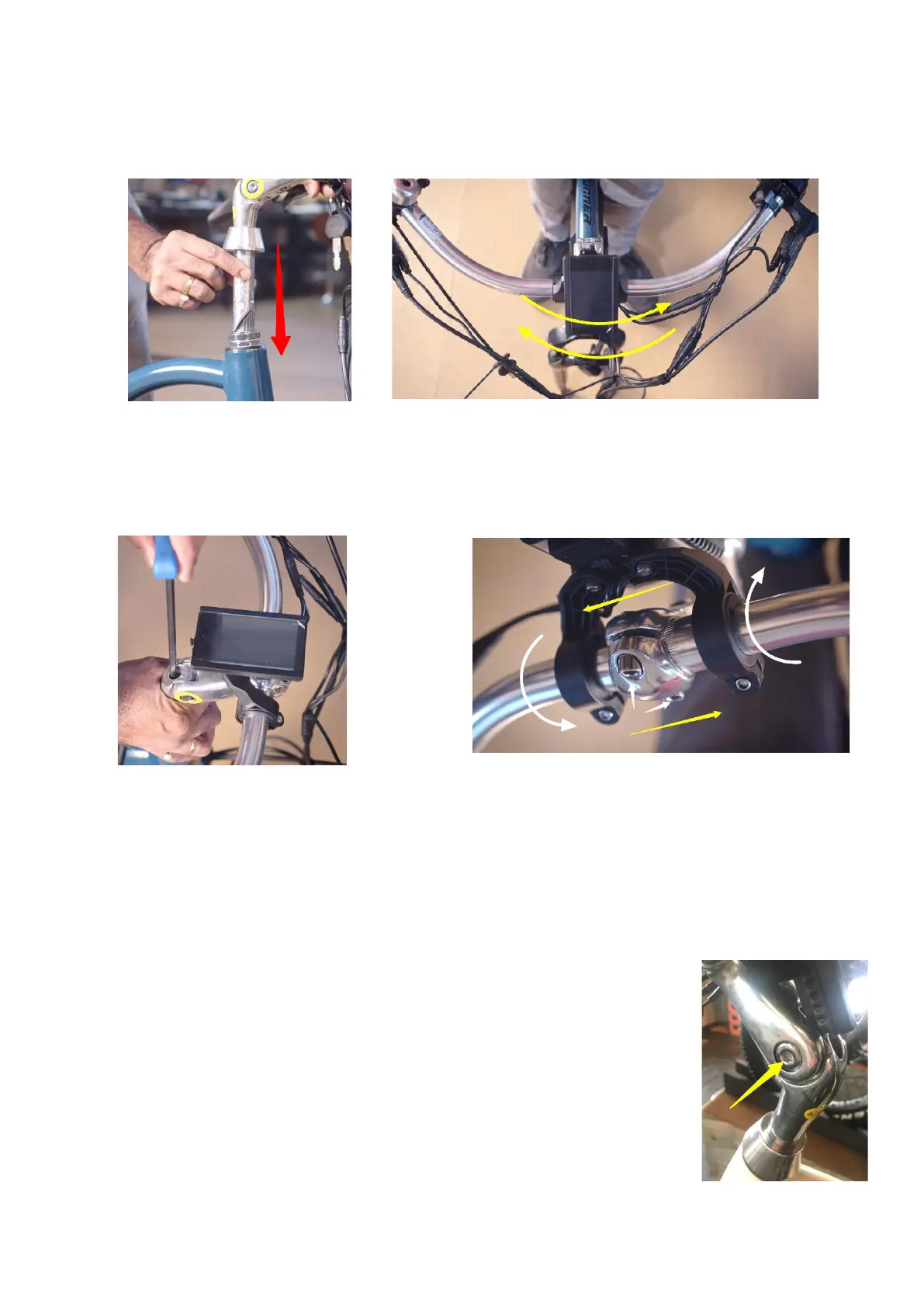

1. Insert the stem into the head tube as shown above.
2. Stand in front of the seat post and rotate the handlebar to align.
(3) (4)
3. Tighten the bolt on top as shown in pic.
4. Adjust the angular alignment and horizontal positioning of the handlebar by loosening the two Allen
bolts shown with 2 white arrows and then retighten them after the adjustment.
5. Adjust the Pitch of the handlebars by loosening this bolt and then retighten once the desired angle is
achieved.
(5)
