For Stunner LT with Adjustable Stem

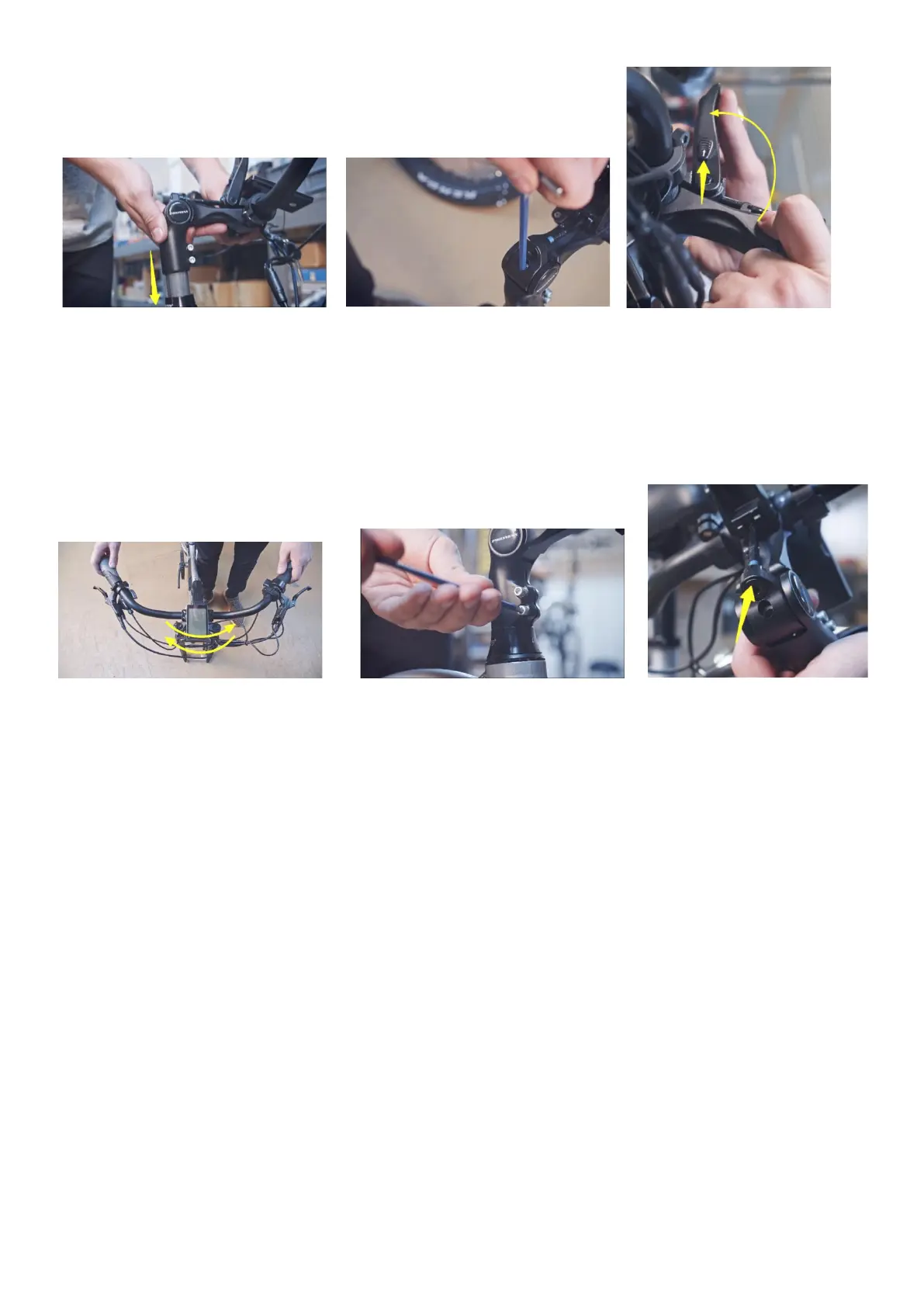

(1) (2) (3)
1. Insert the stem into the head tube as shown above.
2. Tighten the top bolt using a 5mm Allen wrench/ key until no play is felt but the fork turns freely.
3. Slide the lock to flip open the cam lever and then adjust the height by moving the bar up/down and
angle of by rolling the bar.
(4) (5) (6)
4. Stand in front of the seat post and rotate the handlebar to align.
5. Tighten the 2 bolts.
6. Turn the pitch adjustment screw to achieve your desired pitch angle for the handlebar.
