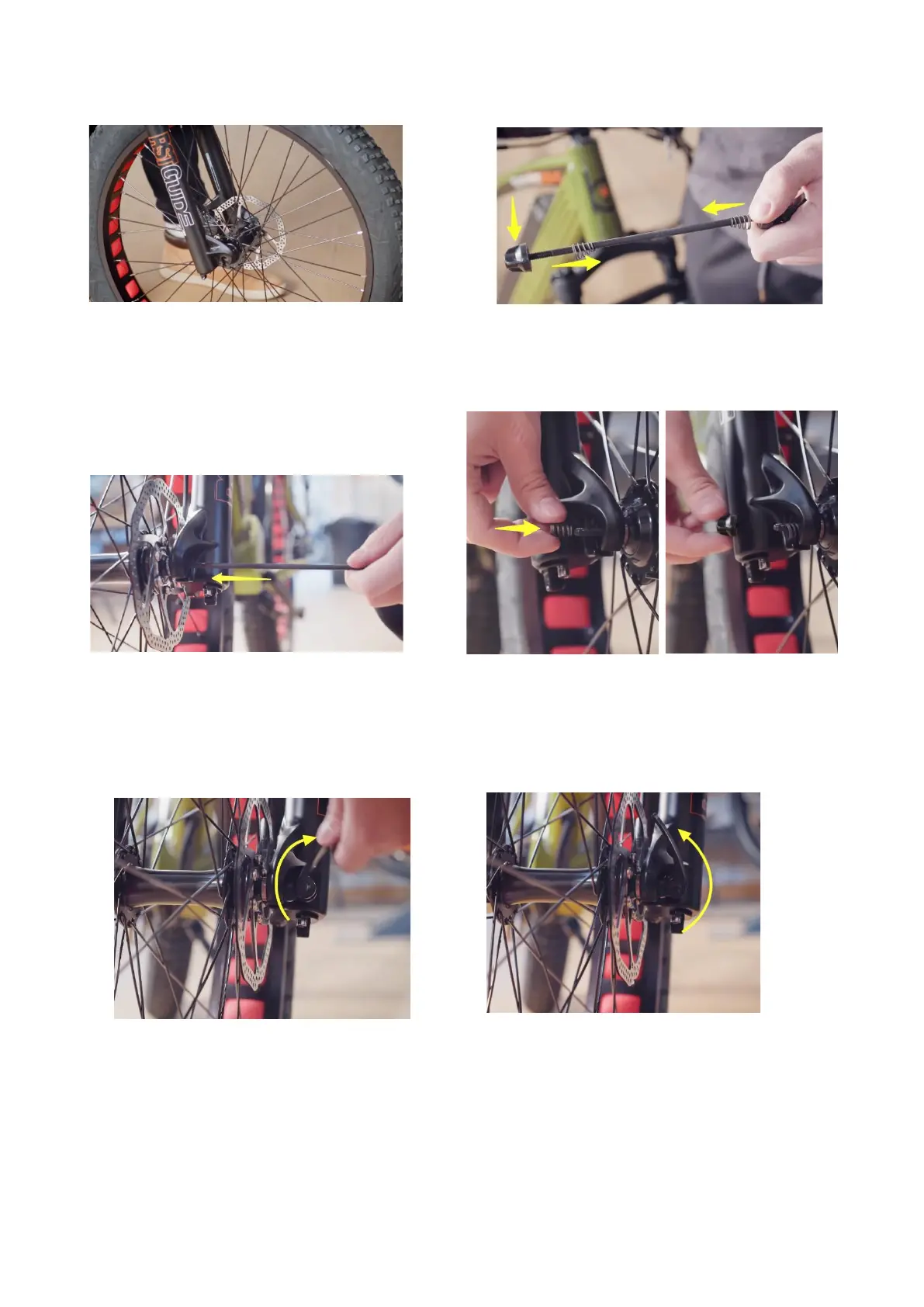

(B) QR (Quick-Release) Wheel
(1) (2)
1. Gently slide the front wheel in between the fork legs taking care not to scratch the brake pads.
2. The small end of the springs must face inwards. Open the cap and remove the spring next to it.
(3) (4)
3. Insert the QR shaft as shown from the brake rotor side.
4. Insert the spring with the small end facing inwards and screw on the end cap while holding the lever
from the other end such that the lever on the other end can slightly rotate.
(5) (6)
5. Rotate the lever to align it such that when you flip it to lock position it should flip upwards.
6. Lock the quick-release; with the lever in the palm of your hand, move the lever upwards as shown in
the pic to the CLOSE position.
