2
—Components for Billi Eco
Before commencing installation,
ensure you have identified the following.
1. Underbench module
2. Dispenser upper with tubing
3. Dispenser base & mount
4. Barb locking bush
5. 4mm chrome screw & allen key
6. Large washer
7. Tube spring clamps x 3
8. 450mm flexible braided hose
9. Filter Cartridge (installed)
10. User guide
11. Warranty Registration Card
12. Ensure a Stop Tap is installed 450mm
from the Billi unit water supply inlet
(Stop Tap not supplied)
—Determine Unit Location
Plan the instal
lation. Dispenser tube lengths,
position of power and water outlets, required
air space around the underbench module and
access for service must be considered before
cutting tube lengths. Refer to Diagrams 1,2
and 3 for clearances around the dispenser
and unit. Unit must be installed horizontally
with plastic vent panel facing to front of
cupboard. The Eco is designed for internal
installation only.
—Water Supply
The Eco must only be connected to a cold
water supply. A 15mm stop tap (not supplied)
is to be installed in an easily accessible
position within 450mm from the Eco water
supply inlet.
Supply Pressure: 250 – 500 Kpa*
Supply Temperature: 5°C – 30°C
* Where supply pressure is greater than 500Kpa a
PLV must be fitted. Billi recommends PLV’s with
anti-hammer properties.
Do not install with water that is
microbiologically unsafe or with water
of unknown quality without adequate
disinfection before or after the system.
Systems certified for cyst reduction may
be used on disinfected water that may
contain filterable cysts.
—Ventilation
The Eco requires no specific cupboard
ventilation but adequate air space and an
unobstructed clearance of at least 25mm on
each side of the underbench unit is necessary.
IMPORTANT: Insufficient ventilation will cause
inefficient refrigeration system operation,
increasing power usage.
—Power Requirements
A single 13 amp standard power outlet
is required.
Eco module is supplied with 1 metre of
flex cord and plug.
Installation
requirements.

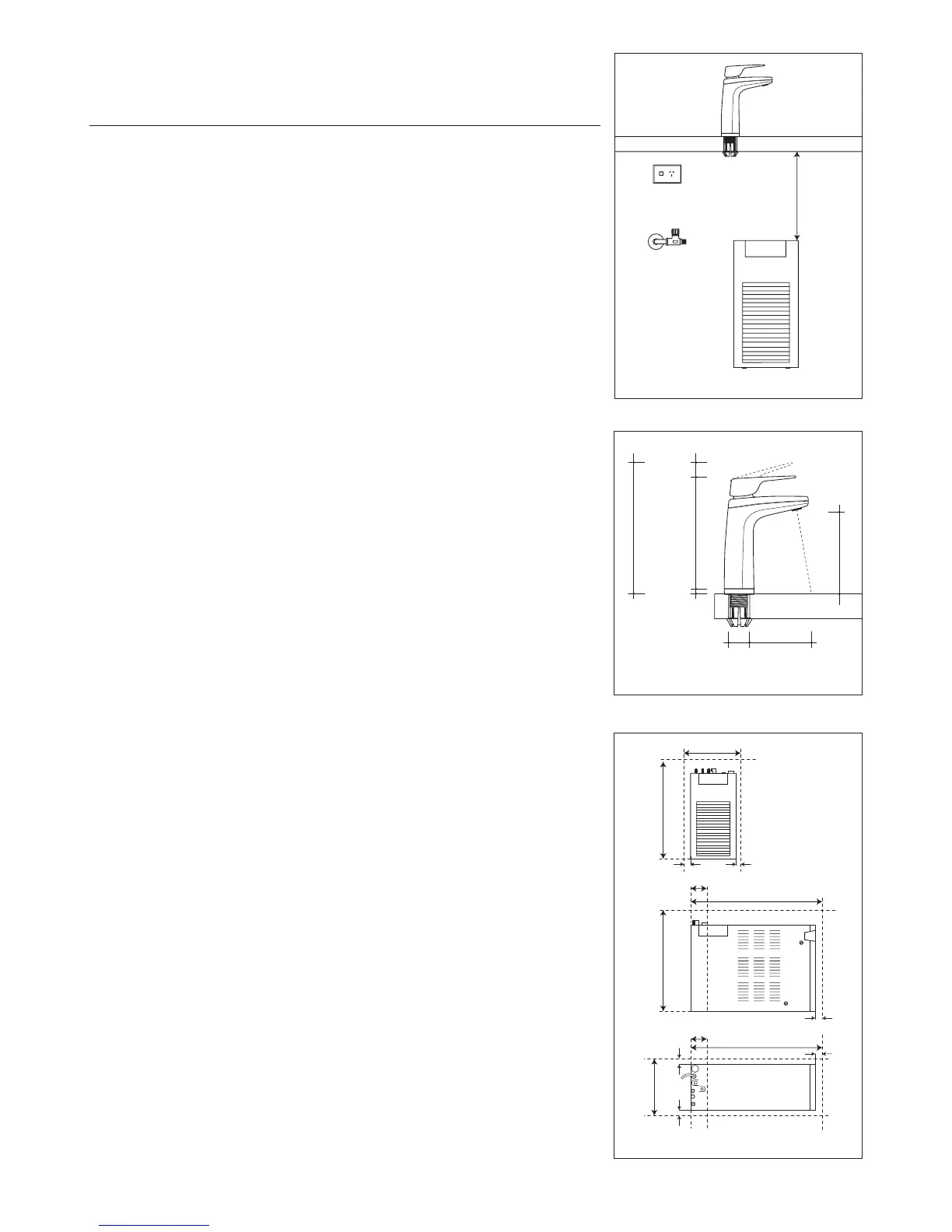

Diagram 1
Power
Outlet
800mm
Tube Length
Supplied
Stop Tap
(Installed by Plumber)
Max 450mm from Unit
Cupboard Dimensions:
220mm Minimum Width
365mm Minimum Depth
205mm
175mm
20mm
bench
thickness
1mm-48mm
Diagram 2
10mm
130mm
35mm 95mm
400mm
400mm
65mm
523mm
523mm
65mm
25mm
25mm
25mm
25mm
230mm
25mm 25mm
230mm
Diagram 3
