Instructions for assembly of Bilstein B6 4600 or B8 5100 Series shock absorber module:
B6 4600: Skip step E.
B8 5100: Skip step E if using circlip locations #1-#2. If using circlip locations #3-#6,
continue to step E. Trimming the OEM dust boot is only necessary if circlip locations #3-
#6 are being used.
E.

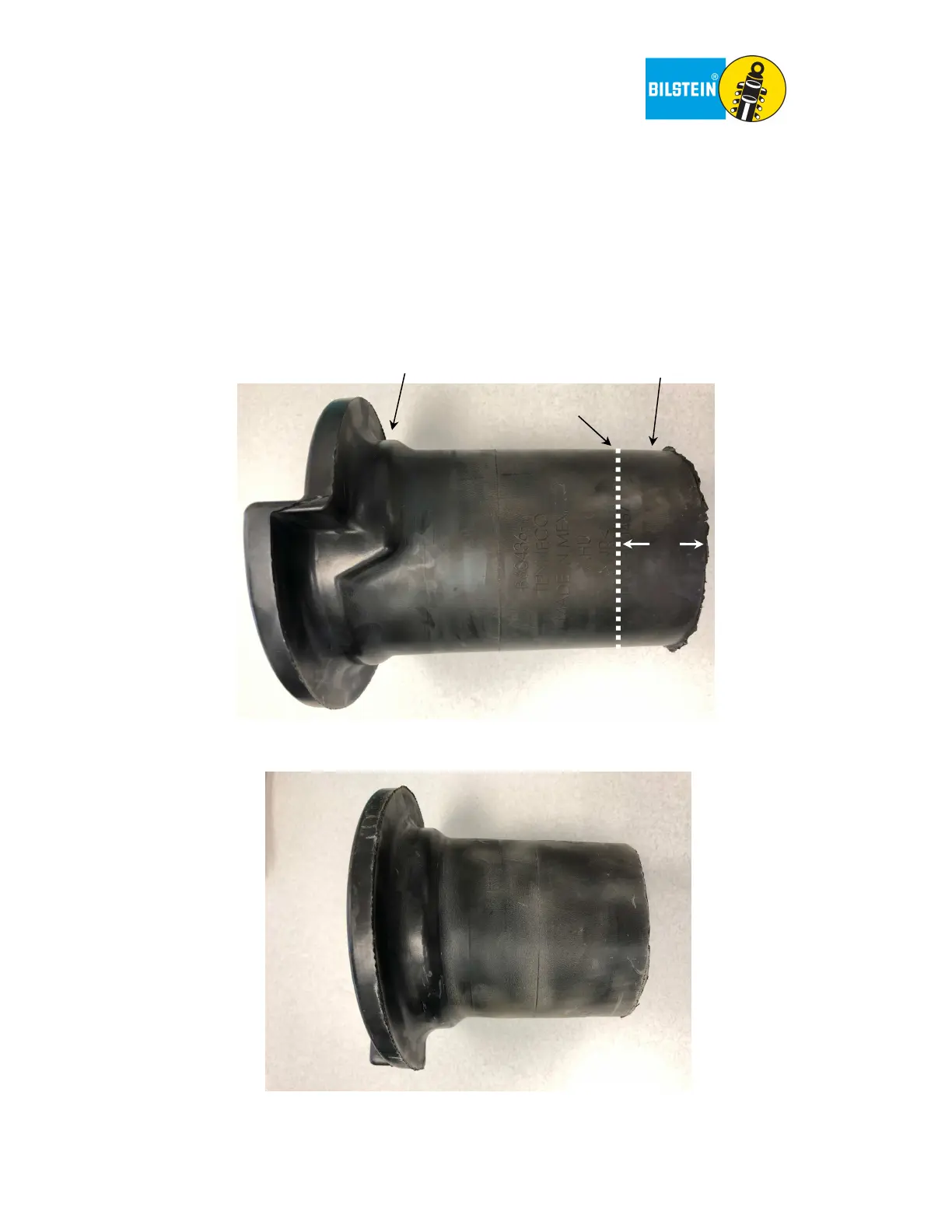

Using scissors, cut the OEM dust boot on the dotted line shown below in Figure 2:
The result should look as depicted below in Figure 3:
This portion will be re-used
This portion can be discarded
Figure 2: OEM dust
Cut on this line
Figure 3: modified
OEM dust boot
1.5”
