STEP 62 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
2
H100468 BOLT WH 5/16x1 BLK
2
H100379
T-NUT 5/16 BLK
8' BLOW MOLDED SLIDE - GREY
(x1)
A6P00554
468 (x2)
BOLT - 1"
379 (x2)
T-NUT - 5/16"
2 in
[50 mm]
2 in
[50 mm]
2 3/4 in
[70 mm]
554 (x1)
8' BLOW MOLDED SLIDE - GRAY

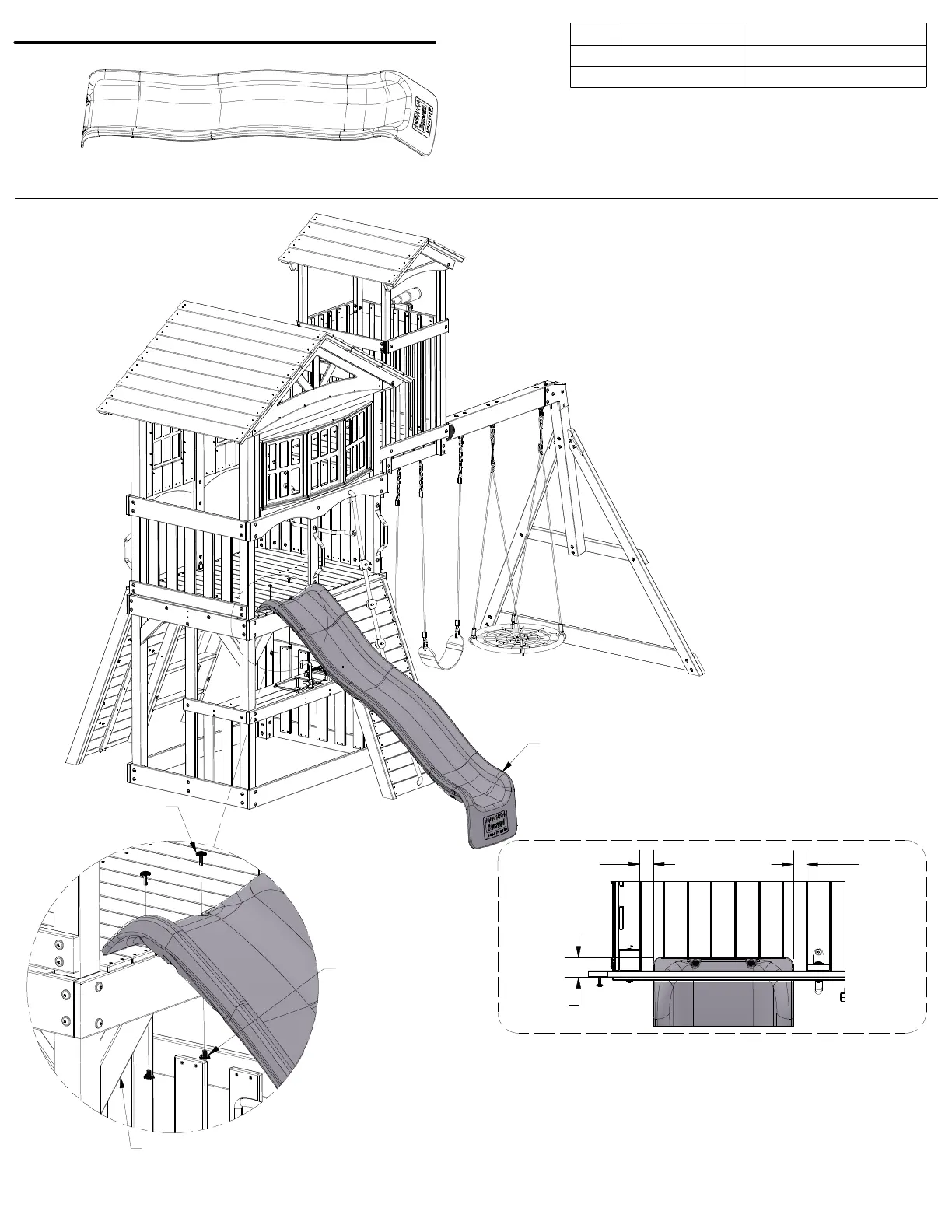

CENTER SLIDE IN OPENING USING DIMENSIONS SHOWN.
USING
SLIDE AS A TEMPLATE, DRILL (2) 3/8" [10mm] HOLE
THRU DECK FOR HARDWARE.
IF NEEDED E01 ANGLE BRACE MAY BE REMOVED
TO EASE INSTALLATION OF 379 T-NUT.
To Next Page
