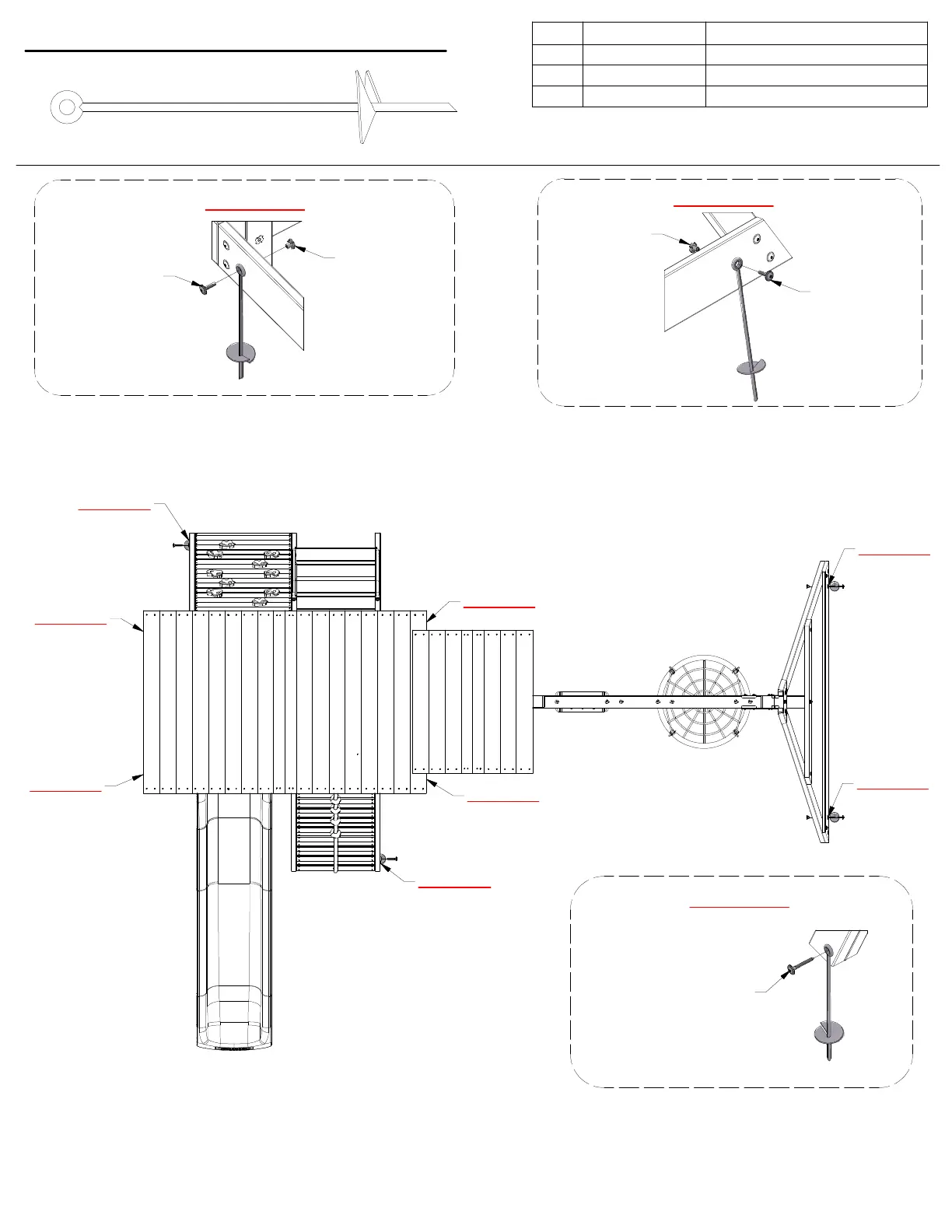

STEP 63 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
6 H100459 BOLT WH 5/16x1 1/4 BLK
6 H100379 T-NUT 5/16 BLK
2 H100197 LAG SCREW WH 5/16x2 1/2 BLK
TWIST GROUND STAKE INTO GROUND WHERE SHOWN.
USING GROUND STAKE AS A GUIDE, DRILL (1) 3/8" [10 mm] HOLE FOR HARDWARE. (DETAIL A & B)
AUGER GROUND STAKE
(x8)
A4M02252
DETAIL (C)
DETAIL (C)
DETAIL (B)
DETAIL (B)
DETAIL (A)
DETAIL (A)
DETAIL (A)
DETAIL (A)
459 (x1)
BOLT - 1 1/4"
379 (x1)
T-NUT - 5/16"
459 (x1)
BOLT - 1 1/4"
197 (x1)
LAG SCREW - 2 1/2"
379 (x1)
T-NUT - 5/16"
DETAIL (A)
DETAIL (B)
DETAIL (C)
TWIST GROUND STAKE INTO GROUND WHERE
SHOWN.
USING GROUND STAKE AS A GUIDE, DRILL (1)
3/16" [5 mm] HOLE FOR HARDWARE. (DETAIL C)
