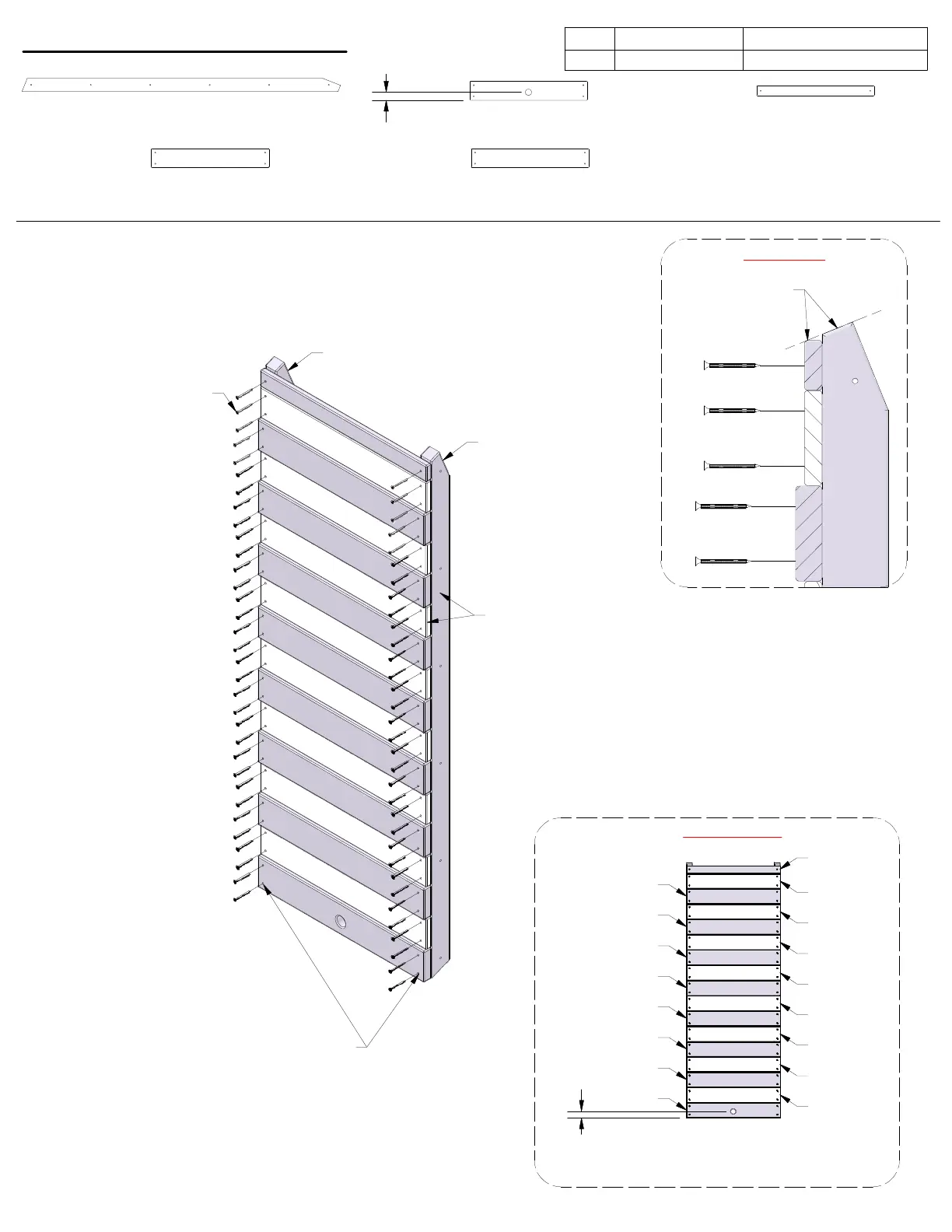

STEP 1 - ROPE WALL

QTY

PART NUMBER DESCRIPTION

66 H100391 SCREW PFH 8x2 BLK

391 (x66)

SCREW - 2"

ROCK WALL BOARD - W4L18230

5/8"x3 3/8"x21" (16x86x534)

M14

(x8)

FILLER BOARD - W4L18233

5/8"x1 3/4"x21" (16x45x534)

N03

(x1)

FRONT VIEW

BOARD PLACEMENT

SIDE VIEW

M14 (x1)

N03 (x1)

H15 (x1)

H16 (x1)

F07 (x1)

SUPPORT RAIL - W4L18227

1 3/8"x2 3/8"x56 7/8" (36x60x1446)

F07

(x2)

ROPE WALL BOARD - W4L18231

1"x3 3/8"x21" (24x86x534)

H15

(x7)

ROPE WALL BOARD - W4L18232

1"x3 3/8"x21" (24x86x534)

H16

(x1)

START HERE

FLUSH TOPS

FLUSH SIDES

DRILL (2) 1/8 in [3 mm]

PILOT HOLES FOR HARDWARE.

1 3/8 in

[36 mm]

1 3/8 in

[36 mm]
