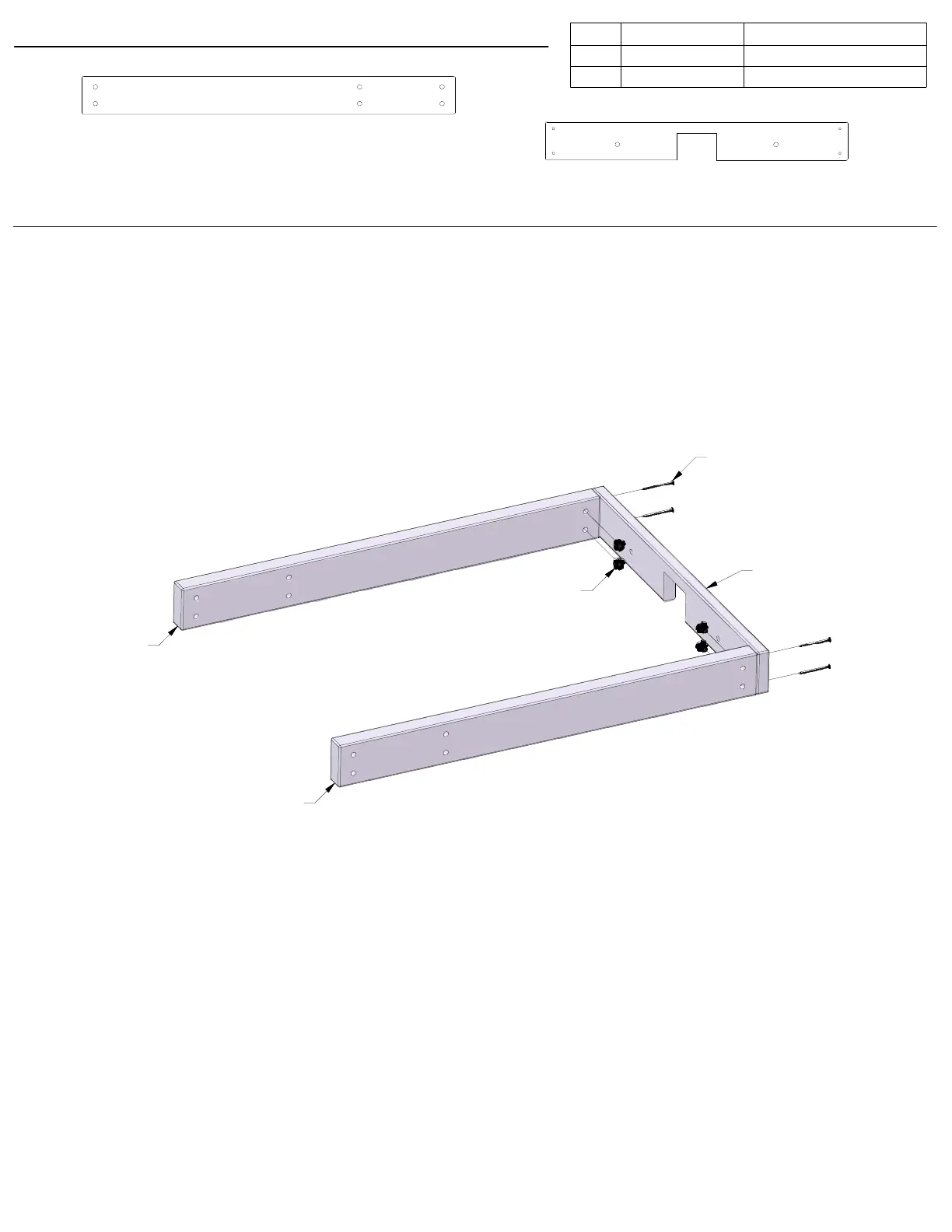

STEP 1 - CROWS NEST DECK ASSEMBLY

QTY

PART NUMBER DESCRIPTION

4 H100201 SCREW PFH 8x2-1/2" BLK

H100379

T-NUT 5/16" BLK

TIP:

INSTALL T-NUTS IN WOOD FIRST

201 (x4)

SCREW - 2 1/2"

379 (x4)

T-NUT - 5/16"

H18 (x1)

E03 (x1)

CROWS NEST FLOOR RAIL - W4L18291

1 3/8"x3 3/8"x33 1/4" (36x86x846)

E03

(x2)

CROWS NEST FLOOR RAIL - W4L18293

1"x3 3/8"x27" (24x86x686)

H18

(x1)
