Bilt Backyard Discovery WHISPERING POINT - Page 35

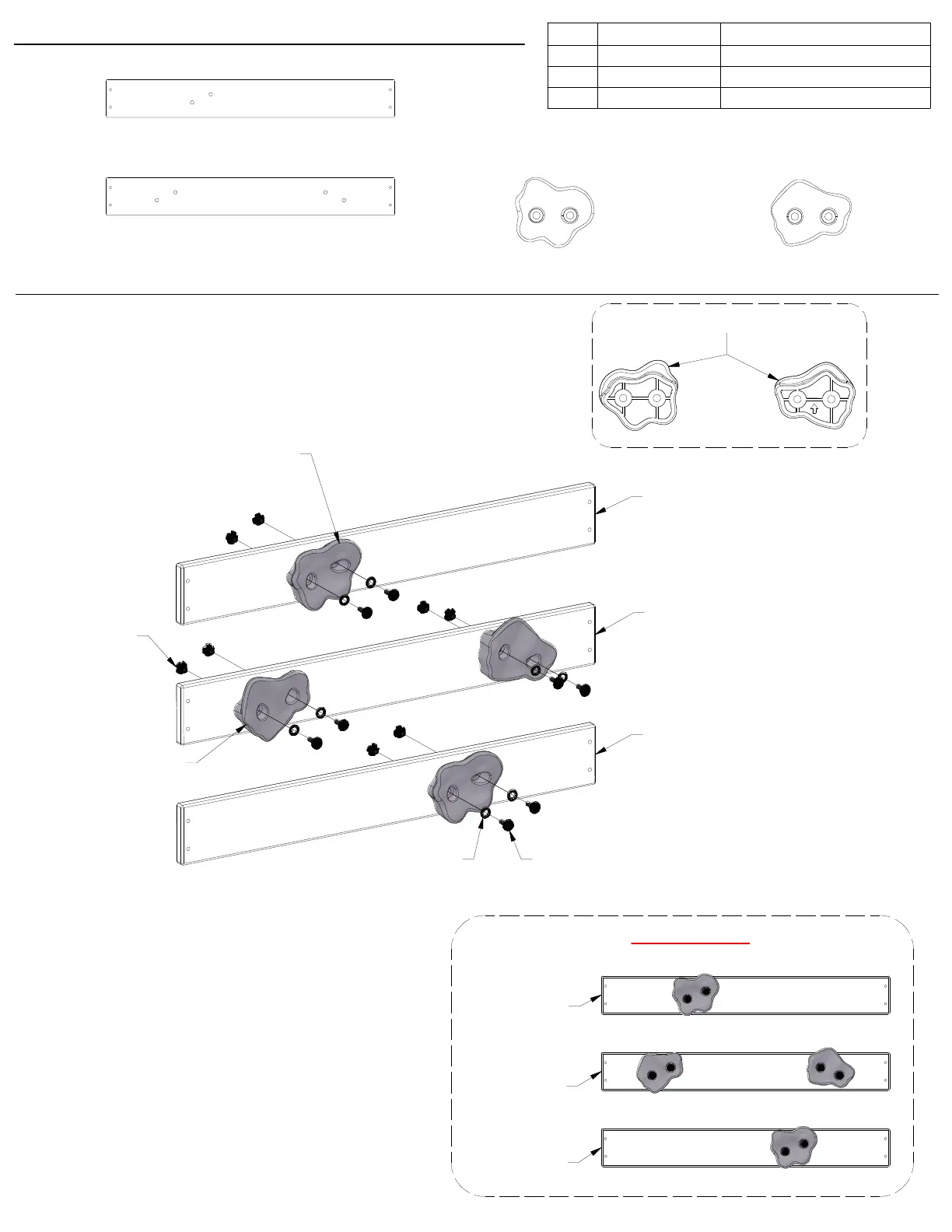

STEP 4 - LADDER & ROCK WALL ASSEMBLY
QTY
PART NUMBER DESCRIPTION
20
H101111
BOLT WH 1/4x3/4 BLK
20 H100473
WASHER LOCK EXT 8x15 BLK
20 H100398 T-NUT 1/4 BLK
TIP:
INSTALL T-NUTS IN WOOD FIRST
473 (x20)
WASHER - 8x15"
111 (x20)
BOLT WH - 3/4"
398 (x20)
T-NUT - 1/4"
M15 (x2)
M16 (x3)
M15 (x2)
592 (x5)
GREY HC ROCK #1
593 (x5)
GREY HC ROCK #2
M15 LA (x2)
M16 DA (x3)
M15 RA (x2)
FINGER GRIPS UPWARDS
FRONT VIEW
GREY HC ROCK #1
(x5)
A6P00592
GREY HC ROCK #2
(x5)
A6P00593
ROCK
BOARD - W4L18315
5/8"x3 3/8"x25 3/4" (16x86x655)
M15
(x4)
ROCK BOARD - W4L18316
5/8"x3 3/8"x25 3/4" (16x86x655)
M16
(x3)
35
