Bilt Backyard Discovery WHISPERING POINT - STEP 1 - SWING BEAM ASSEMBLY

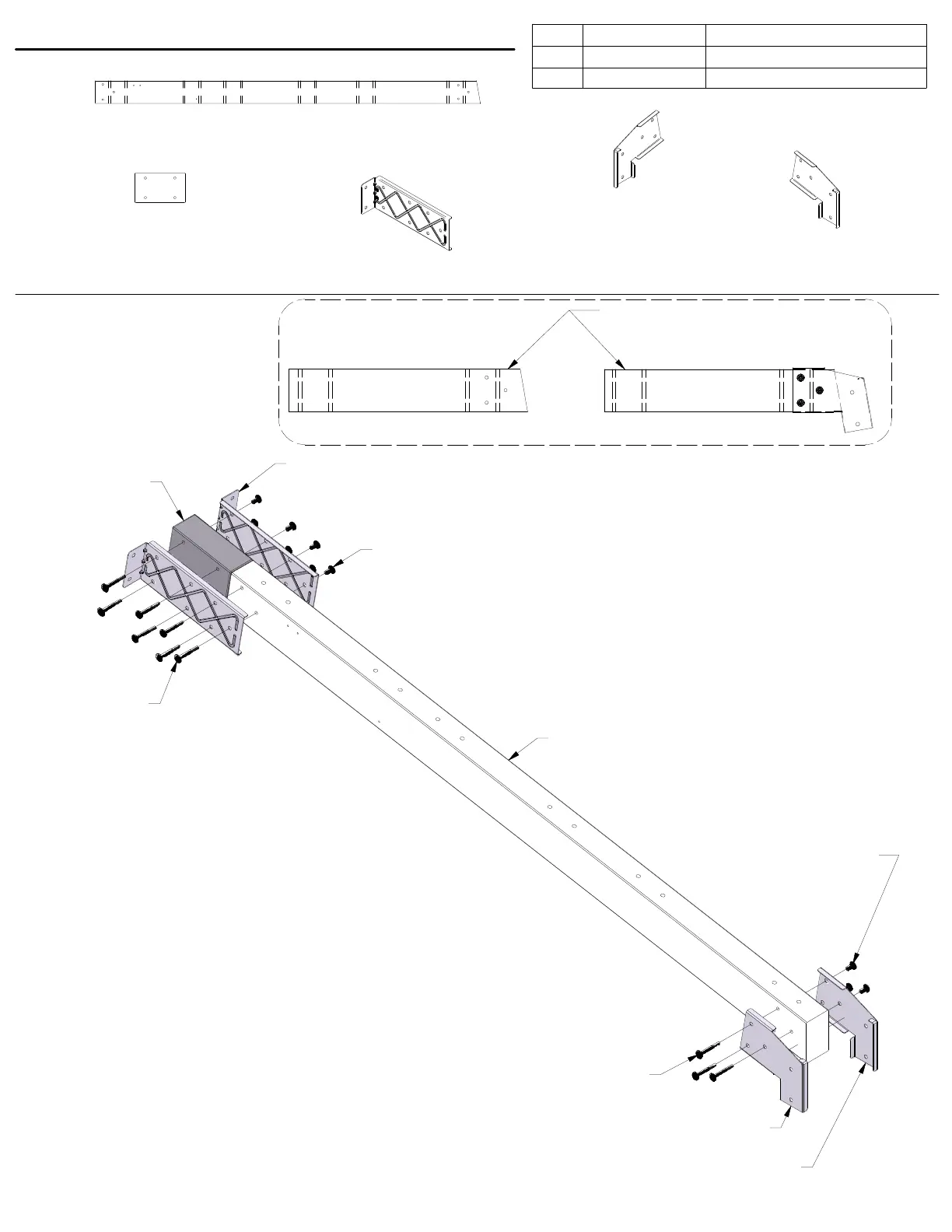

STEP 1 - SWING BEAM ASSEMBLY
QTY
PART NUMBER DESCRIPTION
10 H100416 BOLT WH 5/16x3" BLK
10 H100192 NUT BARREL WH 5/16x7/8" BLK
TIP:
LEAVE 416 BOLTS & 192 NUT
BARRELS HAND TIGHT.
NOTE THIS
EDGE UPWARD
A1 (x1)
A2 (x1)
416 (x7)
BOLT - 3"
192 (x7)
NUT BARREL - 7/8"
192 (x3)
NUT BARREL - 7/8"
416 (x3)
BOLT - 3"
679 (x2)
EXTENDED SWING BEAM BRACKET
618 (x1)
SWING BEAM EXTENSION BRACKET-RIGHT
617 (x1)
SWING BEAM EXTENSION BRACKET-LEFT
SWING BEAM EXTENDED - W4L18222
3 3/8"x5 1/4"x89 1/2" (86x134x2274)
A1
(x1)
SB 9" BLOCK - W4L18223
3 3/8"x5 1/4"x9" (86x134x228)
A2
(x1)
EXTENDED SWING
BEAM
BRACKET
(x2)
A4M01679
SWING BEAM
EXTENSION
BRACKET - LEFT
(x1)
A4M00617
SWING
BEAM
EXTENSION
BRACKET - RIGHT
(x1)
A4M00618
41
