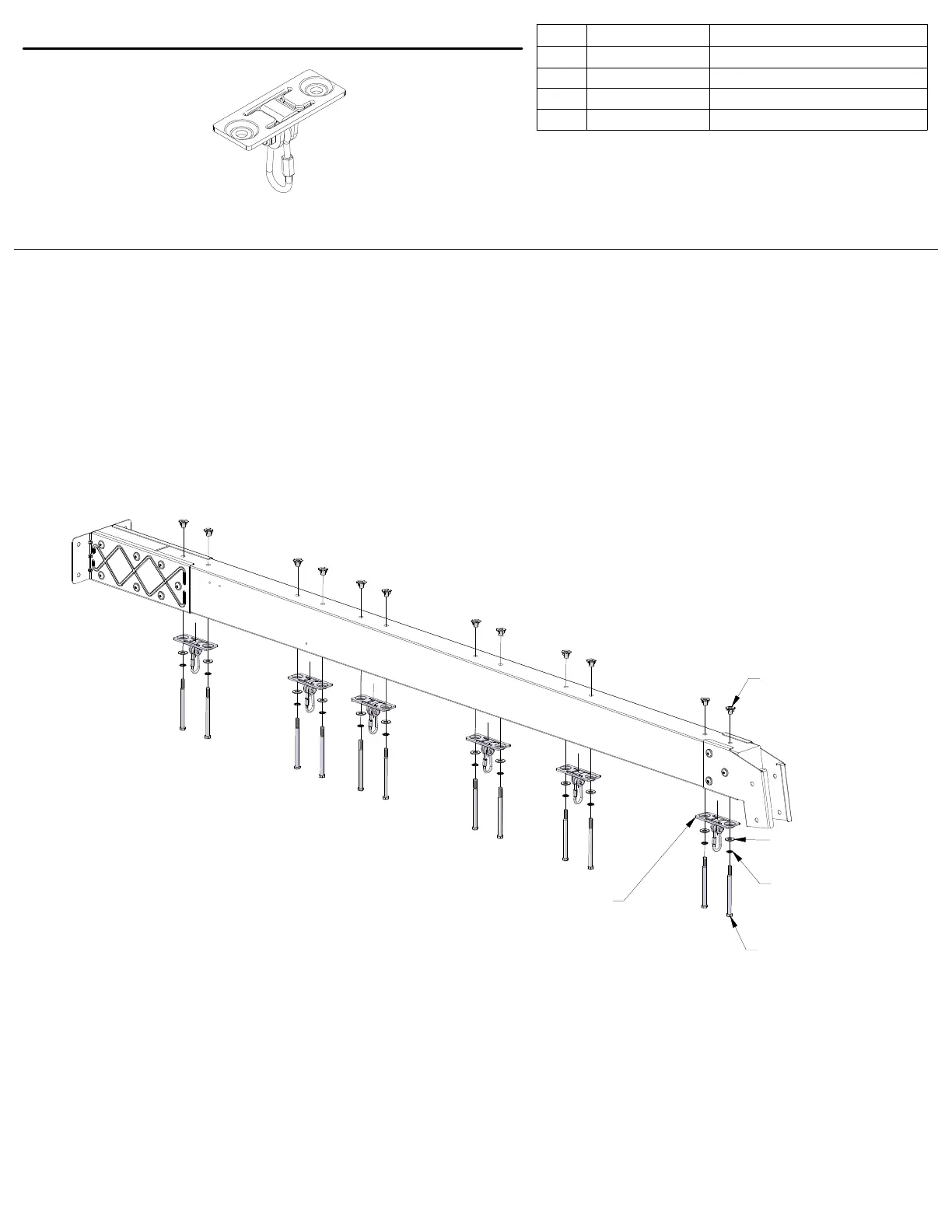

STEP 2 - SWING BEAM ASSEMBLY

QTY

PART NUMBER DESCRIPTION

12 H101166 WASHER LOCK INT 10x18 BLK

12 H101167 WASHER FLAT 11x25 BLK

12 H101168 T-NUT 3/8" BLK

12 H101169 BOLT HEX 3/8x5-1/2 BLK

TIP:

INSTALL T-NUTS IN WOOD FIRST

168 (x12)

T-NUT - 3/8"

167 (x12)

WASHER - 11x25

166 (x12)

WASHER - 10x18

169 (x12)

BOLT - 5-1/2"

171 (x6)

SWING HANGER

(x6)

A4M02171
