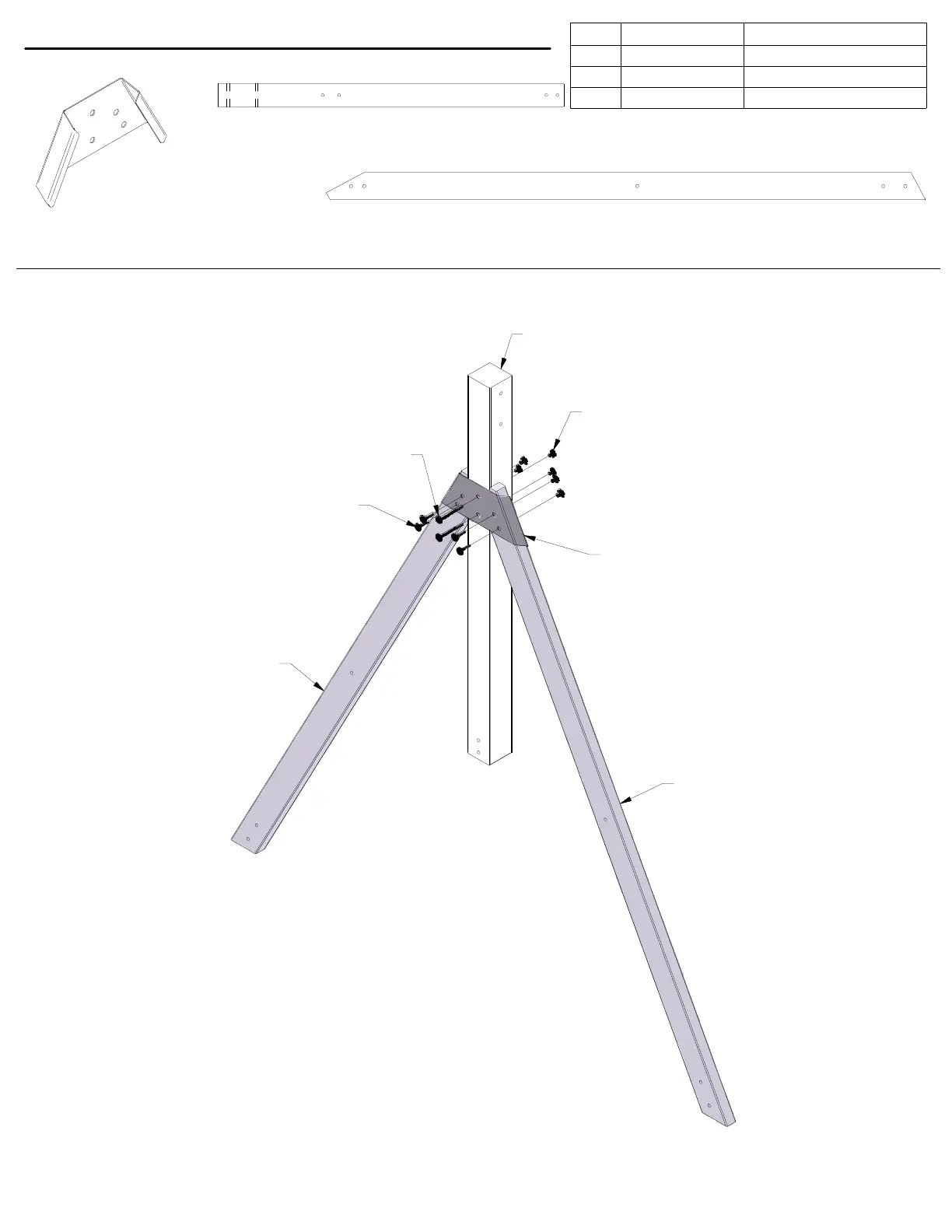

STEP 4 - SWING BEAM ASSEMBLY
QTY
PART NUMBER DESCRIPTION
2
H100503 BOLT WH 5/16x3-1/2" BLK
4
H100407
BOLT WH 5/16x1-1/2" BLK
6 H100379 T-NUT 5/16" BLK
TIP:
INSTALL T-NUTS IN WOOD FIRST
379 (x6)
T-NUT - 5/16"
503 (x2)
BOLT - 3 1/2"
407 (x4)
BOLT - 1 1/2"
SP71 (x1)
E80 (x1)
E80 (x1)
1782 (x1)
A-FRAME BRACKET
A-FRAME BRACKET
(x1)
A4M01782
SWING
BEAM SUPPORT - W4L18221
3 3/8"x3 3/8"x49 1/2" (86x86x1256)
SP71
(x1)
ANGLE BRACE - W4L18219
1 3/8"x3 3/8"x74 7/8" (36x86x1903)
E80
(x2)
