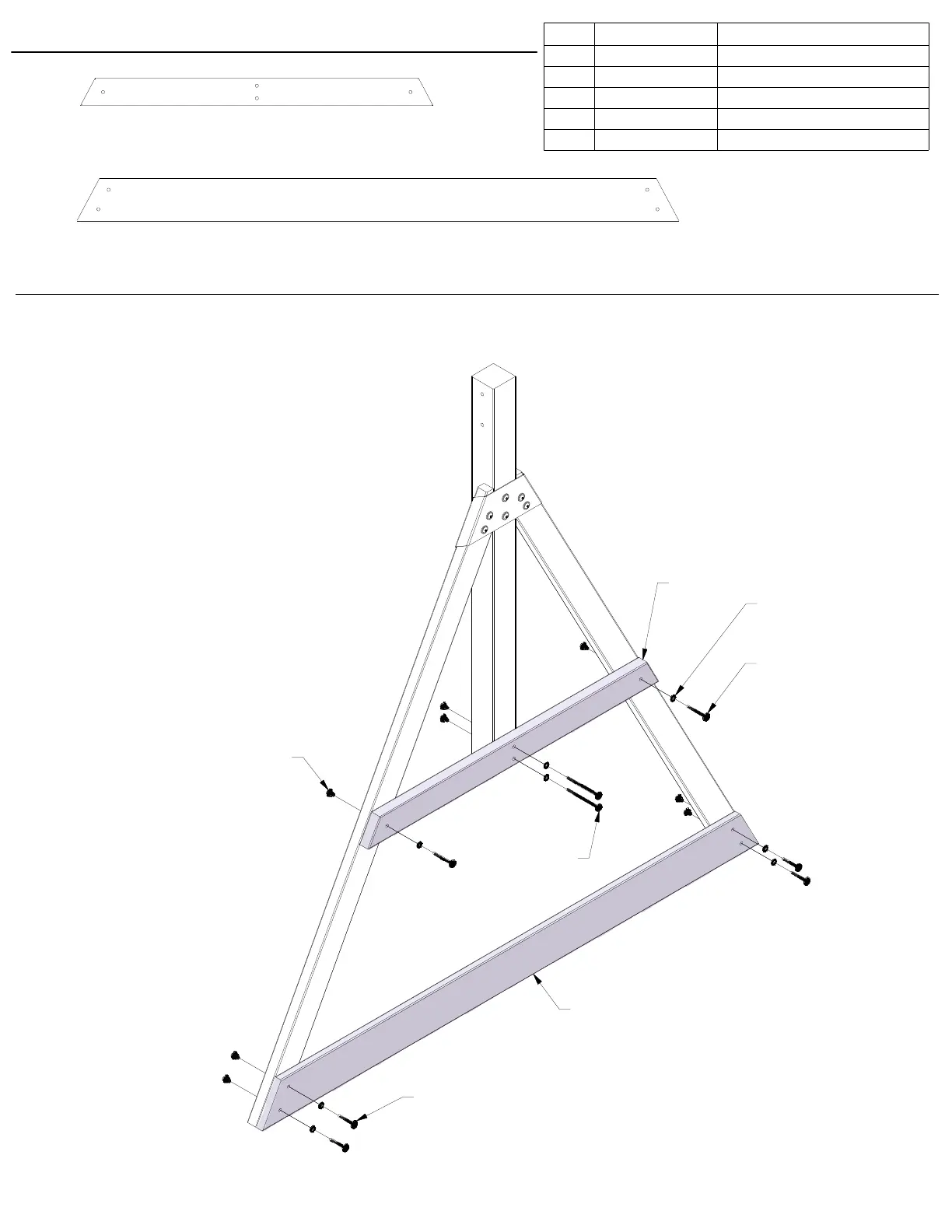

STEP 5 - SWING BEAM ASSEMBLY
QTY
PART NUMBER DESCRIPTION
2
H100195 BOLT WH 5/16x2-3/4" BLK
4
H100205
BOLT WH 5/16x2-1/4" BLK
8 H100198 WASHER LOCK EXT 8x19 BLK
8 H100379
T-NUT 5/16" BLK
2 H100480 BOLT WH 5/16x4-3/4" BLK
TIP:
INSTALL T-NUTS IN WOOD FIRST
E79 (x1)
G50 (x1)
379 (x8)
T-NUT - 5/16"
205 (x4)
BOLT - 2 1/4"
480 (x2)
BOLT - 4 3/4"
195 (x2)
BOLT - 2-3/4
198 (x8)
WASHER - 8x19
END SUPPORT - W4L18220
1 1/2"x3 1/2"x44" (36x86x1120)
E79
(x1)
GROUND BOARD - W4L18218
1"x5 1/4"x75 1/4" (24x134x1912)
G50
(x1)
To Next Page
