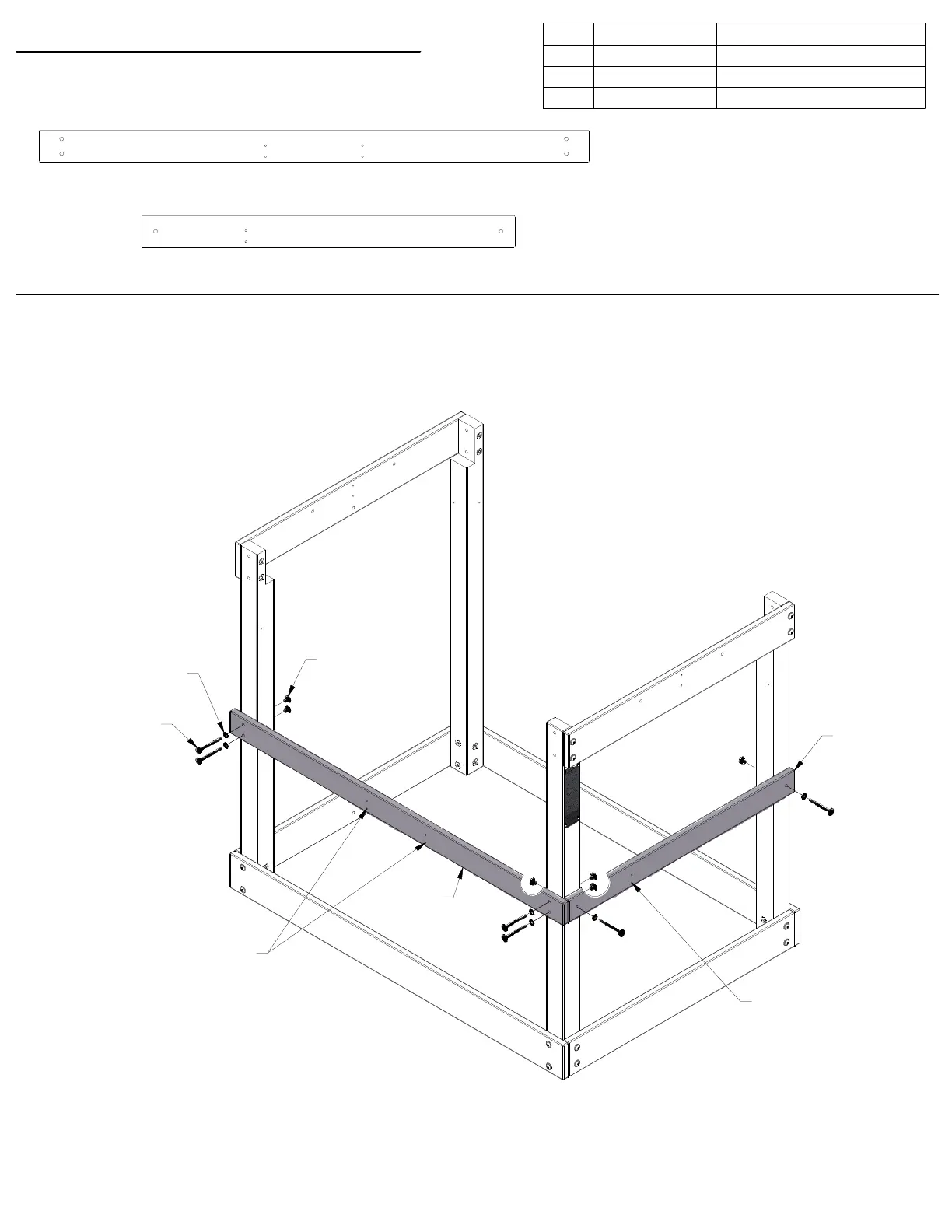

STEP 4 - FORT ASSEMBLY
TIP:
INSTALL T-NUTS IN WOOD FIRST
415 (x6)
BOLT - 3 3/4"
198 (x6)
WASHER - 8x19
379 (x6)
T-NUT - 5/16"
H01 (x1)
H02 (x1)
HOLES DOWN
NOTE HOLE
LOCATION
COUNTERTOP RAIL - W4L18240
1"x3 3/8"x59" (24x86x1498)
H01
(x1)
WALL RAIL - W4L18245
1"x3 3/8"x40" (24x86x1017)
H02
(x1)
QTY
PART NUMBER DESCRIPTION
6 H100198 WASHER LOCK EXT 8x19 BLK
6 H100379
T-NUT 5/16 BLK
6 H100415 BOLT WH 5/16x3 3/4 BLK
