Bilt Backyard Discovery WHISPERING POINT - Page 51

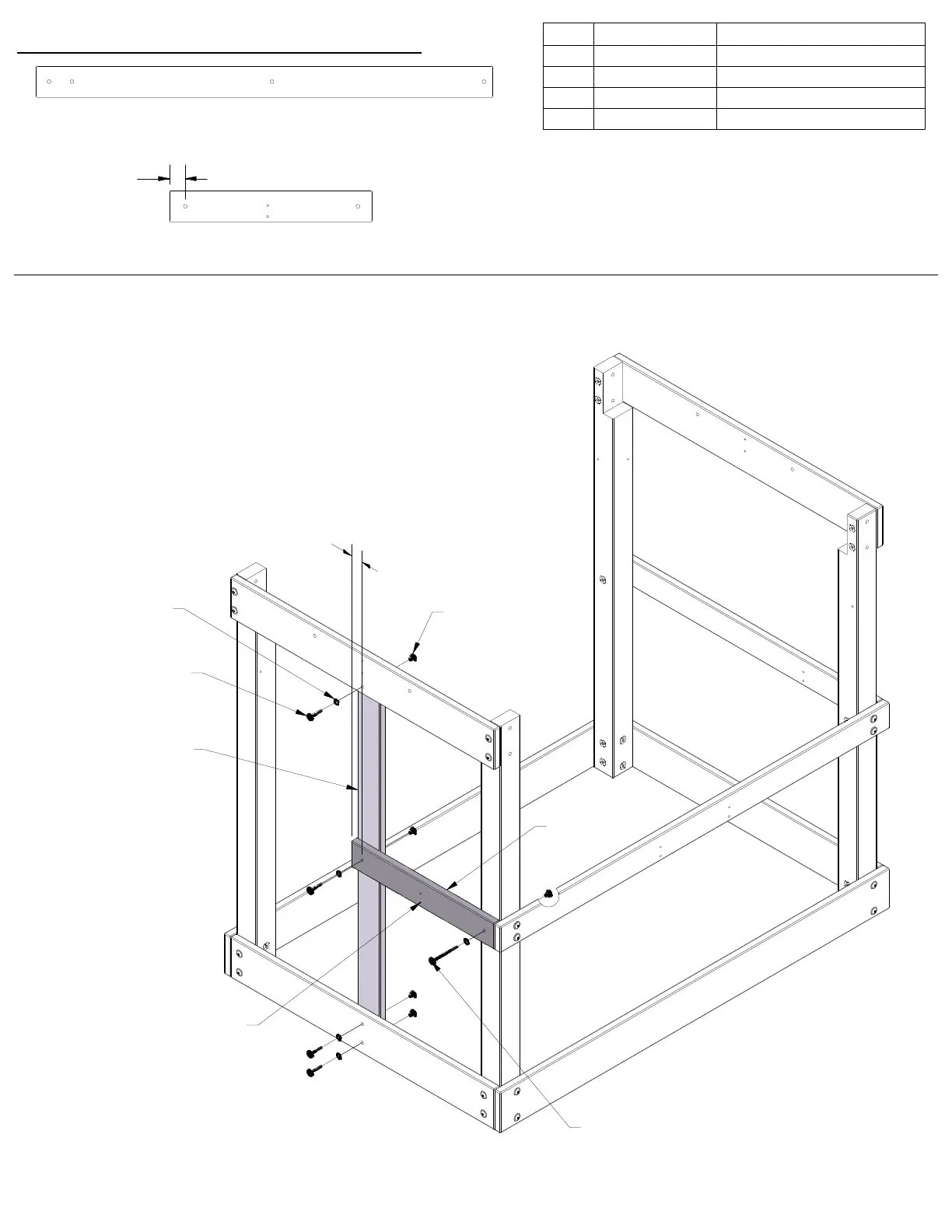

STEP 5 - FORT ASSEMBLY
TIP:
INSTALL T-NUTS IN WOOD FIRST
379 (x5)
T-NUT - 5/16"
198 (x5)
WASHER - 8x19
378 (x4)
BOLT - 1 3/4"
415 (x1)
BOLT - 3 3/4"
H03 (x1)
H04 (x1)
HOLES DOWN
WALL UPRIGHT - W4L18246
1"x3 3/8"x49" (24x86x1244)
H03
(x1)
WALL RAIL - W4L18247
1"x3 3/8"x21 3/4" (24x86x551)
H04
(x1)
QTY
PART NUMBER DESCRIPTION
5 H100198 WASHER LOCK EXT 8x19 BLK
4
H100378
BOLT WH 5/16x1 3/4 BLK
5 H100379 T-NUT 5/16 BLK
1
H100415
BOLT WH 5/16x3 3/4 BLK
1 3/4 in
[43 mm]
1 3/4 in
[43 mm]
51
