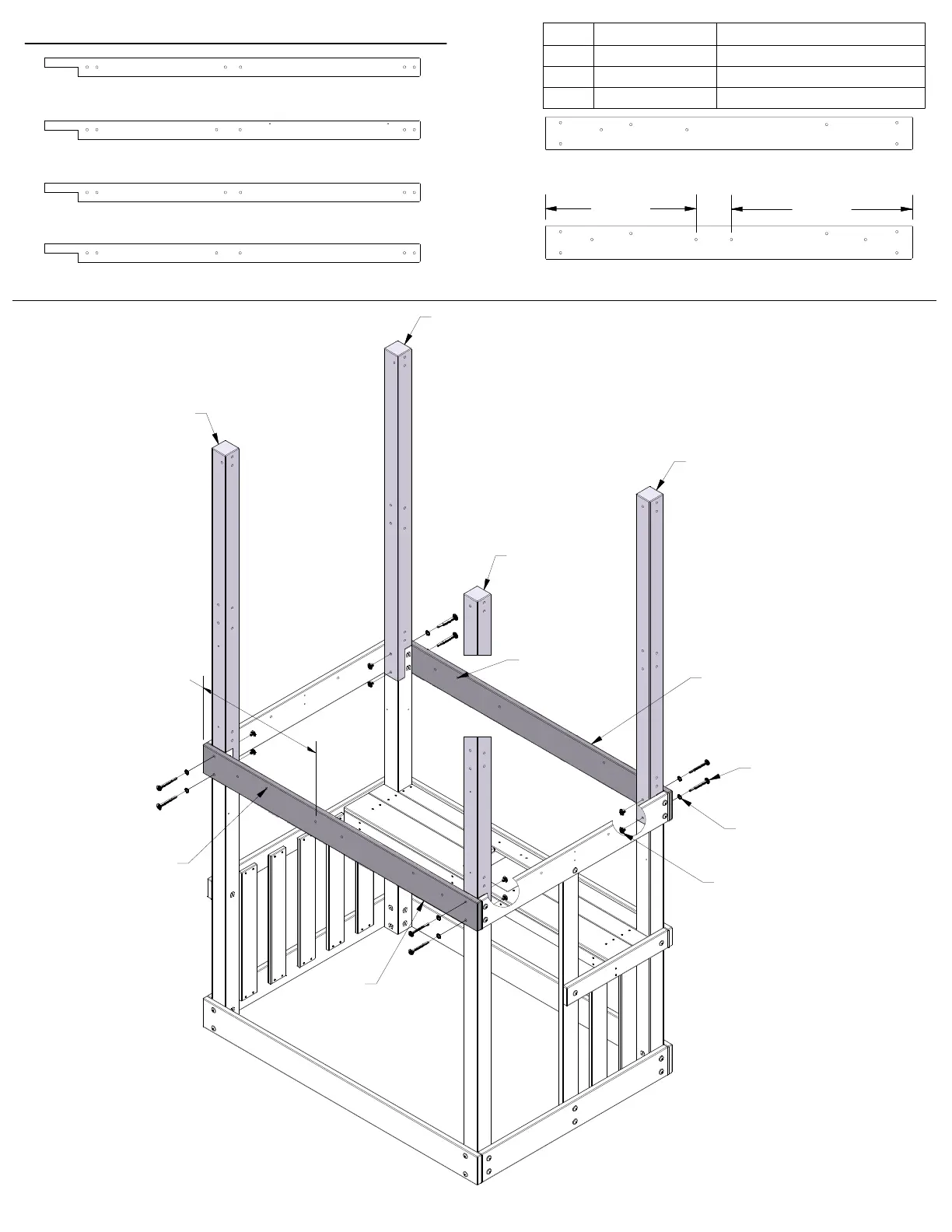

STEP 11 - FORT ASSEMBLY
B07 (x1)
B08 (x1)
B06 (x1)
B05 (x1)
G04 (x1)
G05 (x1)
415 (x8)
BOLT - 3 3/4"
198 (x8)
WASHER - 8x19
379 (x8)
T-NUT - 5/16"
NOTE HOLE
LOCATION
NOTE HOLE
LOCATION
POST - W4L18265
3"x3"x60 3/8" (76x76x1532)
B05
(x1)
POST - W4L18266
3"x3"x60 3/8" (76x76x1532)
B06
(x1)
POST - W4L18267
3"x3"x60 3/8" (76x76x1532)
B07
(x1)
POST - W4L18268
3"x3"x60 3/8" (76x76x1532)
B08
(x1)
FLOOR RAIL - W4L18255
1"x5 1/4"x59" (24x134x1498)
G04
(x1)
FLOOR RAIL - W4L18256
1"x5 1/4"x59" (24x134x1498)
G05
(x1)
QTY
PART NUMBER DESCRIPTION
8 H100198 WASHER LOCK EXT 8x19 BLK
8 H100379
T-NUT 5/16 BLK
8 H100415 BOLT WH 5/16x3 3/4 BLK
24 1/4 in
[616 mm]
29 in
[738 mm]
24 1/4 in
[616 mm]
57
