Bilt Backyard Discovery WHISPERING POINT - Page 60

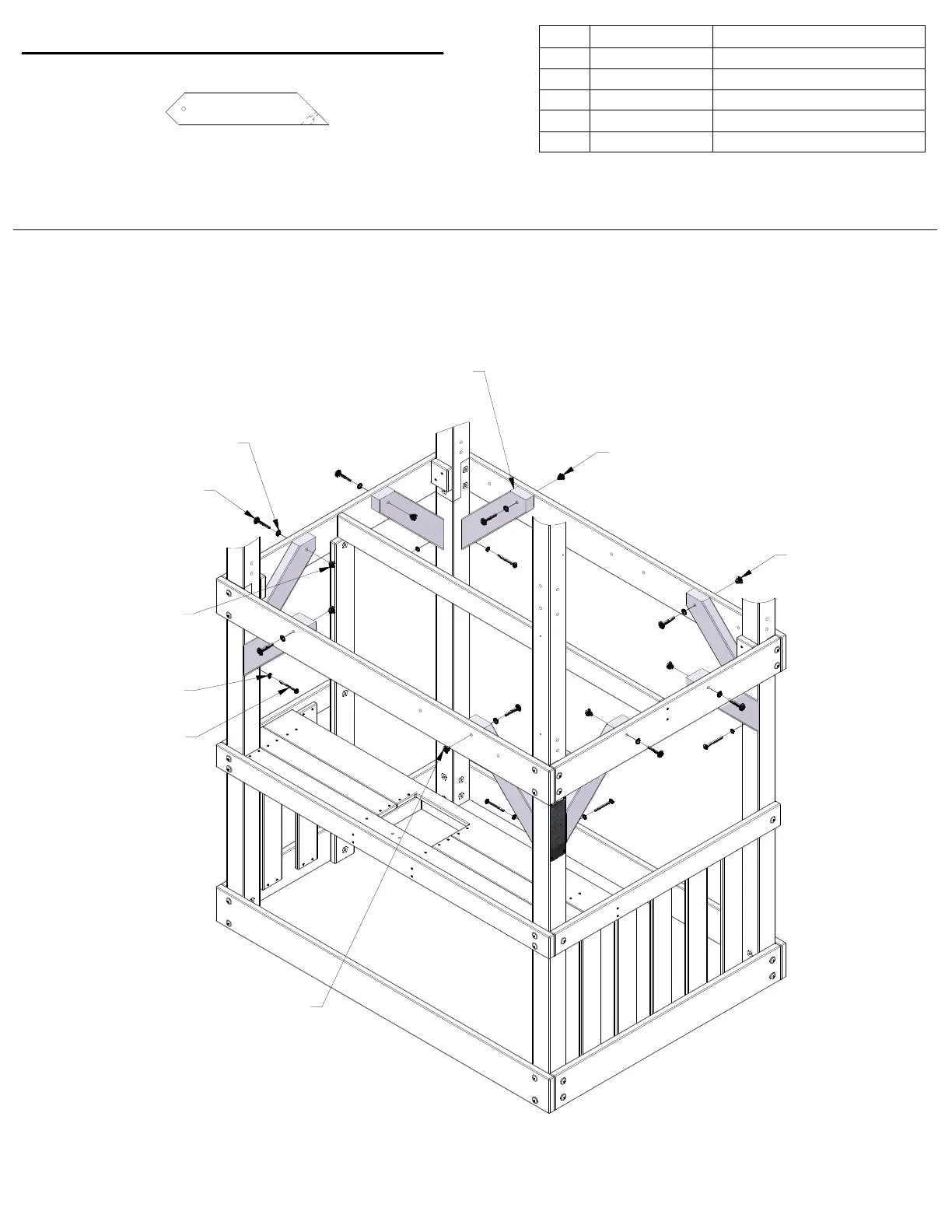

STEP 14 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
8 H100198 WASHER LOCK EXT 8x19 BLK
8 H100205 BOLT WH 5/16x2 1/4 BLK
8 H100379 T-NUT 5/16 BLK
8 H100405 WASHER LOCK EXT 6x15 BLK
8 H100792
LAG SCREW WH 1/4x3 BLK
TIP:
INSTALL T-NUTS IN WOOD FIRST
ANGLE BRACE - W4L18261
1 7/16"x3 3/8"x17 1/2" (36x86x444)
E01
(x8)
205 (x8)
BOLT - 2 1/4"
198 (x8)
WASHER - 8x19
379 (x8)
T-NUT - 5/16"
792 (x8)
LAG SCREW - 3"
405 (x8)
WASHER - 6x15
T-NUT OUTSIDE
T-NUT OUTSIDE
T-NUT OUTSIDE
E01 (x8)
60
