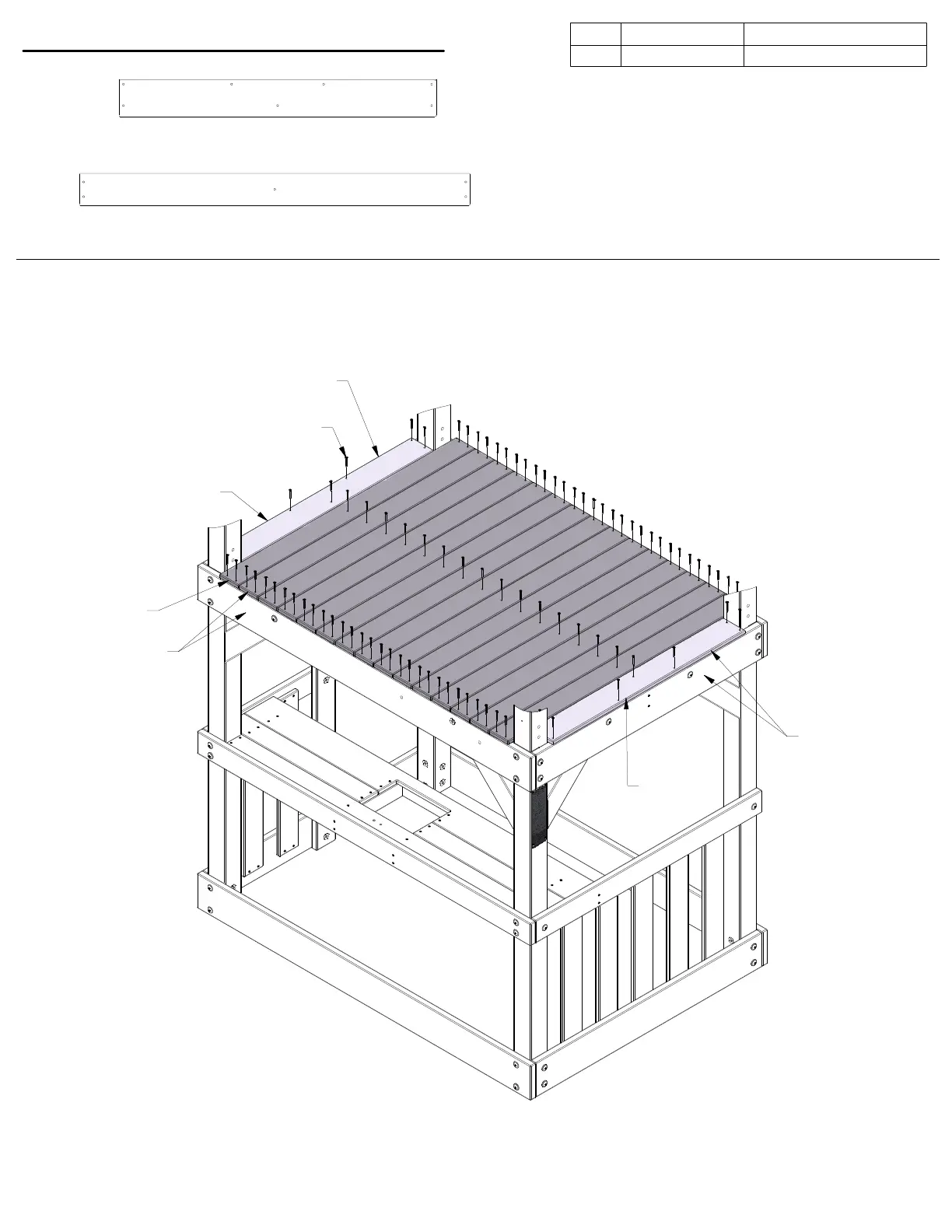

STEP 15 - FORT ASSEMBLY

NOTE:

ENSURE THAT PILOT HOLES ARE ALIGNED

OVER FLOOR JOISTS.

200 (x89)

SCREW - 1 1/2"

Y01 (x1)

M04 (x15)

FLUSH

(BOTH ENDS)

FLUSH

(BOTH SIDES)

START HERE

(EVENLY SPACE)

QTY

PART NUMBER DESCRIPTION

89 H100200 SCREW PFH 8x1 1/2 BLK

FLOOR BOARD - W4L18262

5/8"x3 7/8"x34" (16x100x864)

Y01

(x2)

FLOOR BOARD - W4L18263

5/8"x3 3/8"x41 7/8" (16x86x1065)

M04

(x15)
