Bilt Backyard Discovery WHISPERING POINT - Page 72

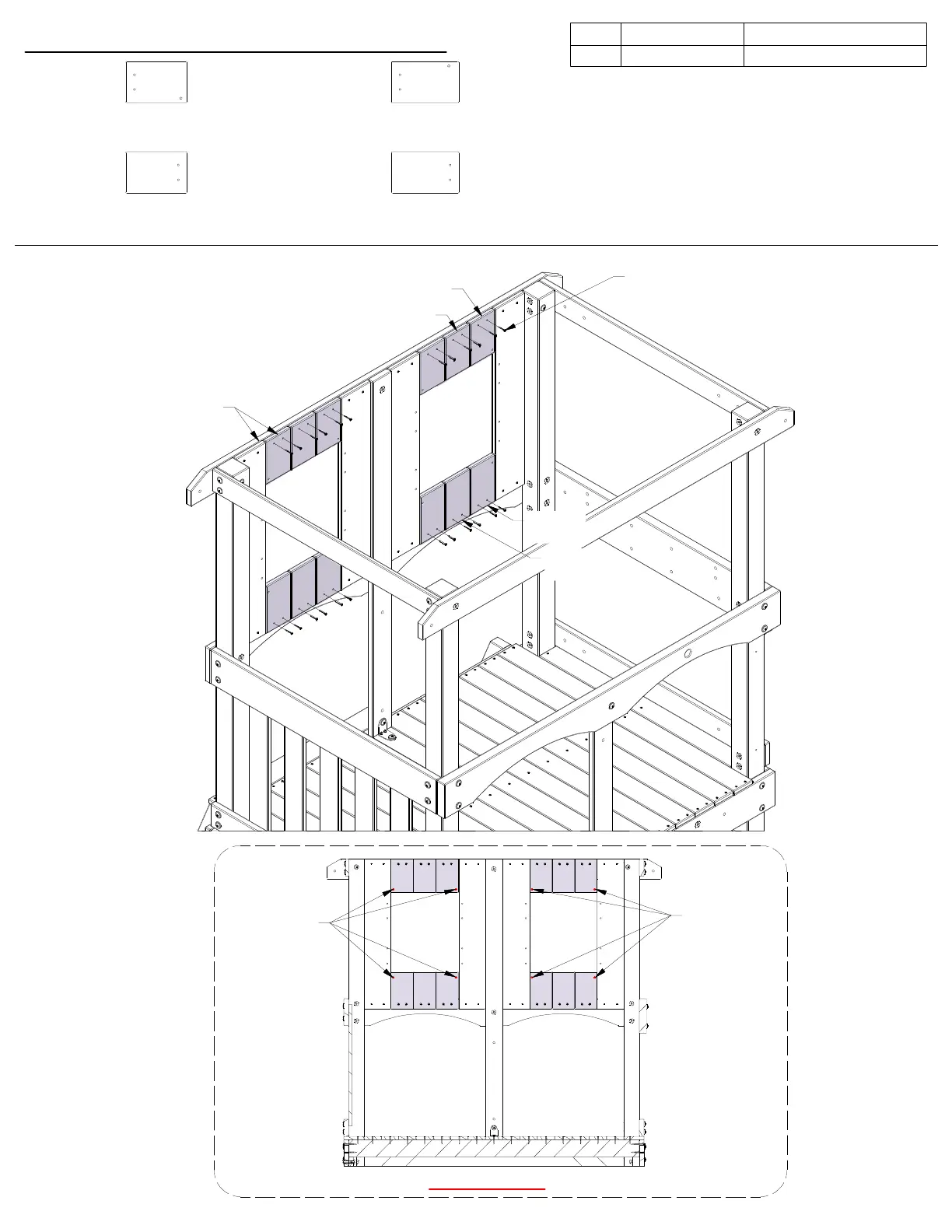

STEP 26 - FORT ASSEMBLY
387 (x24)
SCREW - 1 1/4"
QTY
PART NUMBER DESCRIPTION
24
H100387 SCREW PFH 8x1 1/4 BLK
WALL BOARD - W4L18284
5/8"x4 3/8"x6 5/8" (16x112x167)
L01
(x4)
WALL BOARD - W4L18285
5/8"x4 3/8"x7 1/4" (16x112x184)
L02
(x4)
NOTE HOLE
LOCATIONS
NOTE HOLE
LOCATIONS
INSIDE VIEW
L01 (x4)
L06 (x2)
L02 (x4)
L07 (x2)
FLUSH
WALL BOARD - W4L18239
5/8"x4 3/8"x6 5/8" (16x112x167)
L06
(x2)
WALL BOARD - W4L18281
5/8"x4 3/8"x7 1/4" (16x112x184)
L07
(x2)
72
