Bilt Backyard Discovery WHISPERING POINT - Page 71

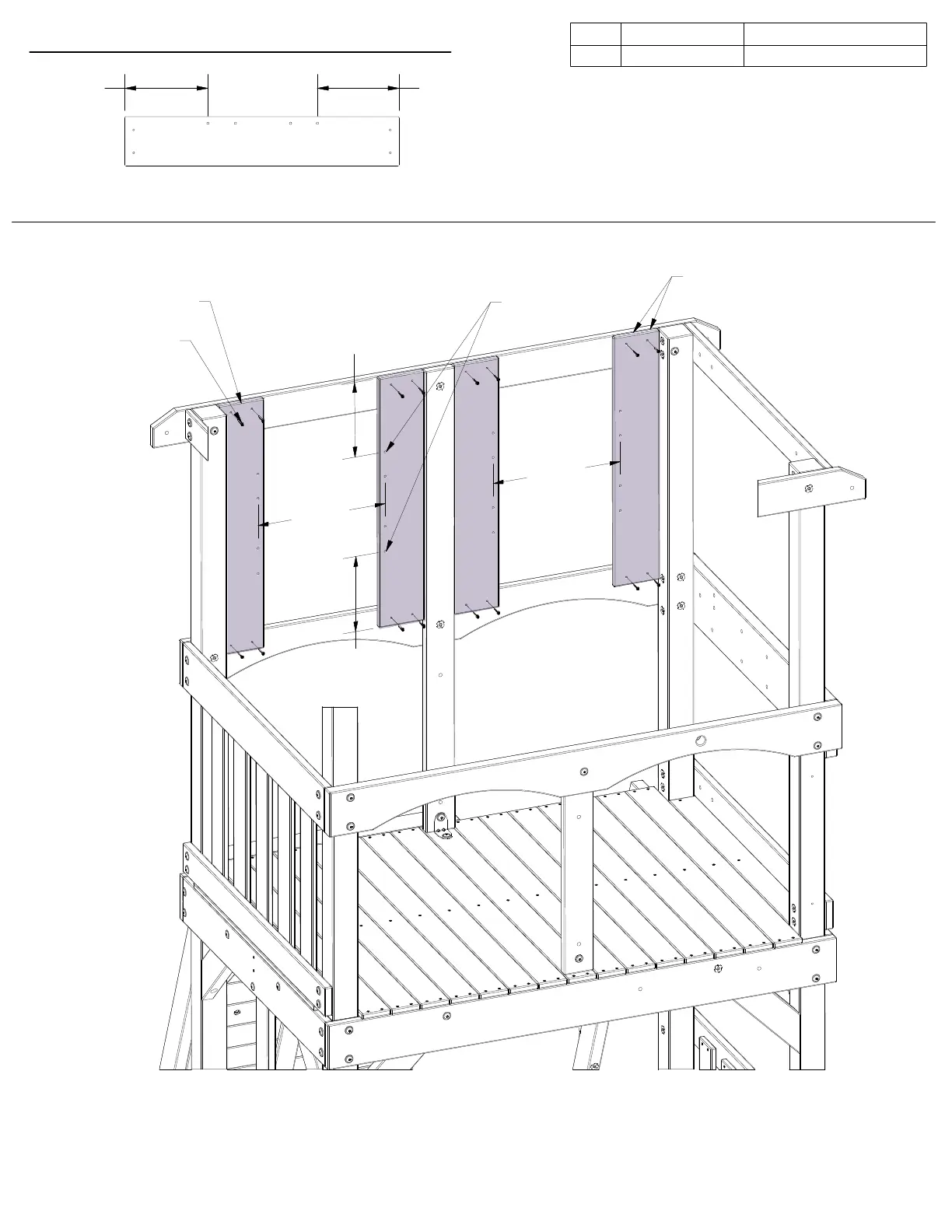

STEP 25 - FORT ASSEMBLY
387 (x16)
SCREW - 1 1/4"
K03 (x4)
NOTE HOLE
LOCATIONS
QTY
PART NUMBER DESCRIPTION
16 H100387 SCREW PFH 8x1 1/4 BLK
WALL RAIL - W4L18283
5/8"x5 1/4"x29 3/8" (16x134x746)
K03
(x4)
8 3/4 in
[222 mm]
8 7/8 in
[226 mm]
8 3/4 in
[222 mm]
8 7/8 in
[226 mm]
T
O
P
FLUSH TOPS
14 3/4 in
[374 mm]
14 3/4 in
[374 mm]
71
