Bilt Backyard Discovery WHISPERING POINT - Page 76

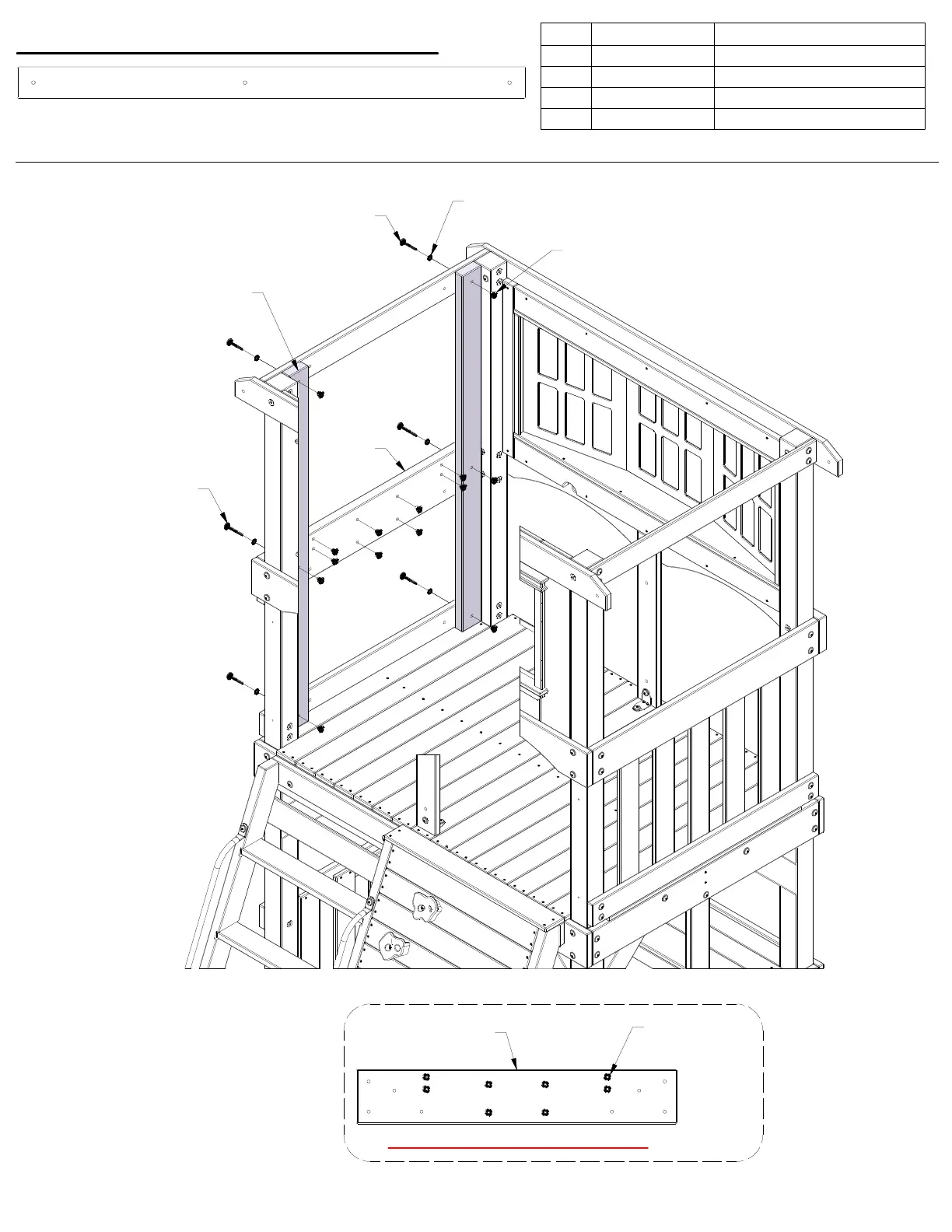

STEP 30 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
4 H100205 BOLT WH 5/16x2 1/4 BLK
2
H100195
BOLT WH 5/16x2 3/4 BLK
6 H100198 WASHER LOCK EXT 8x19 BLK
14
H100379
T-NUT 5/16 BLK
TIP:
INSTALL T-NUTS IN WOOD FIRST
205 (x4)
BOLT - 2 1/4"
379 (x6)
T-NUT - 5/16"
198 (x6)
WASHER - 8x19
195 (x2)
BOLT - 2-3/4
E02 (x2)
WALL BOARD - W4L18287
1 3/8"x3 3/8"x54 3/8" (36x86x1382)
E02
(x2)
C01
C01
T-NUT ASSEMBLY PATTERN
379 (x8)
T-NUT - 5/16"
76
