Bilt Backyard Discovery WHISPERING POINT - Page 77

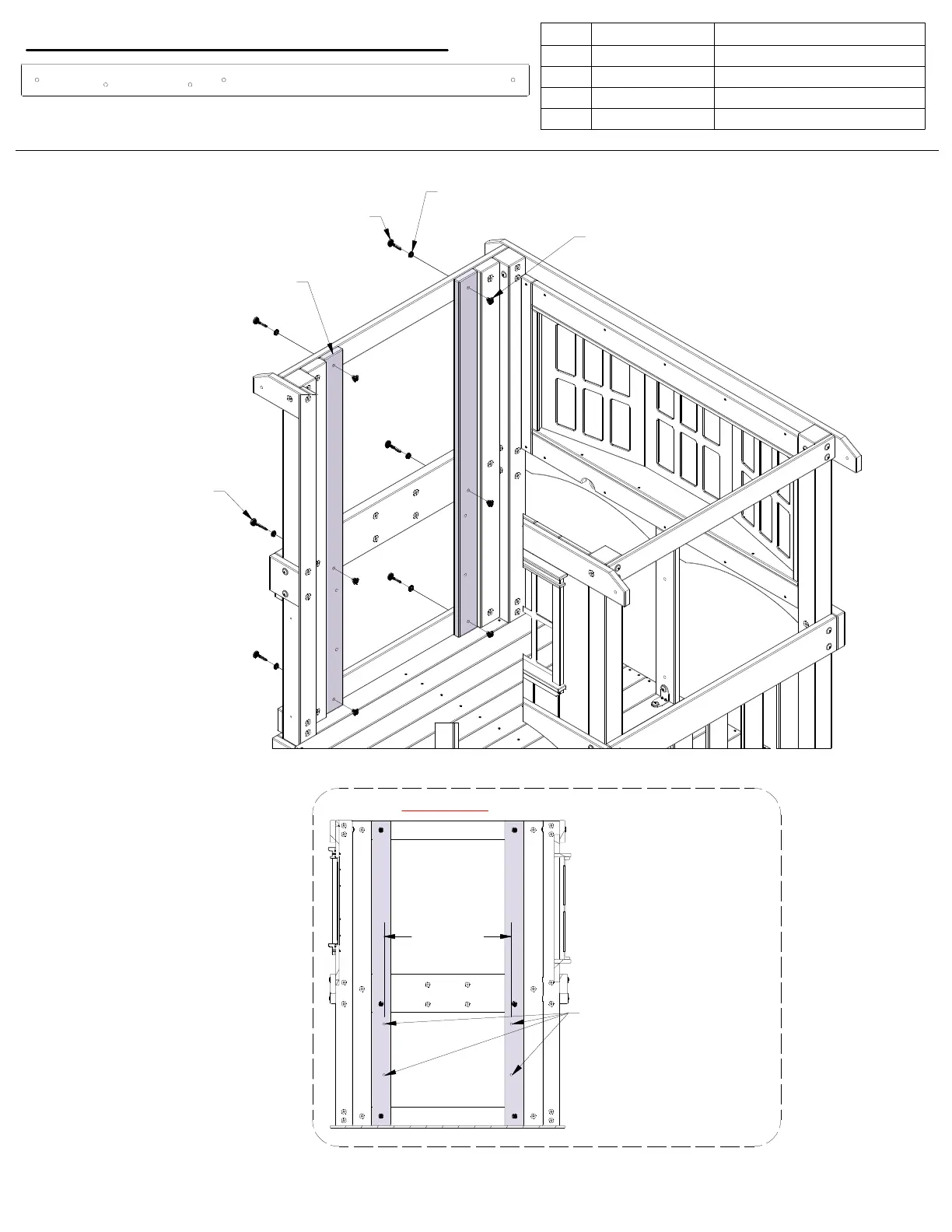

STEP 31 - FORT ASSEMBLY
TIP:
INSTALL T-NUTS IN WOOD FIRST
379 (x6)
T-NUT - 5/16"
198 (x6)
WASHER - 8x19
378 (x4)
BOLT - 1 3/4"
H14 (x2)
205 (x2)
BOLT - 2 1/4"
QTY
PART NUMBER DESCRIPTION
4 H100378 BOLT WH 5/16x1 3/4 BLK
2
H100205
BOLT WH 5/16x2 1/4 BLK
6 H100198 WASHER LOCK EXT 8x19 BLK
6 H100379
T-NUT 5/16 BLK
WALL BOARD - W4L18288
1"x3 3/8"x54 3/8" (24x86x1382)
H14
(x2)
INSIDE VIEW
NOTE HOLE POSITIONS
INWARD WHEN INSTALLED
22 3/4 in
[578 mm]
77
