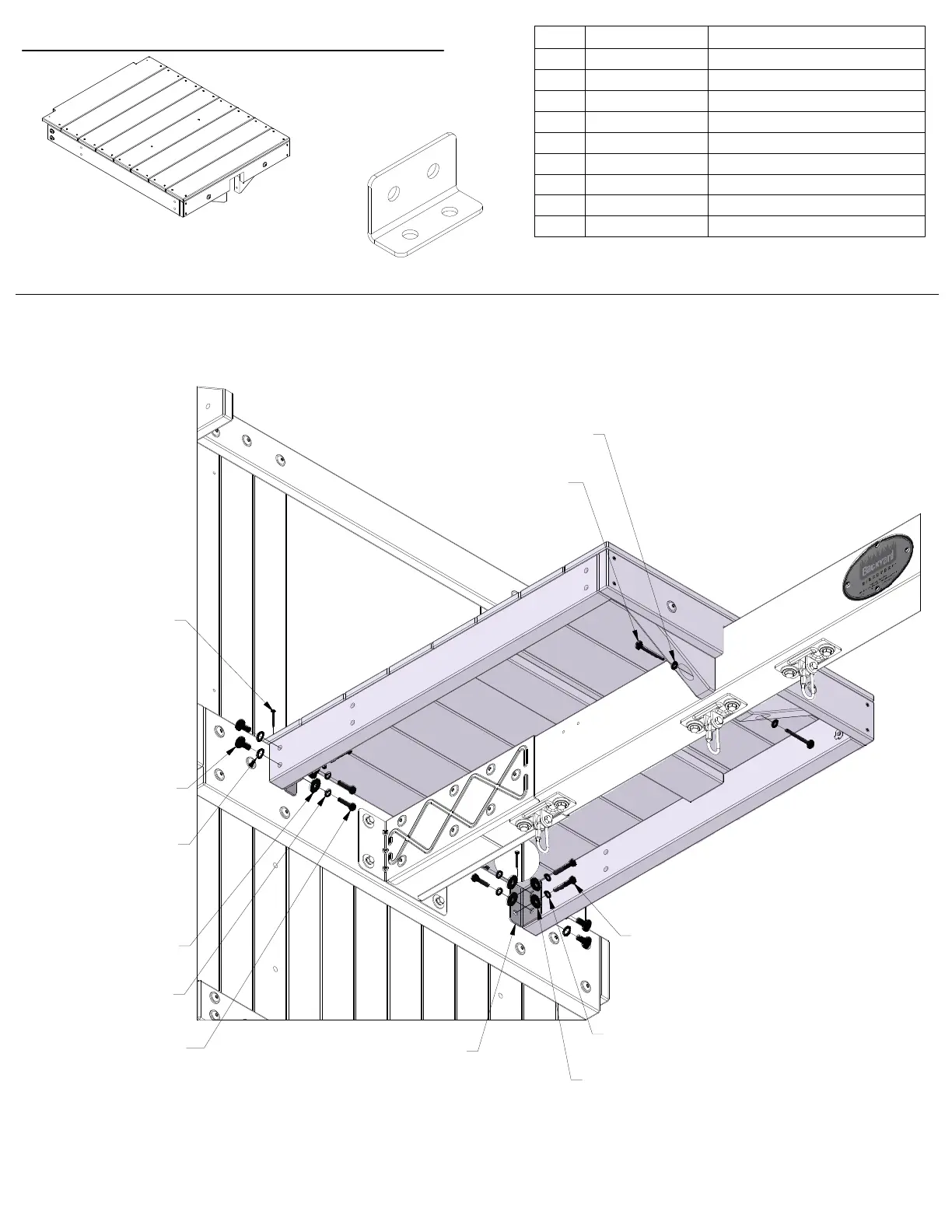

STEP 34 - FORT ASSEMBLY
QTY
PART NUMBER
DESCRIPTION
4
H100192
NUT BARREL WH 7/8 BLK
4 H100199 WASHER LOCK EXT 12x19 BLK
2
H100200
SCREW PFH 8x1 1/2 BLK
2 H100405 WASHER LOCK EXT 6x15 BLK
2
H100456
LAG SCREW 1/4x2 1/2 BLK
8 H100477 WASHER SPLIT 5/16 BLK
8 H100478 WASHER FLAT 8x27 BLK
4 H100481 BOLT HEX 5/16x1 1/4 BLK
4 H100657 BOLT HEX 5/16x1-3/4 BLK
200 (x2)
SCREW - 1 1/2"
478 (x4)
WASHER - 8x27
477 (x4)
WASHER - 5/16
481 (x4)
BOLT - 1 1/4"
456 (x2)
LAG SCREW - 2 1/2"
405 (x2)
WASHER - 6x15
(x1) CROWS NEST DESK ASSEMBLY
855 (x2)
L BRACKET 51x32x82x3.175
L BRACKET 51x32x82x3.175
(x2)
A4M00855
657 (x4)
BOLT - 5/16x1 3/4
199 (x4)
WASHER - 12x19
192 (x4)
NUT BARREL - 7/8"
477 (x4)
WASHER - 5/16
478 (x4)
WASHER - 8x27
To Next Page
