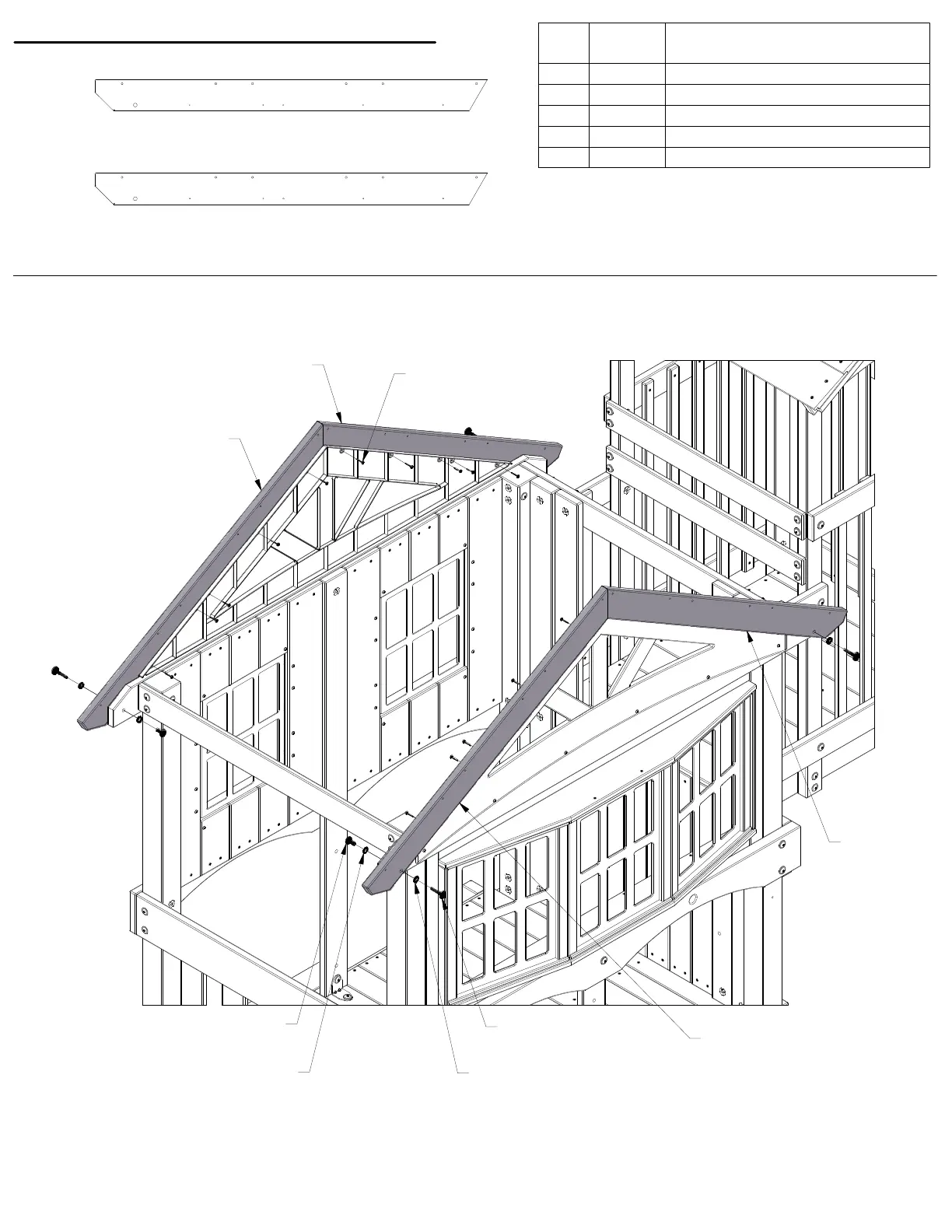

STEP 47 - FORT ASSEMBLY
QTY
PART
NUMBER
DESCRIPTION
4 H100192 NUT BARREL WH 5/16x7/8 BLK
4 H100198 WASHER LOCK EXT 8x19 BLK
4 H100199 WASHER LOCK EXT 12x19 BLK
4 H100378 BOLT WH 5/16x1 3/4 BLK
20 H100797 SCREW PWH 8x1 BLK
TIP:
ALIGN PILOT HOLES
797 (x20)
SCREW - 1"
199 (x4)
WASHER - 12x19
192 (x4)
NUT BARREL - 7/8"
H28 (x1)
H27 (x1)
H27 (x1)
H28 (x1)
LEFT ROOF RAFTER - W4L18323
1"x3 3/8"x42 1/8" (24x86x1069)
H27
(x2)
RIGHT ROOF RAFTER - W4L18324
1"x3 3/8"x42 1/8" (24x86x1069)
H28
(x2)
198 (x4)
WASHER - 8x19
378 (x4)
BOLT - 1 3/4"
To Next Page
