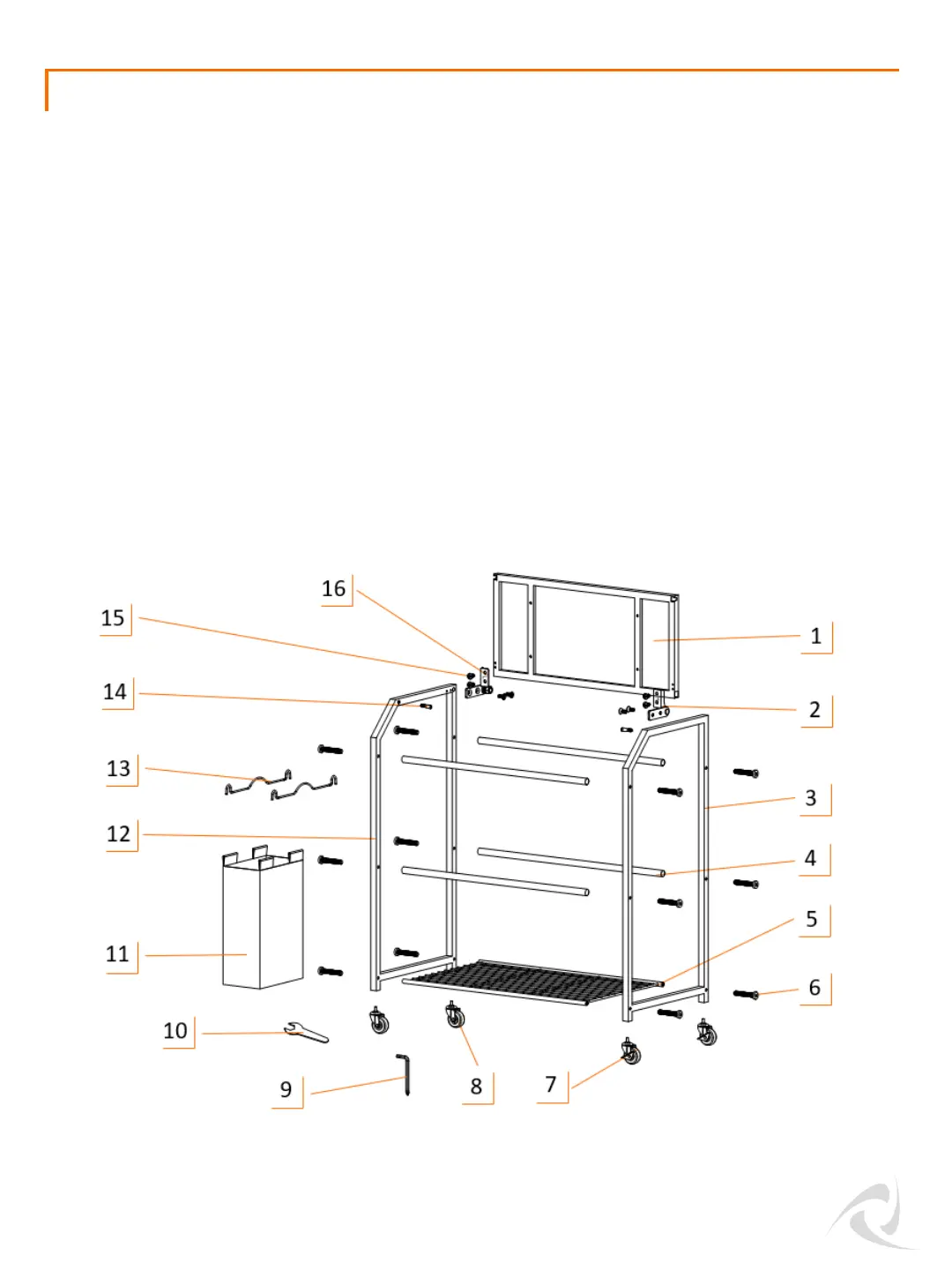

SERVICE PARTS LIST – TBFPDG-2107 / CTBFPDG-2107 (Dark Gray)
TRINITY Customer Service provides the following replacement parts:
# Part Number Description # Part Number Description
1) PDG-03-109-2512
Top
9)
XXX-97-001-0001
Hex Key
2)
XSV-09-019-0002
Right Hinge
10)
XXX-97-002-0005
Wrench
3)
PDG-14-056-3416
Right Side Frame
11)
XGR-24-010-0814
Laundry Bag
4) PDG-13-021-2600
Pole
12) PDG-14-055-3416
Left Side Frame
5) PDG-03-110-2616
Shelf
13)
PDG-05-013-1675
Handle
6)
ZBK-01-002-0635
Screw
14)
XBK-01-049-0424
Shelf Rest
7)
ZSV-99-010-2008
Locking Caster
15)
XBK-01-048-0415
Hinge Screw
8) ZSV-99-009-2008
Non
-locking Caster
16) XSV-09-019-0001
Left Hinge
© 2023 TRINITY - 800.985.5506
7
