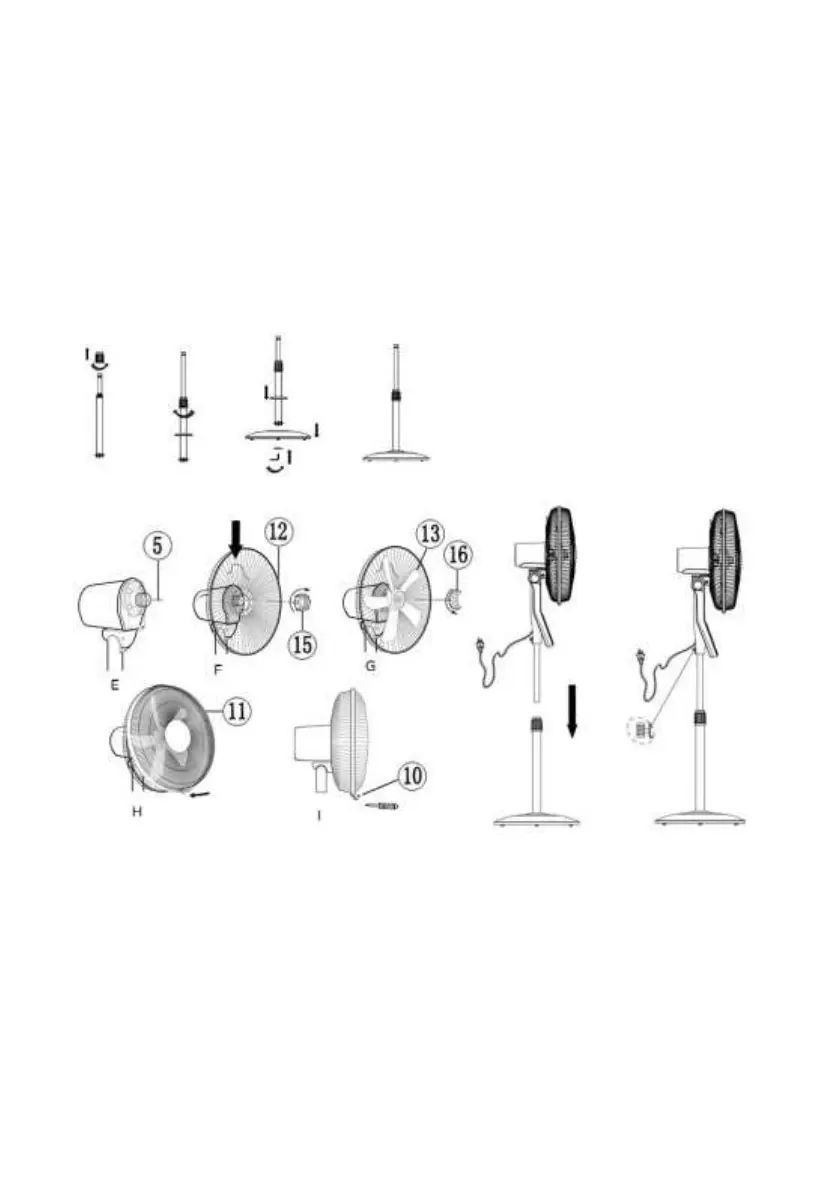

D. Unscrew the ring nut (15) and the ring nut (16) (turn clockwise) from the motor
body.
E. Insert the rear grill (12) into the motor body, make sure the handle is at the top
and lock it using the ring nut (15).
F. Insert the propeller (13) onto the drive shaft (5) and lock it with the ring nut
(16) (turn counter clockwise and tighten).
G. To fasten the front grill, it is best to place the main unit on a smooth even floor.
Couple the front grill (11) to the rear (12) and hold in place with plastic ring, (a
fixing screw is good at the bottom) and secure fastening by tightening screw
(10).
H. At the end of the operation, check that the protective grills are firmly coupled
and attached to the motor.
