USE
Warning: The fan can only be used if properly assembled in good condition.
The fan functions are operated with both the keypad of the control panel and the
remote control which must be pointed at the front (maximum distance of about
4m) towards the control panel.

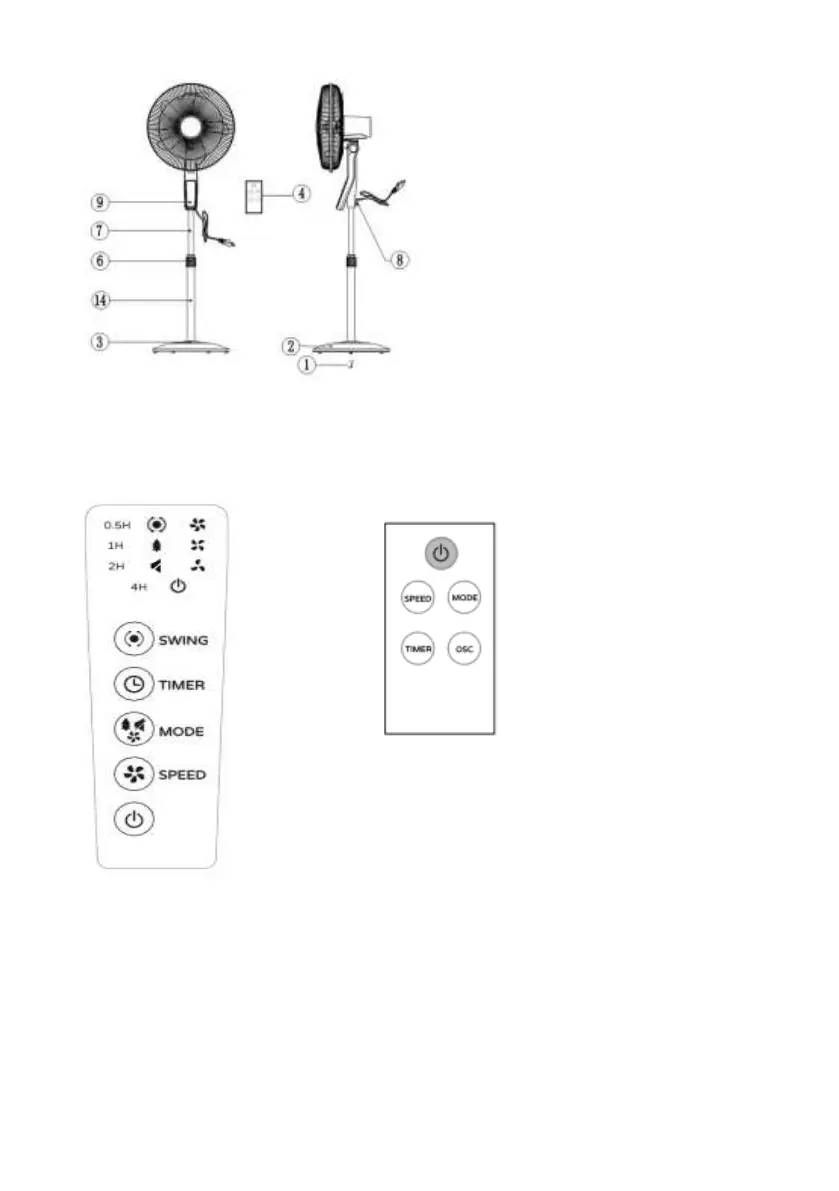

1) "L" screw
2) Base with counterweight
3) Ring
4) Remote controller
5) Drive shaft
6) Rod fixing ring nut
7) Adjustable hose
8) Floor fixing screw
9) Control panel
10) Plastic ring screw
11) Front grill / protective
screen
12) Rear grill
13) Propeller
14) Column
15) Rear grill fixing ring nut
16) Fan fixing ring nut
