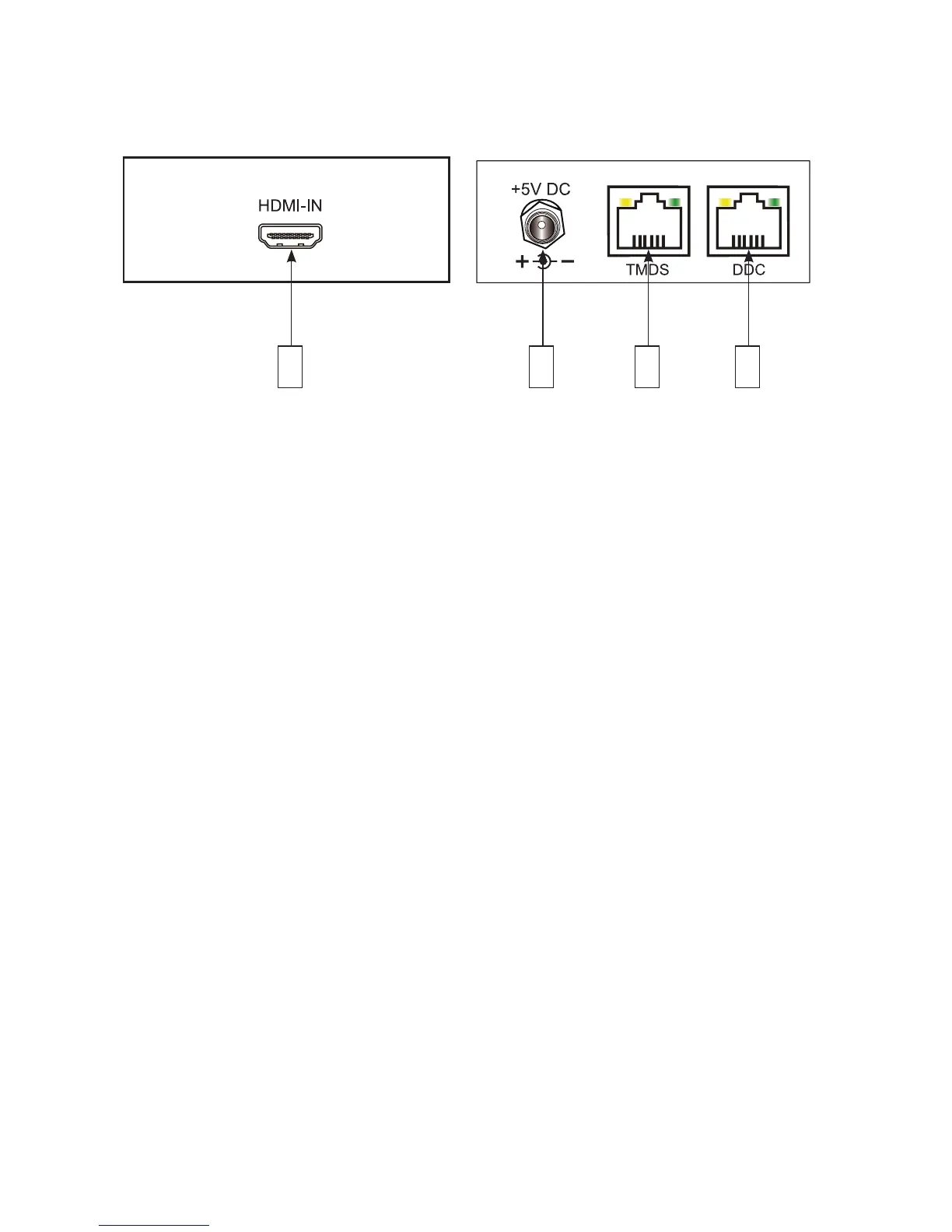

1. HDMI IN: Connect to a HDMI source with a HDMI male-to-male cable
2. Latch-locking power jack: Connect to 5V DC power supply.
3. TMDS: Transmission Minimized Distance Signal (Audio/Video)
4. DDC: Display Data Channel (Data)
TRANSMITTER
NOTE: Transmission distance up to 200 feet at 1080i on Cat6, 165 feet at 1080p
on Cat6, and 130 feet at 1080p on Cat5e (24-Bit).
1 2 3 4
