8

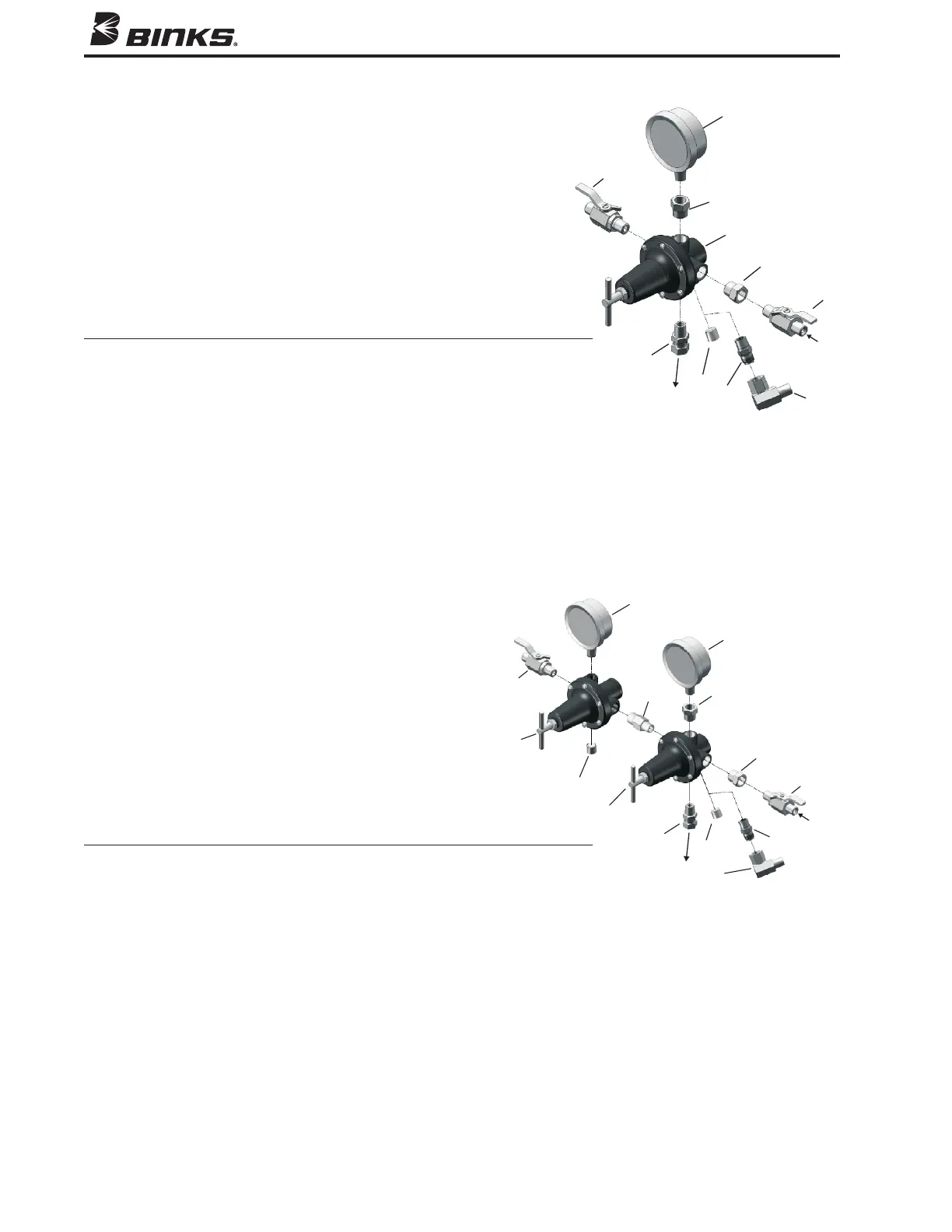

5/10/15-GALLON GALVANIZED TANK ASSEMBLIES – AIR CONTROL
SINGLE REGULATOR AIR CONTROL
Control tank pressure only.
85-470 for non-agitated tanks
85-471 for agitated tanks
*Items with an asterisk are for use with an agitator.
1
2
2
4
3
6
3
7
*
5
TO TANK
AIR IN
8
*
ITEM
NO.
PART
NO. DESCRIPTION 85-470 85-471
1 + HAR-511 AIR REGULATOR 1 1
2 • --------- BUSHING-STL-PLTD – 3/8 (m) x 1/4 (f) 2 2
3 VA-542 BALL VALVE 2 2
4 83-1290 GAUGE – 150 PSI 1 1
5 SSP-8217-ZN SWIVEL ADAPTER 1 1
6 • --------- 1/4 NPT PLUG (SUPPLIED W/ REGULATOR) 1 —
7 H-2008 NIPPLE 1/4 NPS x 1/4 NPT — 1
8 SSP-30-ZN SWIVEL ELBOW – 1/4 NPS(m) x 1/4 NPS (sw) — 1
• Purchase locally
+ Refer to 77-2781 for regulator service parts
DOUBLE REGULATOR AIR CONTROL
Control tank pressure and spray gun atomization pressure.
85-472 for non-agitated tanks
85-473 for agitated tanks
*Items with an asterisk are for use with an agitator.
1
8
6
3
3
2
2
4
5
6
7
9
10*
11*
TO TANK
AIR IN
ITEM
NO.
PART
NO. DESCRIPTION 85-472 85-473
1 + HAR-511 AIR REGULATOR 1 1
2 • --------- BUSHING-STL-PLTD – 3/8 (m) x 1/4 (f) 2 2
3 VA-542 BALL VALVE 2 2
4 83-1290 GAUGE - 150 PSI 1 1
5 SSP-8217-ZN SWIVEL ADAPTER 1 1
6 • --------- 1/4 NPT PLUG (SUPPLIED W/ REGULATOR) 2 1
7 83-4233 D.M. NIPPLE 1/4 x 3/8 1 1
8 # HAR-507 AIR REGULATOR 1 1
9 83-1355 GAUGE - 100 PSI 1 1
10 H-2008 NIPPLE 1/4 NPS x 1/4 NPT — 1
11 SSP-30-ZN SWIVEL ELBOW – 1/4 NPS(m) x 1/4 NPS (sw) — 1
• Purchase locally
+ Refer to 77-2781 for regulator service parts
# Refer to SBBI-6-147 for regulator service parts
