Page 11
© ITW Inc 2007
Ref.
No.
Replacement
Part No.
Description Individual
Parts Req.
19 ——--
Street Elbow 1/4”(M)
1/4”NPT(F)
1
20 H-2008 Nipple 1/4” NPS(M) 2
21 HAV-500 Air Adjusting Valve 1
22 HA-57001 Hose assembly 1
23 ——- Service Tee 1/4” 1
32A KK-4991 Agitator Kit 1
33 QMS-428
Motor Assembly (incl parts
#4 to 18). Use #1, 2 & 3
from old motor.
1
34 ——- Air Motor Adaptor 1
34A ——- Set Screw (1/4”-20 x 1/4”) 1
* 37 ——– End Cap Gasket 1
38 PT-58 Bearing 1
39 ——– Screw (1/4”-28 x 1/2”) 12
40 ——– Front Plate 1
* 41 PT-59-1-K10 End Plate Gasket 2
42 QS-189-1-K10 Dowel Pin (Kit of 10) 4
43 ——– Body 1
*44 ——– Vane 4
**45 ——– Rotor Assembly 1
46 ——– End Plate 1
47 PT-56 Shaft Seal 1
#49 ——-
Set Screw (1/4”-20 x 1/4”
S.S)
2
50 KK-5041 Shaft Seal Kit 1
50A ——- Shaft Seal 1
50B ——- Retainer 1
#51 ——- Shaft Coupling 1
54 QMS-73 Shaft SS 1
55 QMS-448-CE Propeller Assy 1
56 ——– Propeller 1
57 350-401 Muffler Assembly 1
58 ——– Strainer Cap 1
♦59
——– Screen 2
♦*60
——– Felt 1
61 ——– Body 1
63 QN-97 Handle 1
64 QMG-18 End Cap 1
65 SSG-8184-K2 O Ring (Kit of 2) 1
* Parts included in KK-5001-1 Air Motor Repair Kit
♦ Ref. No. (59) 2 ea. & Ref. No. (60) 4 ea. Included in KK-5006
Strainer Screen & Felt kit
** Not available separately, order (33) QMS-428

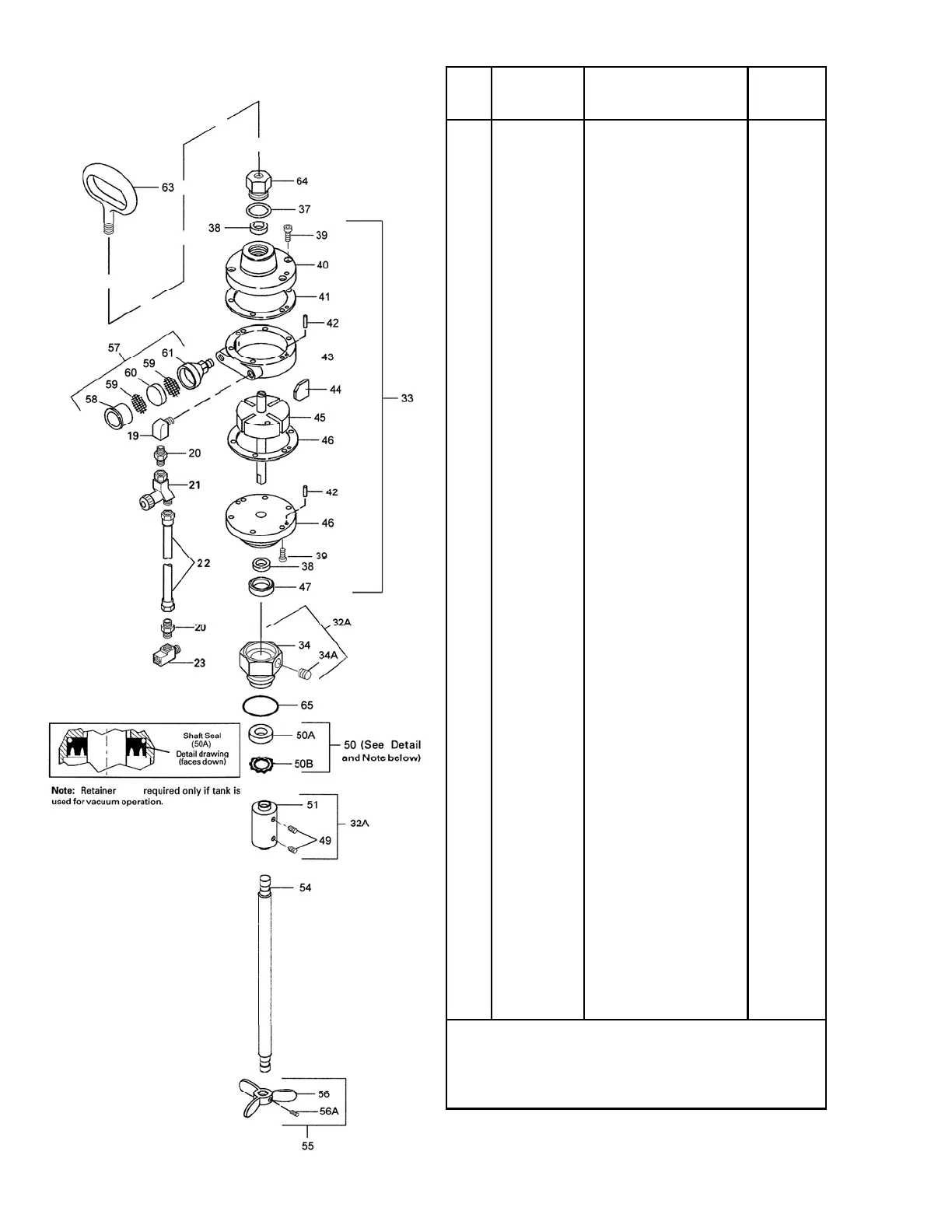

Parts list for QMS-430-CE
Fig 9
